Technical Overview
Overall Appliance Dimensions (HxWxD) (in)
1 49/64" x 29 17/32" x 20 15/32"

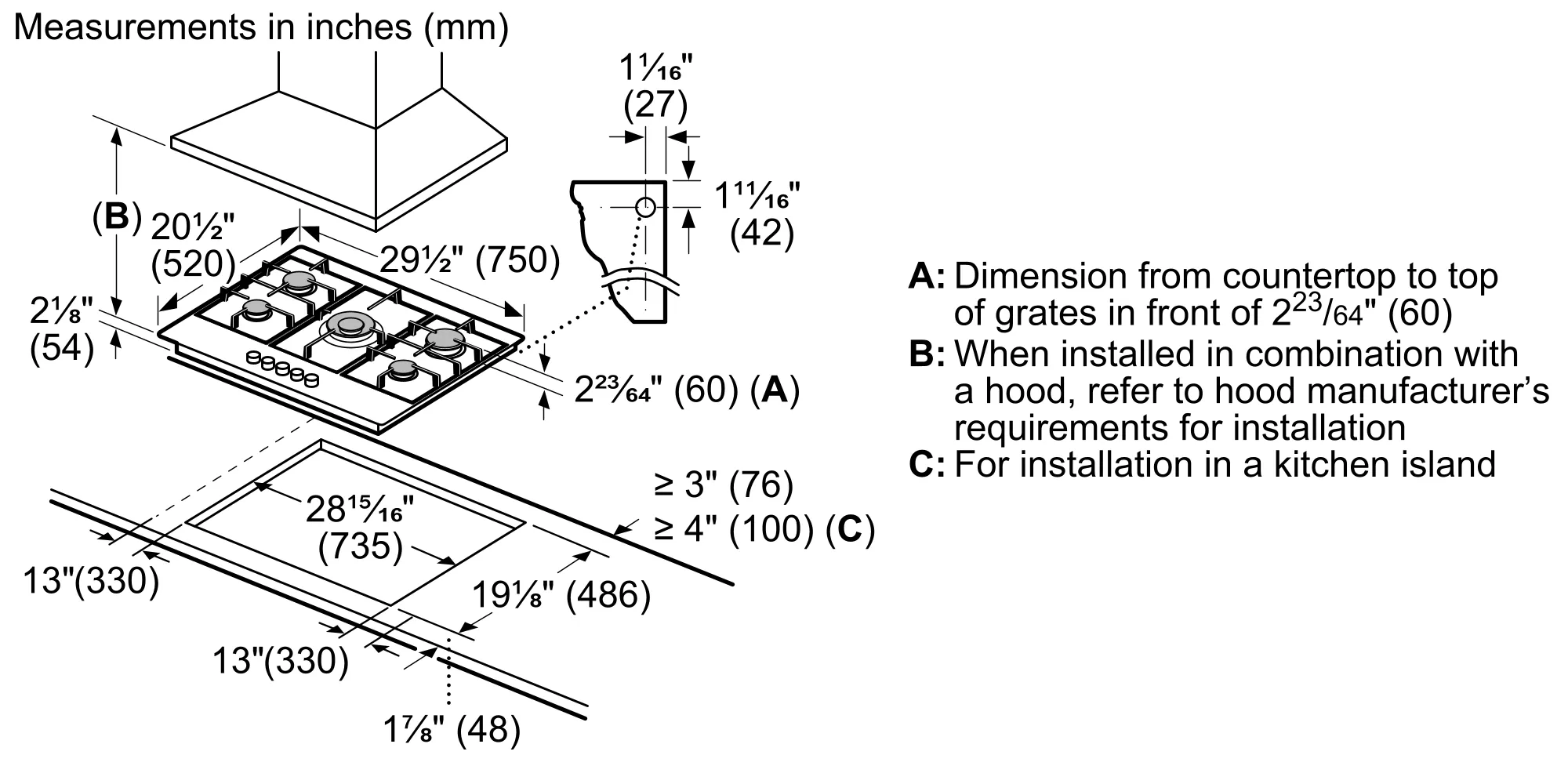

Required Cutout Size (HxWxD) (in)
1 49/64" x 28 15/16'' x 19 9/64"
Highlights
Specifications
Total NG BTUs
42700 Btu
Total LP BTUs
41400 Btu
ExtraLow® Burners
No
Overall Appliance Dimensions (HxWxD) (in)
1 49/64" x 29 17/32" x 20 15/32"
Required Cutout Size (HxWxD) (in)
1 49/64" x 28 15/16'' x 19 9/64"
Gas type preset
Natural gas 15 mbar (USA)
Alternative Gas Type (Nozzle Set Included)
Liquid gas 27,5 mbar (USA)
Plug Type
120V-3 prong
Power Cord Length
40 IN
Fuse protection
15 A
Volts
120 V
Product Packaging Dimensions (HxWxD)
5 45/64" x 31 7/32" x 23 1/2"
Surface Materials
Stainless Steel
Grate Materials
Cast Iron with Rubber Feet
Location of Control Panel
Front
Number of Gas Burners
5
OptiSim® Burner
No
Sealed Burners
No
ExtraLow® Burners
No
Special Features
Simmer Cap
Griddle
No
ADA Compliant (When Installed to ADA requirements)
No
Home Connect™
No
Included Accessories
1 x Simmer cap
