Serie | 8 60 cm, Hob, Ceramic

PRY6A6B70


The ceramic glass gas hob with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels.

Highlights

Designed to stay clean: dishwasher-proof pan supports.

Spending ages cleaning the gas hob? From now on, you can take that chore off your list! Bosch gas hobs have lots of benefits, and one of them is easy cleaning. Thanks to smooth, high quality surfaces our pan supports are now dishwasher-proof. We have optimized the surface of the pan supports so that you don’t have to worry about corrosion, cracks or discolouring when cleaning them in the dishwasher.

Performance

We didn’t discover fire, but we’ve taken it to a new level. Level nine, to be precise.

Gas hobs with FlameSelect are equipped with nine precisely defined power levels, which let you adjust the required heat easily and reliably. For simply perfect cooking results.

Additional product information

Design:
  • Ceramic
Comfort and Safety:
  • Step valve 9 steps
  • Sword Knobs
  • Ignition via control knobs
  • Cast iron pan supports
  • yes
Power and size:
  • 3 PC
  • 3 PC and 1 PC
  • 3gas+1electro
  • Left rear: Economy burner 1.1 KW
  • Right rear: High-speed burner 2.8 KW
  • Left front: Dual-circuit zone 0.7 KW, 1.8 KW
  • Right front: Standard burner 1.9 KW
Environment+safety:
  • Flame failure safety device
  • 4-fold
  • Factory set for connection to mains gas
Measurements
  • 100 cm with plug
Accossories
  • LPG jets included. Connection to 28-30/37 mbar bottled gas
Additional product information
General
Energy input Mixed
Type of control setting and signalling devices sword knobs
Features Flame select
Energy consumption of hob 193.2
Energy efficiency of hob 60.5 %
Connectivity
Home Connect
Construction type
Color of frame Alu, brushed, Black
Color of surface Alu, brushed, Black
Construction type Built-in
Number of electric plates 0
Number of electric cooking zones 4
Type of frame Facette fro+rear,side profiles
Number of gas burners 3
Number of halogen plates 0
Installation typology Built-in
Type of pan support Elongated cast iron pan support
Total number of positions that can be used at the same time 3
Number of radiant plates 0
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 45 x 606 x 527 mm
Net weight (kg) 11.8 kg
Cooking zone 1
Dimension of heating element (mm) 180 ; 120 mm
Location of 1st heating element front left
Type of heating element Radiant heating
Energy consumption of heating element 193.2
Cooking zone 2
Location of 2nd heating element center left
Cooking zone 3
Location of 3rd heating element back left
Type of 3rd heating element Gas
Cooking zone 4
Location of 4th heating element middle back
Cooking zone 5
Location of 5th heating element back right
Type of 5th heating element Gas
Energy efficiency of 5th heating element 60.0 %
Cooking zone 6
Location of 6th heating element center right
Cooking zone 7
Location of 7th heating element front right
Type of 7th heating element Gas
Cooking zone 8
Location of 8th heating element front middle / central
Cooking zone 9
Location of 9th heating element front centre/cent
Safety
Type of safety device for gas Electromagnetic for each burner
Power on indicator
Residual heat indicator without
Main on/off switch
Connection
Length electrical supply cord (cm) 100 cm
Electrical connection rating (W) 1,800 W
Energy input Mixed
Frequency (Hz) 50; 60 Hz
Gas connection rear, right
Gas connection rating (W) 5,800 W

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

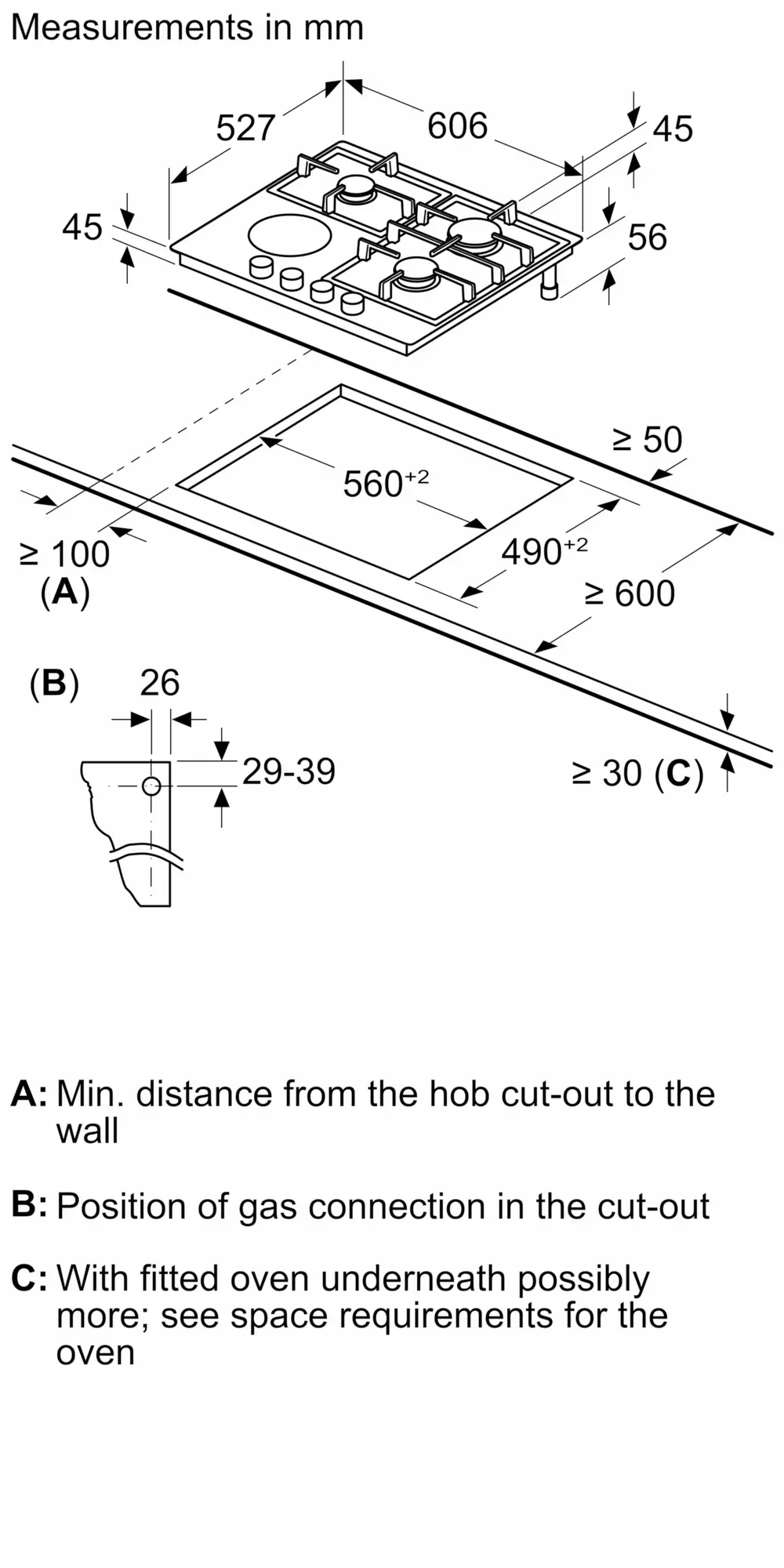

Dimensional Drawings
