Serie | 4 Chimney hood

DWG66CD50Z


The wall-mounted chimney hood: mount it on the wall, giving you complete freedom in your kitchen planning.

Highlights

excellent results

Effective extraction of cooking smells with power boost

Thanks to power boost, your hood can handle even strong cooking smells and boosts the extraction rate at the touch of a button.

Performance

Metal grease filter

Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.

Additional product information

Technical information:
  • Suitable for ducted or recirculating operation
  • push button controls,
  • 3 speed + intensive operation
  • Removable metal grease filters, dishwasher safe
  • Extraction rate exhaust air according to EN 61591:
    max. normal use 620 m³/h, intensive 700 m³/h
  • Energy Efficiency Class: B*
  • Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
  • Power rating: 252 W
  • Dimensions exhaust air (HxWxD): 778-938 x 598 x 520 mm
  • Dimensions recirculating (HxWxD): 778-1048 x 598 x 520 mm
Additional product information
General
Width 60 cm
Depth of the product 520 mm
Construction type Built-in
Operating Mode Convertible
Max. air recirculation (m³/h) 415
Sound pressure max. normal 54
Type of control setting and signalling devices LED, Low-lift pushbuttons
Energy efficiency class B
Total annual energy consumption 83.3
Connectivity
Home Connect
Construction type
Diameter of air outlet (mm) 150 mm
Colour Stainless steel
Color chimney Stainless steel
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Wall-mounted
Material of the body Glass, Stainless steel
Material chimney Stainless steel
Number of motors 1
Operating Mode Convertible
Typology Chimney
Connection
Connection rating (W) 252 W
Length electrical supply cord (cm) 100 cm
Frequency (Hz) 50-60 Hz
Total power of the lamps (W) 2 W
Total power of the motors (W) 250 W
Voltage (V) 220-240 V

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

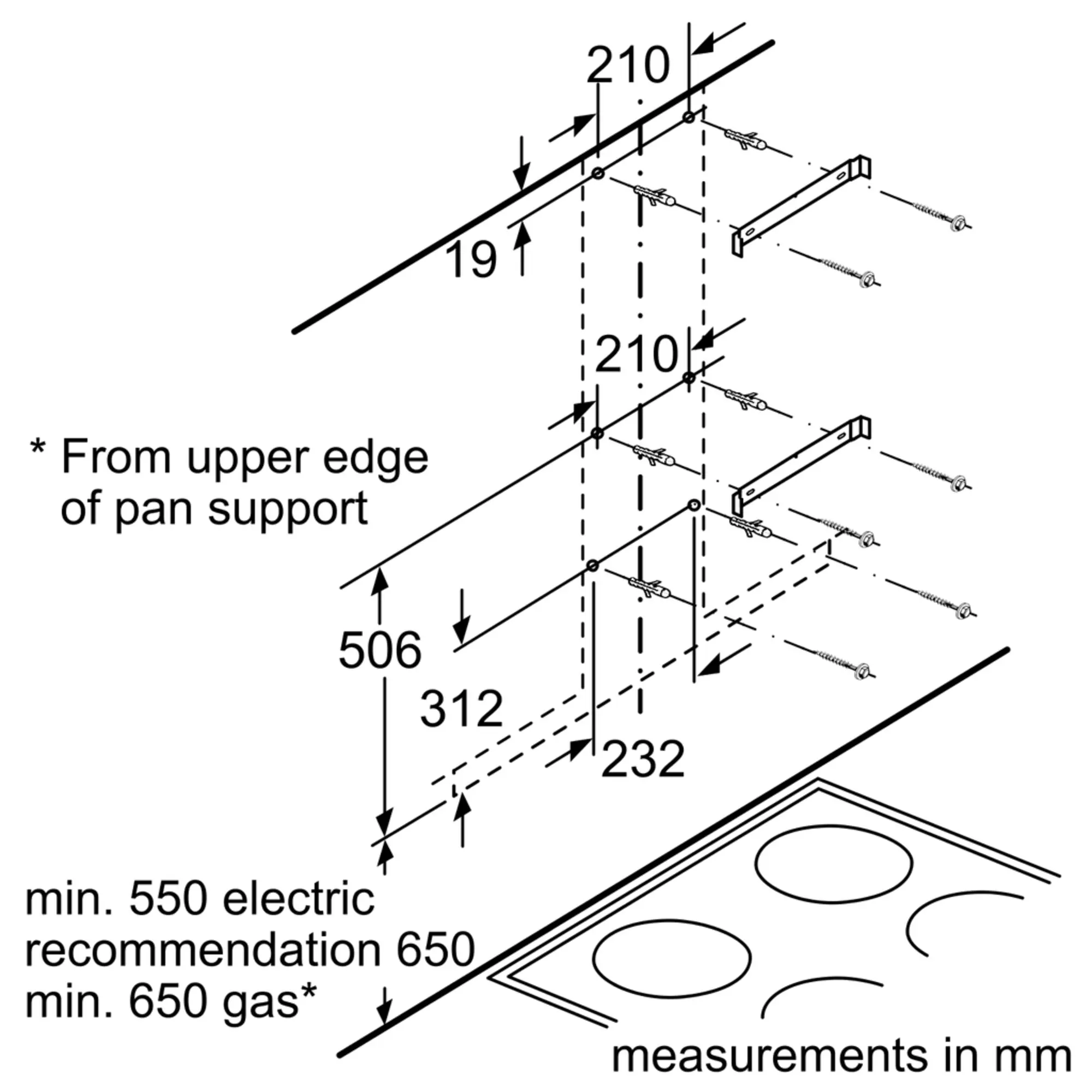

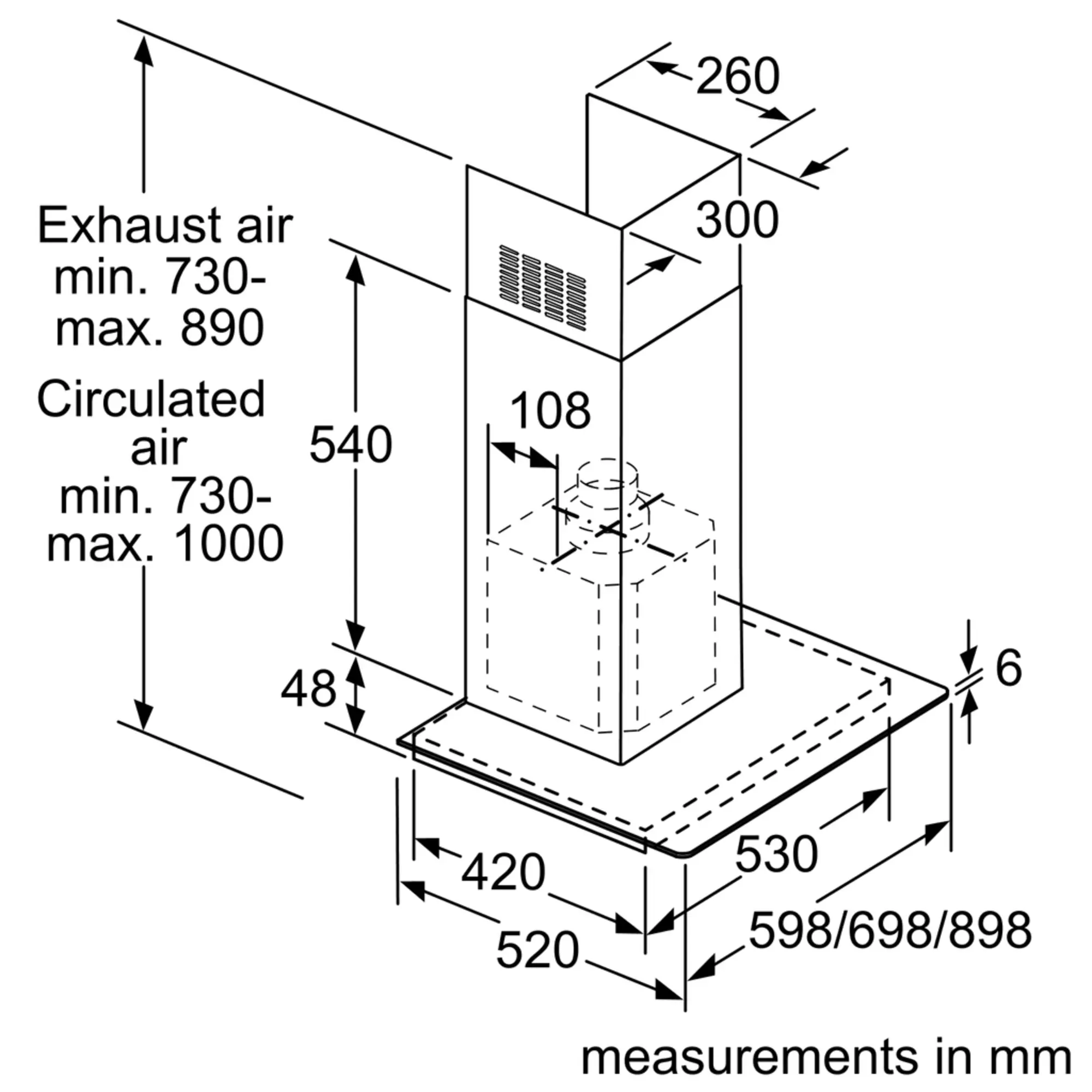

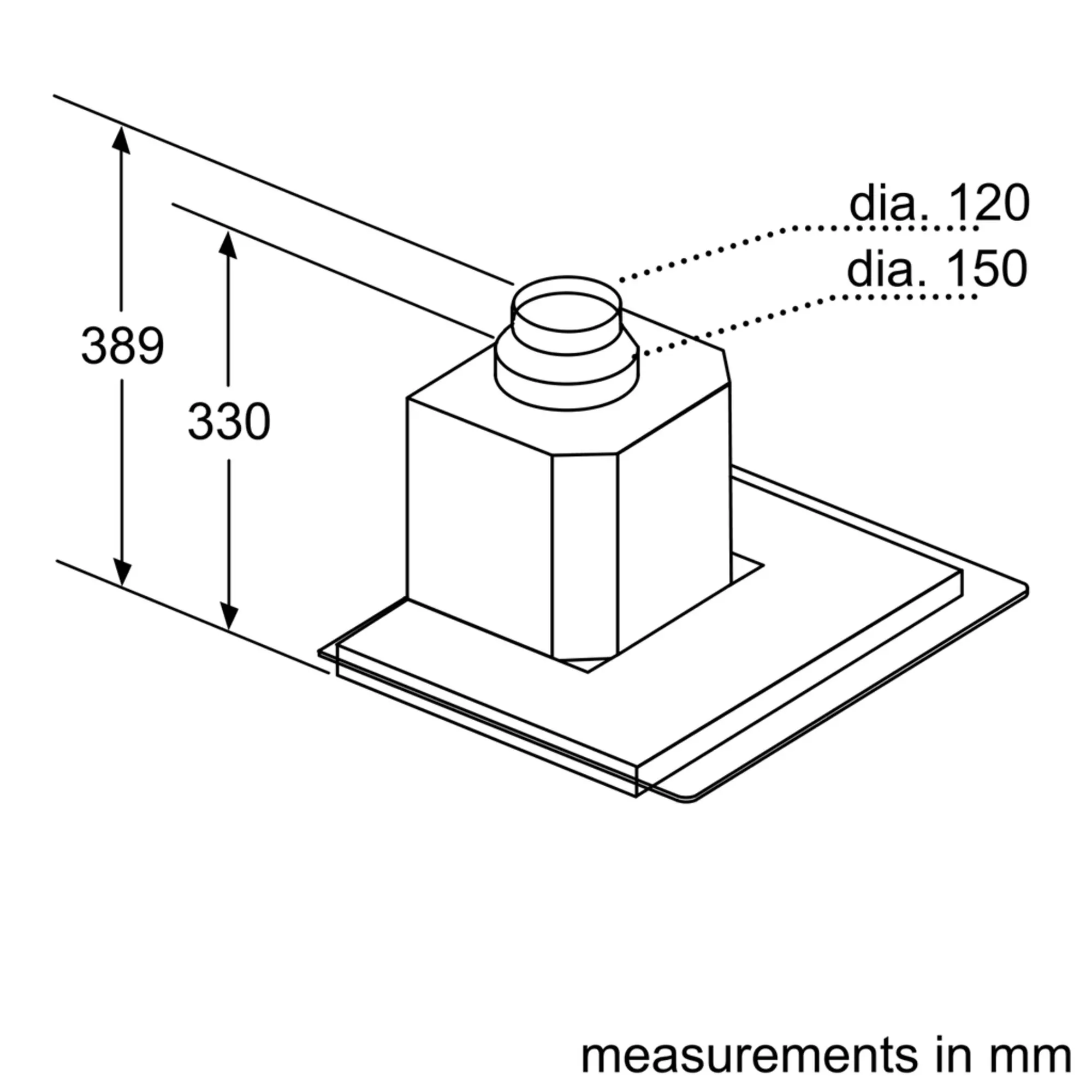

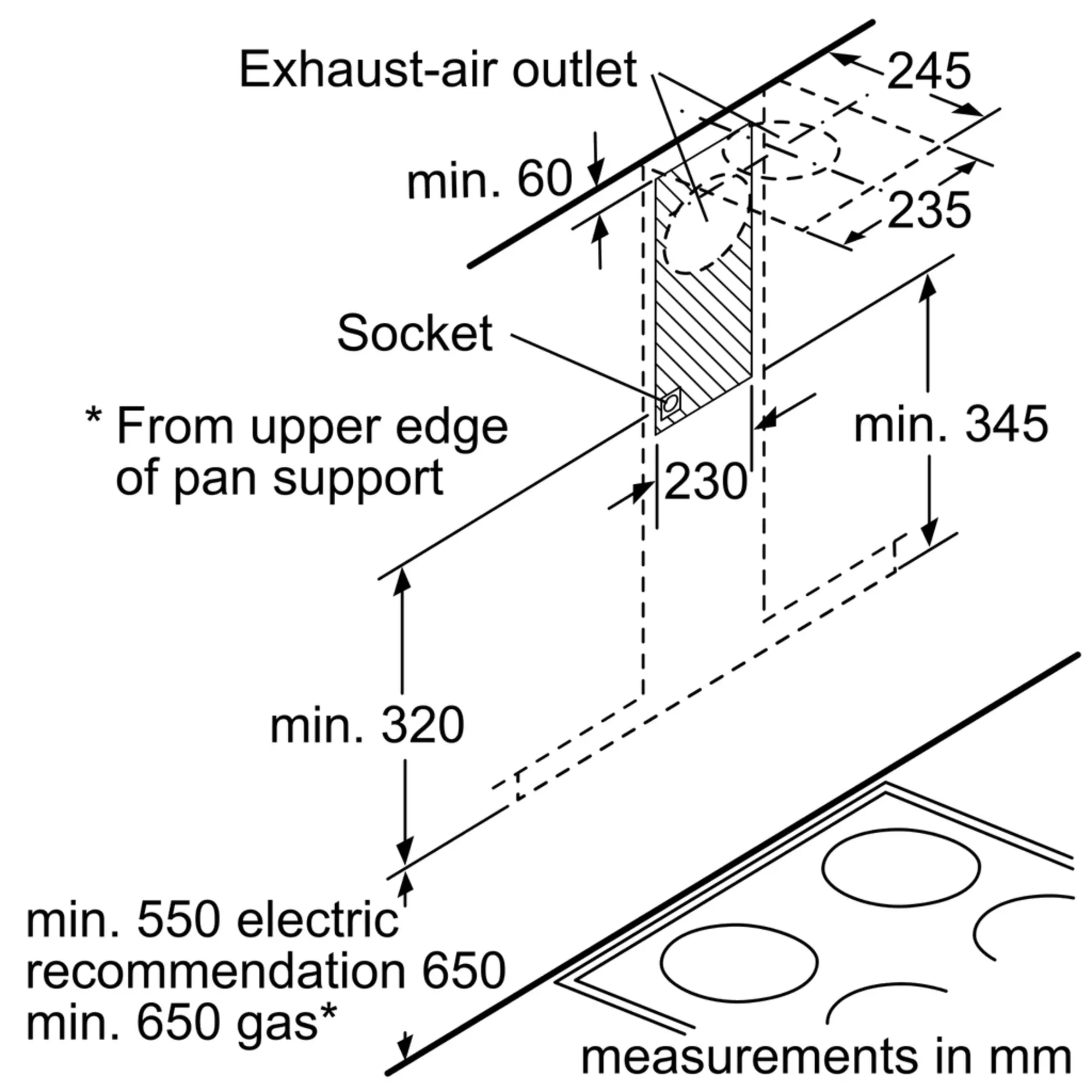

Dimensional Drawings
