Serie | 6 Flat hood

DWF97KM60


Flat design hood: always keep an eye on your pots and pans with this design highlight.

Highlights

Thanks to low noise levels you hear: nothing.

Your guests are not alone in appreciating a relaxed cook. So you can chat with your guests while cooking, we have made our recirculation cooker hoods so quiet you hardly notice them. Generally, a swishing sound is generated by the noise of the motor itself and the air flow, depending on the level of counterpressure. On ducted models, 50 % of the noise is ducted to the outside. Bosch cooker hoods with the CleanAir module generate up to 3 dB(A) less noise than conventional recirculation systems while offering the same performance.

Convenience

TouchControl - control at your fingertips.

Set the exact power level with a single touch thanks to TouchControl and DirectSelect. It’s easy to operate: simply select the right power level or turn on the lights and away you go.

excellent results

Effective extraction of cooking smells with power boost

Thanks to power boost, your hood can handle even strong cooking smells and boosts the extraction rate at the touch of a button.

Performance

Metal grease filter

Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.

Additional product information

Technical information:
  • Chimney extractor hood
  • 90 cm
  • Glas plate: clear glass black printed
  • Suitable for ducted or recirculating operation
  • In recirculation operation chimless use possible
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Designed for wall mounted installation
  • Gas spring 3
  • touch control for extractor speeds and light
  • Electronic controls
  • touch control with Electronic display
  • 3 speed + intensive operation via touch control
  • Electronic controls via touch control with Electronic display
  • touch control (3 speed + intensive operation) with Electronic display
  • 3 speed + intensive operation
  • 2 capture areas: front side and bottom side
  • Intensive op. revert dur.: 6 min.
  • Easy to clean
  • BLDC for Ventilation
  • 2 single inlet vertical, BLDC for Ventilation
  • 2 x 1,5W LED
  • Rim extraction
  • Filter cover glass
  • Removable metal grease filters, dishwasher safe
  • Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 420 m³/h Intensive 730 m³/h
  • Ducted extraction rate according to DIN/EN 61591max. 420 m³/h
  • Maximum extraction 420 m3/h
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Yes
  • Max. extraction rate: 730 m3/h
  • Extraction rate in recirculation mode:
    Max. normal use: 290 m³/h
    Intensive: 510 m³/h
  • Noise levels in recirculation mode:
    Max. normal use: 60 dB(A) re 1 pW (46 dB(A) re 20 µPa sound pressure)
    Intensive: 72 dB(A) re 1 pW (59 dB(A) re 20 µPa sound pressure)
  • Power rating: 143 W
  • Dimensions exhaust air (HxWxD): 969-1239 x 890 x 263 mm
  • Dimensions recirculating, chimney (HxWxD): 1029-1299 x 890 x 263 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
    1159 x 890 x 263 mm - mounting with outer chimney
    1229-1499 x 890 x 263 mm - mounting with telescopic chimney
  • Dimensions recirculating, chimless (HxWxD): 500 mm x 890 x 263 mm
Additional product information
General
Width 90 cm
Depth of the product 263 mm
Construction type Built-in
Operating Mode Convertible
Max. air recirculation (m³/h) 290
Sound pressure max. normal 43
Type of control setting and signalling devices LED, touch control
Energy efficiency class A
Total annual energy consumption 39.7
Connectivity
Home Connect
Construction type
Diameter of air outlet (mm) 150 / 120 mm
Colour Black
Color chimney Stainless steel
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Wall-mounted
Material of the body Glass, Lacquered
Material chimney Stainless steel
Number of motors 2
Operating Mode Convertible
Typology Chimney
Connection
Connection rating (W) 143 W
Length electrical supply cord (cm) 130 cm
Frequency (Hz) 60; 50 Hz
Total power of the motors (W) 140 W
Voltage (V) 220-240 V

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

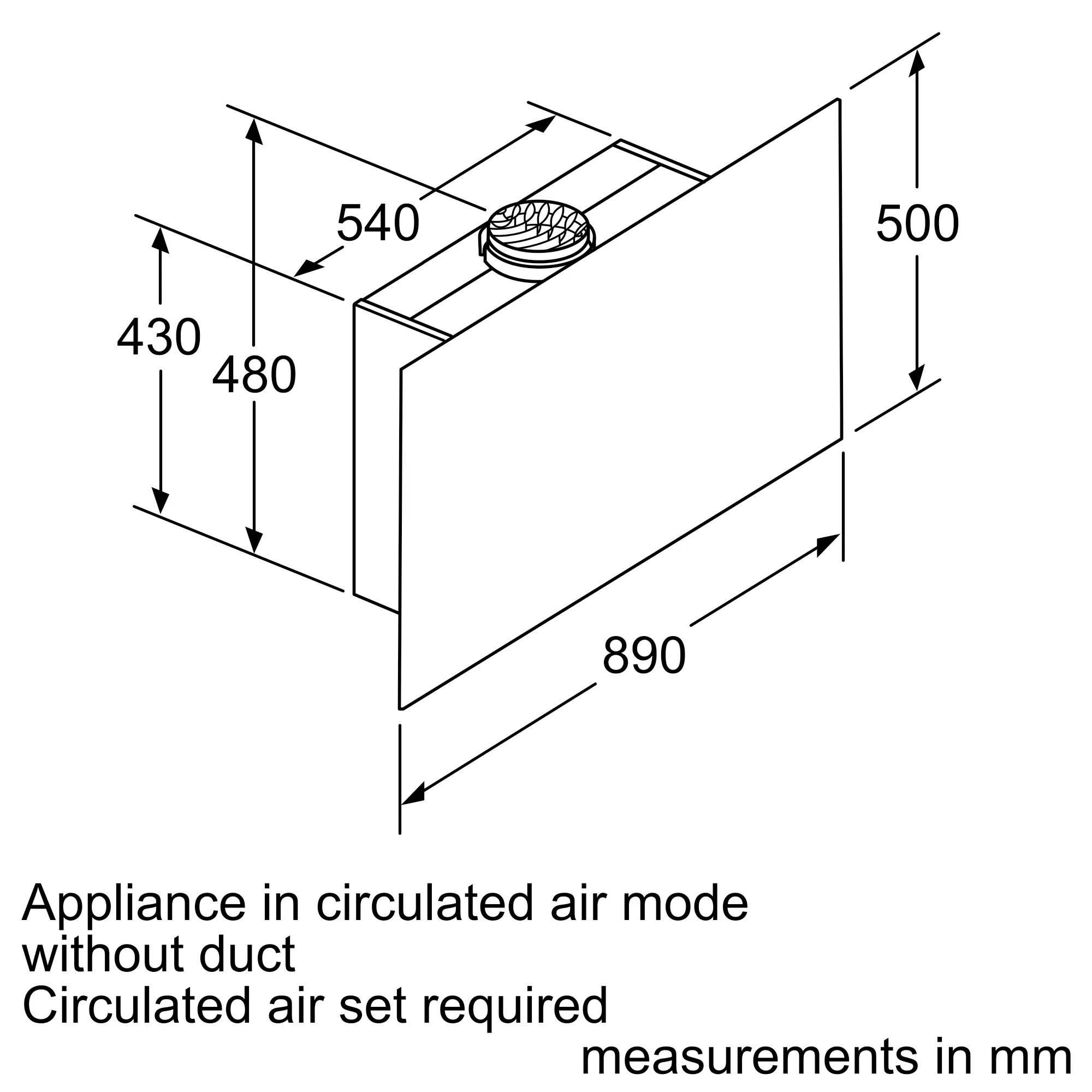

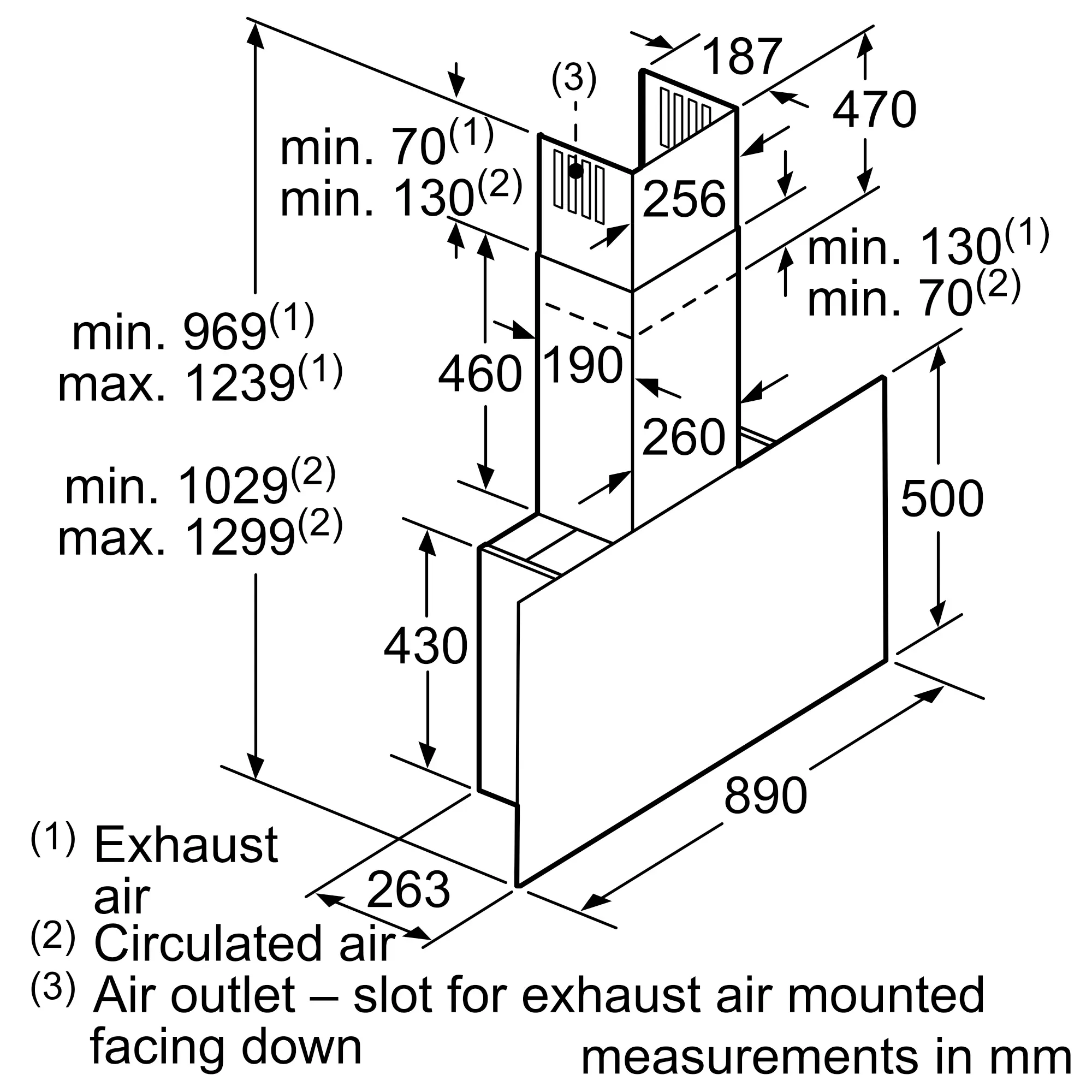

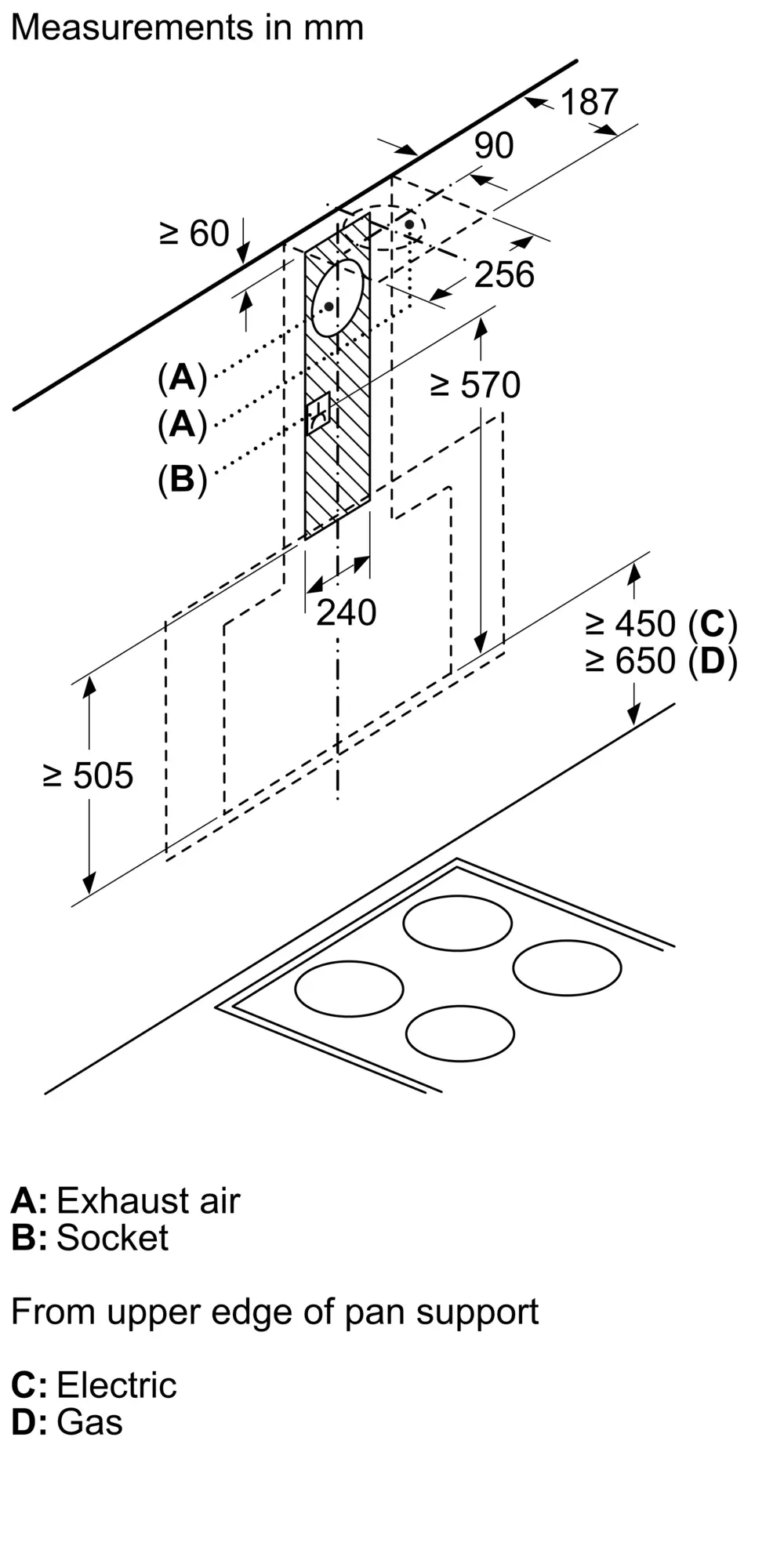

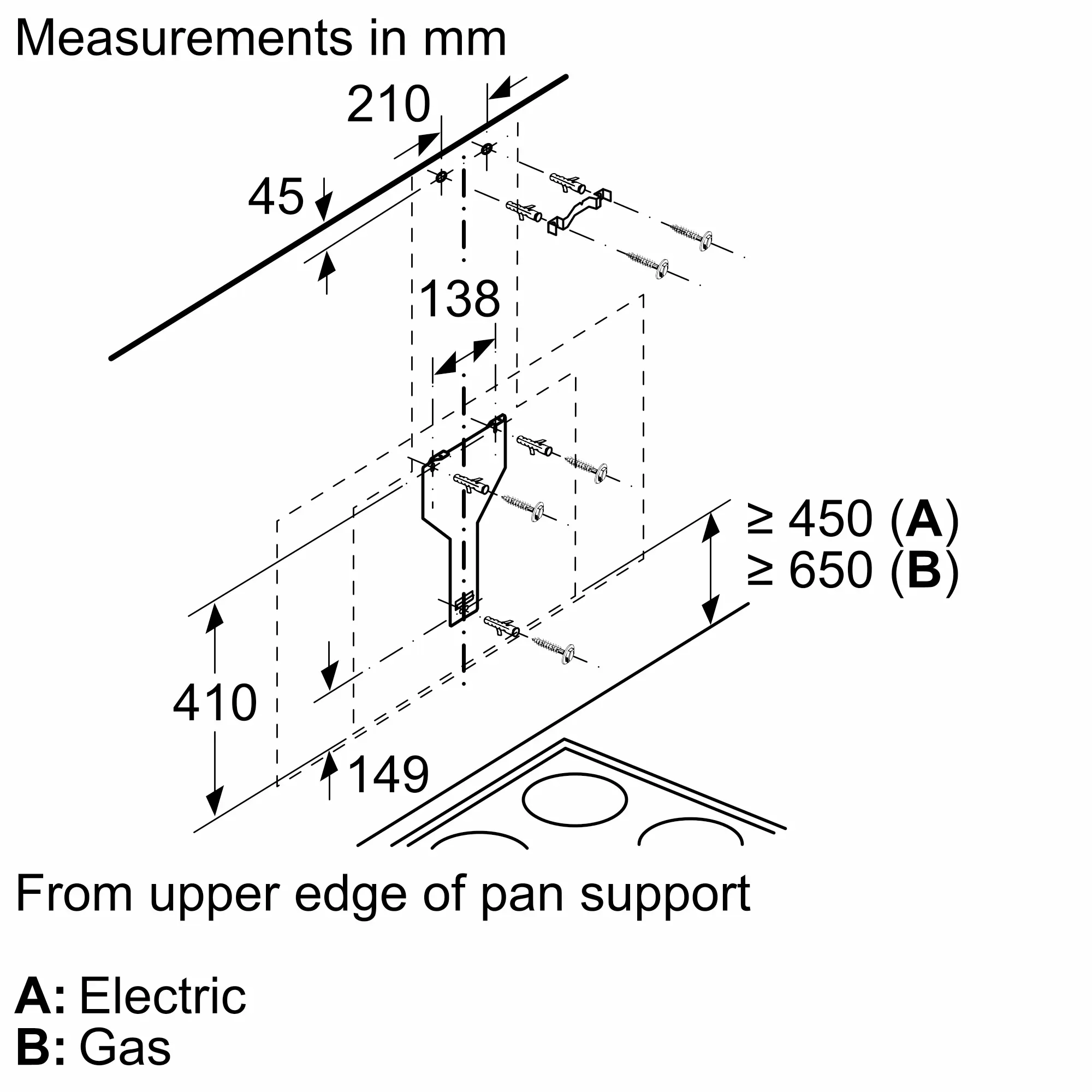

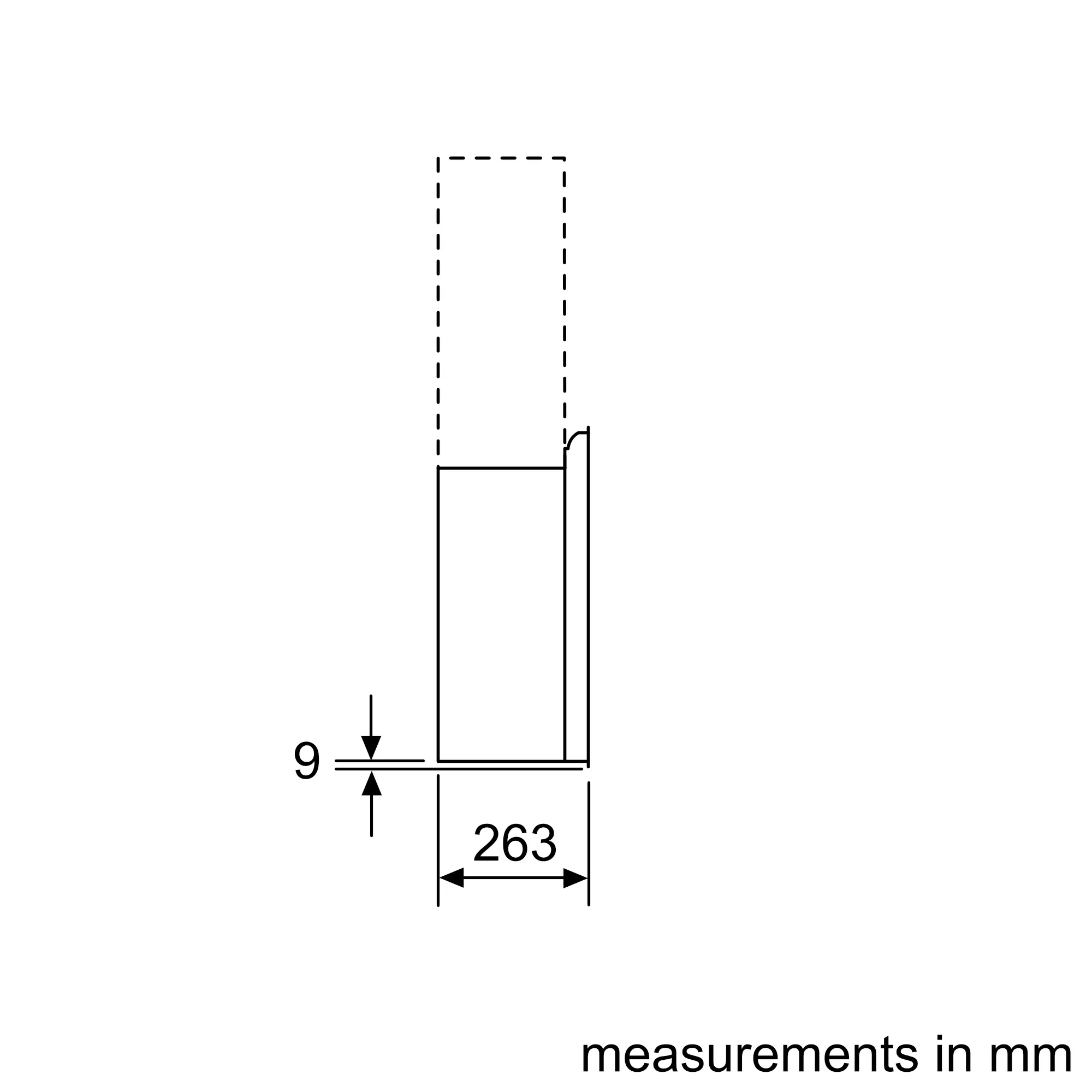

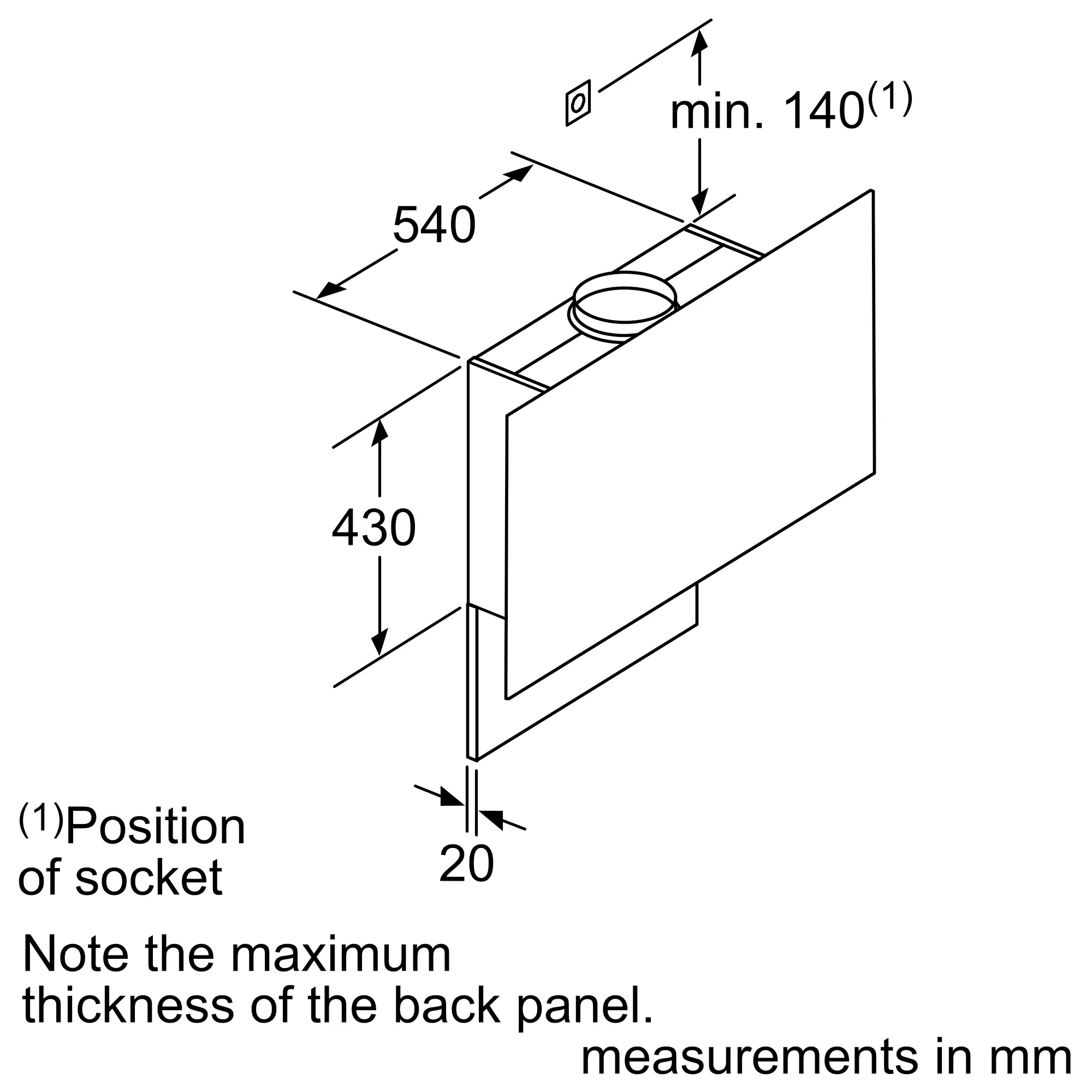

Dimensional Drawings
