Serie | 6 90 cm built-in oven

VBD554FS0


Additional information

Additional information
General
Width of the product (mm) 896 mm
Height of the product (mm) 594 mm
Usable volume (of cavity) - NEW (2010/30/EC) 112 l
Cooking method Bottom heat, Circulating air, Conventional heat, Full width grill, Hot air grilling, Rotisserie
TFT-Touchdisplay Plus
TFT-Touchdisplay
TFT-Display
Highlights Child-proof Lock
Included accessories cavity 1 1 x enamel baking tray, 1 x combination grid, 1 x universal pan
Energy efficiency class (2010/30/EC) B
Power consumption standby/display on 0.8 W
Connectivity
Home Connect
Construction type
Color / Material Front Stainless steel
Construction type Built-in
Control Panel Material brushed stainless steel
Type of control setting devices - cavity 1 retractable, Rotary knob, round, Touch Control
Door Material Glass
Energy input Electric
Installation typology Built-in into the cabinet
Door hinge Bottom
Size and weight
Cavity width (cm) 72.4 cm
Cavity height (cm) 37.1 cm
Cavity depth (cm) 41.7 cm
Dimensions of the product (mm) 594 x 896 x 570 mm
Cut-out depth 560 mm
Depth with door open (mm) 1,029 mm
Net weight (kg) 53.7 kg
Oven
Area of largest baking sheet 1,830
Hot air temperature max. (°C) 250 °C
T/b heating temperature max. (°C) 250 °C
Product size Large
Door temperature Norm
Consumption values
Energy efficiency class (2010/30/EC) B
Energy consumption per cycle conventional (2010/30/EC) 1.19
Energy consumption per cycle forced air convection (2010/30/EC) 1.27
Comfort
Included accessories cavity 1 1 x enamel baking tray, 1 x combination grid, 1 x universal pan
Are some hobs controls integrated?
Connection
Length electrical supply cord (cm) 115 cm
Current (A) 16 A
Electrical connection rating (W) 3,300 W
Plug type no plug
Voltage (V) 220-240 V
General
Width of the product (mm) 896 mm
Height of the product (mm) 594 mm
Usable volume (of cavity) - NEW (2010/30/EC) 112 l
Cooking method Bottom heat, Circulating air, Conventional heat, Full width grill, Hot air grilling, Rotisserie
TFT-Touchdisplay Plus
TFT-Touchdisplay
TFT-Display
Highlights Child-proof Lock
Included accessories cavity 1 1 x enamel baking tray, 1 x combination grid, 1 x universal pan
Energy efficiency class (2010/30/EC) B
Power consumption standby/display on 0.8 W

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

Download Disassembly and Dismantling Manual

Information for professionals about disassembly and dismantling according EU ecodesign regulation ((EU) No 666/2013, (EU) No 66/2014 and (EU) No 814/2013)

To contact form

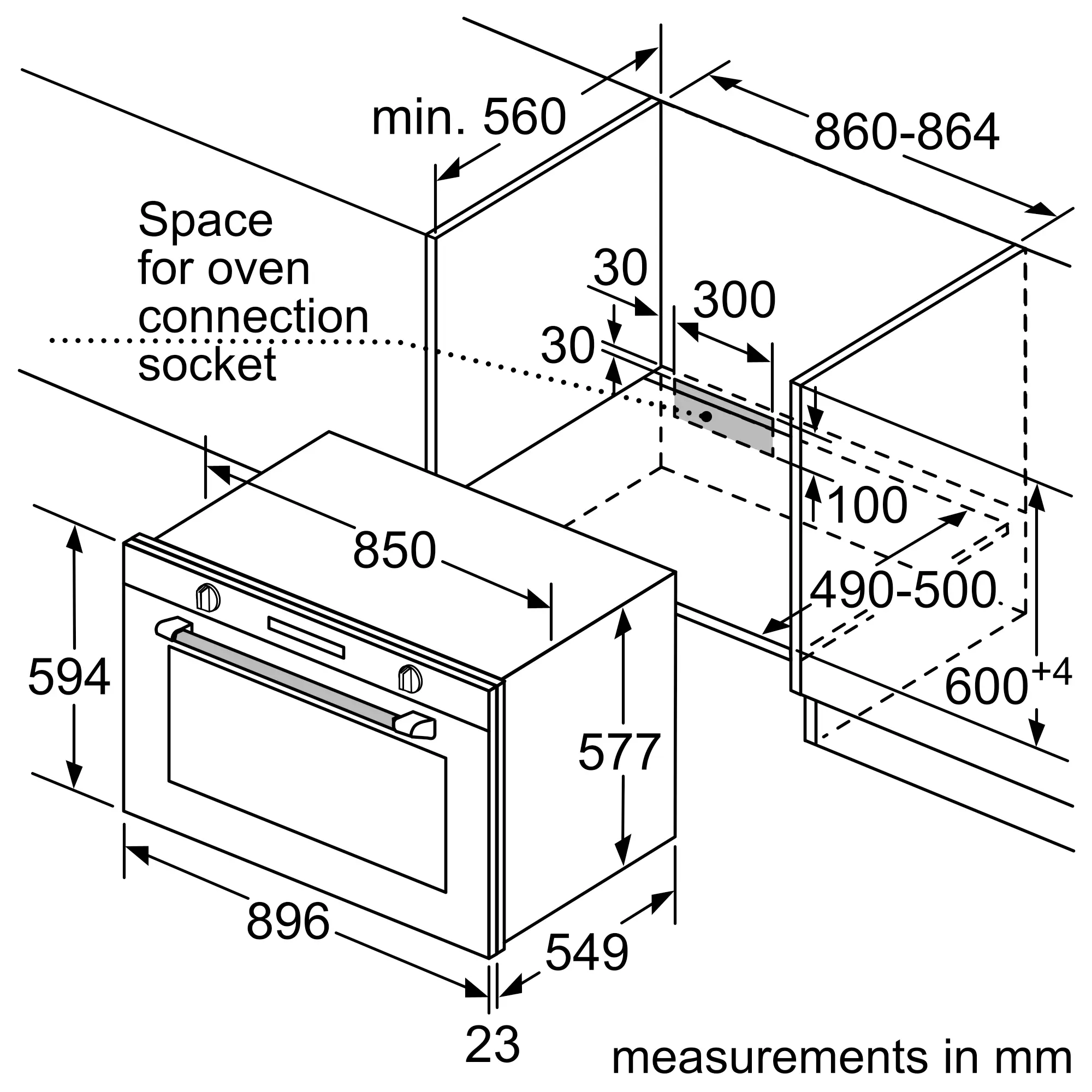

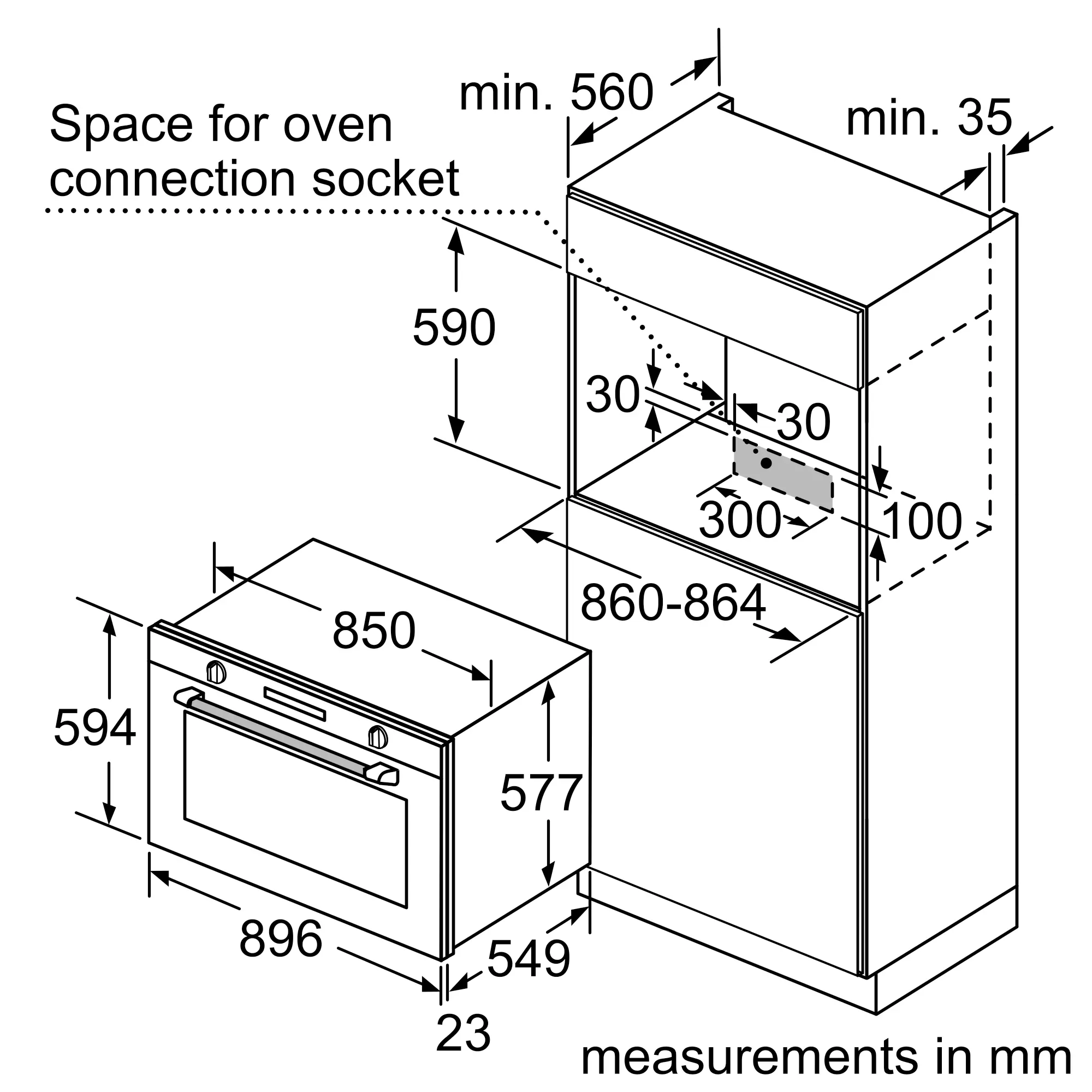

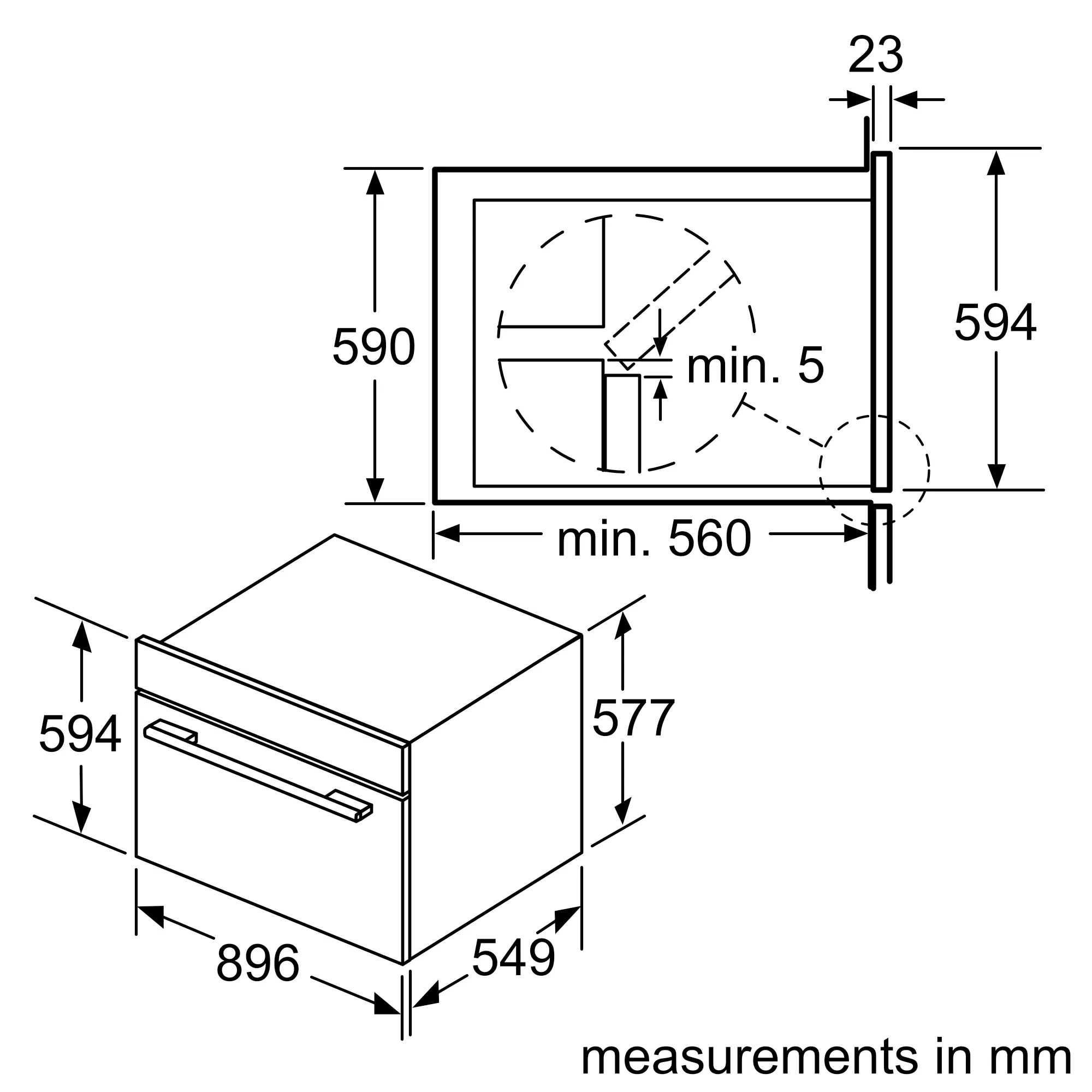

Dimensional Drawings
