Serie | 8 90 cm, Ceramic hob

PXX975DC1E


The induction hob with PerfectFry: achieve perfect frying results thanks to automatic temperature control.

Highlights

PowerBoost

Extra added power: The improved PowerBoost function in our induction hobs adds even more power to speed up the cooking process. For example, you can now boil 2 litres of water almost three times as fast as on a conventional glass-ceramic hob.

Pan recognition

Pan recognition, and it won'y work when there is no pot on the induction

9 step fire for induction

9 step fire for induction, precise control of the fire power, to meet your different cooking needs

PerfectFry

The temperature is crucial for frying. Too high will make even the best steak fry too quickly or scorch it. No matter how you like to eat it - rare, medium or well-done: frying meat is made simple now. PerfectFry sensor regulates temperatures continuously during frying and adjusts them precisely if needed.

DirectSelect Premium

DirectSelect Premium offers premium usability during cooking with a full length of 30cm. For an intuitively simple selection of power levels and additional functionalities. Our user interface only shows the functions which you actually require. The user interface is not visible when turned off and makes for a clean and elegant design of the hob.

Additional information

Design:
  • Facette front and rear, side profiles
  • Can be combined with all hobs in comfort design
Comfort:
  • 5-fold
  • Direct Select
  • 3-steps
  • Electronic display
  • Electronic regulation 17 power levels
  • Timer with switch-off function for all zones
    Buzzer
    count-up timer; per cooktop
  • Automatic pan recognition sensor
    PowerManagement Function
    Safety switch-off
    Childproof lock
    Whipe protection function
  • yes
  • yes
  • yes
  • loose insert in packaging
  • Connection cable (1.1 M )
  • Connected load: 11.1 kW
Power and size:
  • Cooking zones: 1 x Ø 400 mmx240 mm, 3.3 KW (max. Power levels 3.7 KW) Induction or 2 x Ø 240 mm, 2.2 KW (max. Powerlevels 3.7 KW) Induction; 1 x Ø 300 mmx240 mm, 2.6 KW (max. Power levels 3.7 KW) Induction; 1 x Ø <
  • Min. worktop thickness: 30 mm
Environment+safety:
  • 2 stage residual heat indicator per cooking zone
  • Main switch
Professional equipment:
  • PerfectFry sensor with 5 temperature settings
Quickness:
  • All
  • All
Additional information
General
Energy input Electric
Type of control setting and signalling devices Direct Select 2.0, front
Safety device childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off

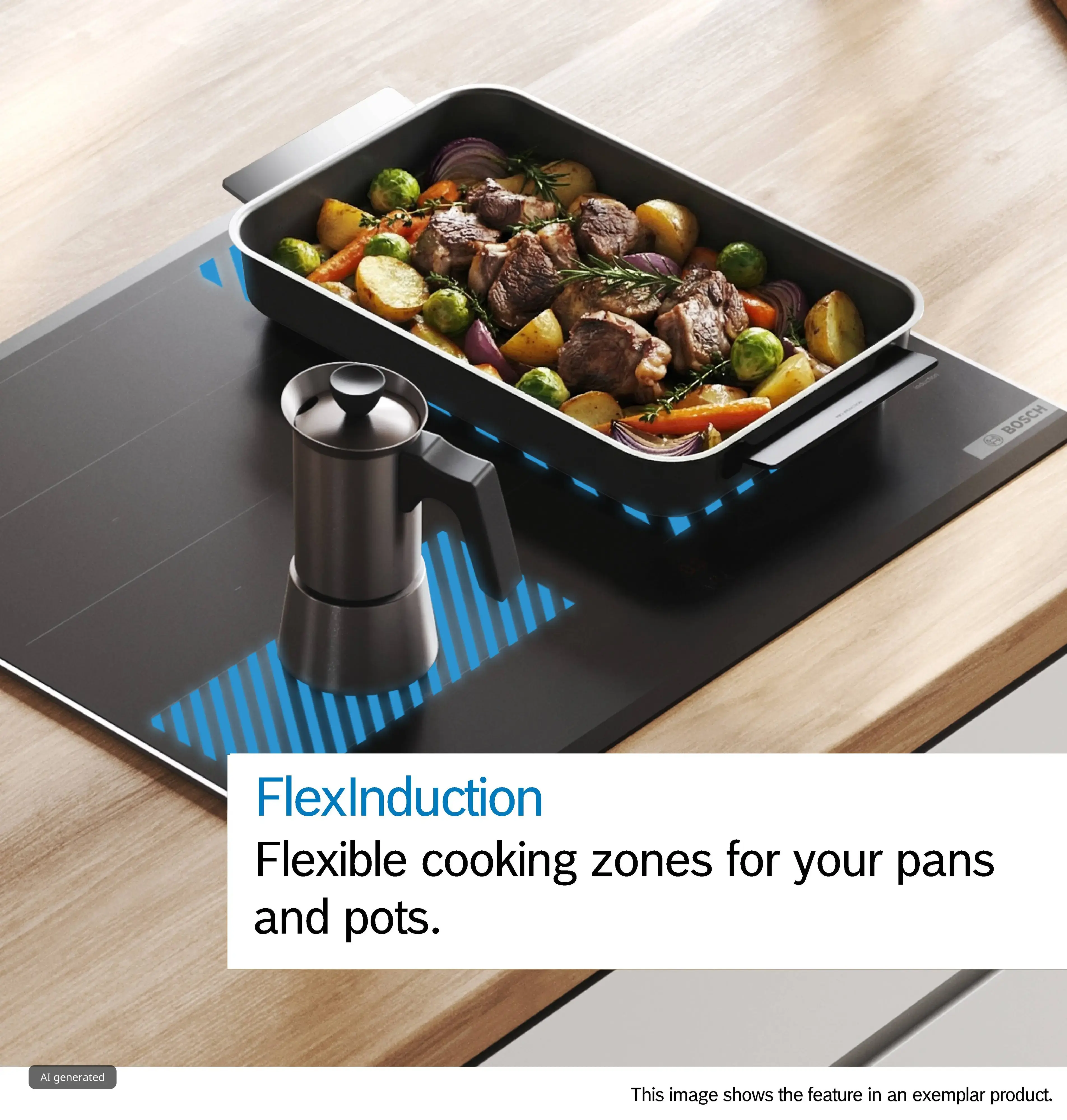

Highlights 17 power levels, 5 frying levels, Direct Select 2.0, flexInduction, fryingSensor Plus, Keep warm function, powerBoost
Energy consumption of hob 176.7
Connectivity
Home Connect
Construction type
Color of frame Alu, brushed
Color of surface Alu, brushed, Black
Construction type Built-in
Number of electric plates 0
Number of electric cooking zones 3
Type of frame Facette fro+rear,side profiles
Number of gas burners 0
Number of halogen plates 0
Installation typology Built-in into the cabinet
Total number of positions that can be used at the same time 5
Number of radiant plates 0
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 51 x 916 x 527 mm
Net weight (kg) 20.7 kg
Cooking zone 1
Location of 1st heating element front left
Cooking zone 2
Dimension of 2nd heating element (mm) 400 x 240 mm
Location of 2nd heating element center left
Power of 2nd heating element (kW) 3.3 kW
Type of 2nd heating element Induction heating
Energy consumption of 2nd heating element 175.0
Cooking zone 3
Location of 3rd heating element back left
Cooking zone 4
Location of 4th heating element middle back
Cooking zone 5
Location of 5th heating element back right
Cooking zone 6
Dimension of 6th heating element (mm) 400 x 240 mm
Location of 6th heating element center right
Power of 6th heating element (kW) 3.3 kW
Type of 6th heating element Induction heating
Energy consumption of 6th heating element 175.0
Cooking zone 7
Location of 7th heating element front right
Cooking zone 8
Location of 8th heating element front middle / central
Cooking zone 9
Dimension of 9th heating element (mm) 300 ; 240 mm
Location of 9th heating element front centre/cent
Power of 9th heating element (kW) 2.6 kW
Energy consumption of 9th heating element 180.0
Safety
Power on indicator
Residual heat indicator Separate
Safety device childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off
Main on/off switch
Connection
Length electrical supply cord (cm) 110 cm
Electrical connection rating (W) 11,100 W
Energy input Electric
Frequency (Hz) 50; 60 Hz
