Serie | 6 Frame design

PKC845FP1M


The glass-ceramic radiant hob: makes cooking and cleaning especially easy.

Highlights

DirectSelect: easy to understand and even easier to operate.

Thanks to the intuitive control panel, you can select the cooking zones and set the specific power level you want – directly and rapidly. It also features a practical Energy Consumption Display as well as a QuickStart and ReStart-function.

9 step fire for induction

9 step fire for induction, precise control of the fire power, to meet your different cooking needs

Pan recognition

Pan recognition, and it won'y work when there is no pot on the induction

Additional information

Design:
  • Frame design
Comfort:
  • 4 HighSpeed cooking zones, including:
  • 1 extendible triple zone
  • 2 dual zones
  • Zone extension activation with the knob
  • Direct Select
  • Electronic regulation 17 power levels
  • Electronic display
  • Timer with switch-off function for all zones
  • Buzzer
  • Control panel pause function
Environment+safety:
  • 2 stage residual heat indicator per cooking zone
  • Childproof lock
  • Safety switch-off
  • yes
  • Power on indicator light
  • Main switch
  • Individual tunable energy consumption display
Quickness:
  • PowerBoost function
Measurements
  • Min. worktop thickness: 20 mm
Additional information
General
Energy input Electric
Type of control setting and signalling devices DirectSelect 1.0 (Timer), front
Safety device childproof lock, Key Lock, Safety time-switch-off
Highlights 17 power levels
Energy consumption of hob 190.7
Connectivity
Home Connect
Construction type
Color of frame Stainless steel
Color of surface Black, Stainless steel
Construction type Built-in
Design - line Conventional frame
Number of electric plates 0
Number of electric cooking zones 4
Type of frame Conventional frame
Number of gas burners 0
Number of halogen plates 0
Installation typology Built-in into the cabinet
Total number of positions that can be used at the same time 4
Number of radiant plates 4
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 48 x 795 x 517 mm
Net weight (kg) 10.6 kg
Cooking zone 1
Dimension of heating element (mm) 210 ; 120 mm
Location of 1st heating element front left
Power of heating element (kW) 0.8 ; 2.1 kW
Type of heating element Radiant heating
Energy consumption of heating element 186.7
Cooking zone 2
Location of 2nd heating element center left
Cooking zone 3
Dimension of 3rd heating element (mm) 145 mm
Location of 3rd heating element back left
Power of 3rd heating element (kW) 1.2 kW
Type of 3rd heating element Radiant heating
Energy consumption of 3rd heating element 190.2
Cooking zone 4
Location of 4th heating element middle back
Cooking zone 5
Location of 5th heating element back right
Cooking zone 6
Dimension of 6th heating element (mm) 145 ; 200 ; 350 mm
Location of 6th heating element center right
Power of 6th heating element (kW) 0.9 ; 1.75 ; 2.1 kW
Type of 6th heating element Radiant heating
Energy consumption of 6th heating element 205.7
Cooking zone 7
Location of 7th heating element front right
Cooking zone 8
Location of 8th heating element front middle / central
Cooking zone 9
Dimension of 9th heating element (mm) 230 ; 180 mm
Location of 9th heating element front centre/cent
Power of 9th heating element (kW) 1.7 ; 2.4 kW
Type of 9th heating element Radiant heating
Energy consumption of 9th heating element 180.0
Safety
Power on indicator
Residual heat indicator Separate
Safety device childproof lock, Key Lock, Safety time-switch-off
Main on/off switch
Connection
Electrical connection rating (W) 9,300 W
Energy input Electric
Frequency (Hz) 50; 60 Hz

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

Download Disassembly and Dismantling Manual

Information for professionals about disassembly and dismantling according EU ecodesign regulation ((EU) No 666/2013, (EU) No 66/2014 and (EU) No 814/2013)

To contact form

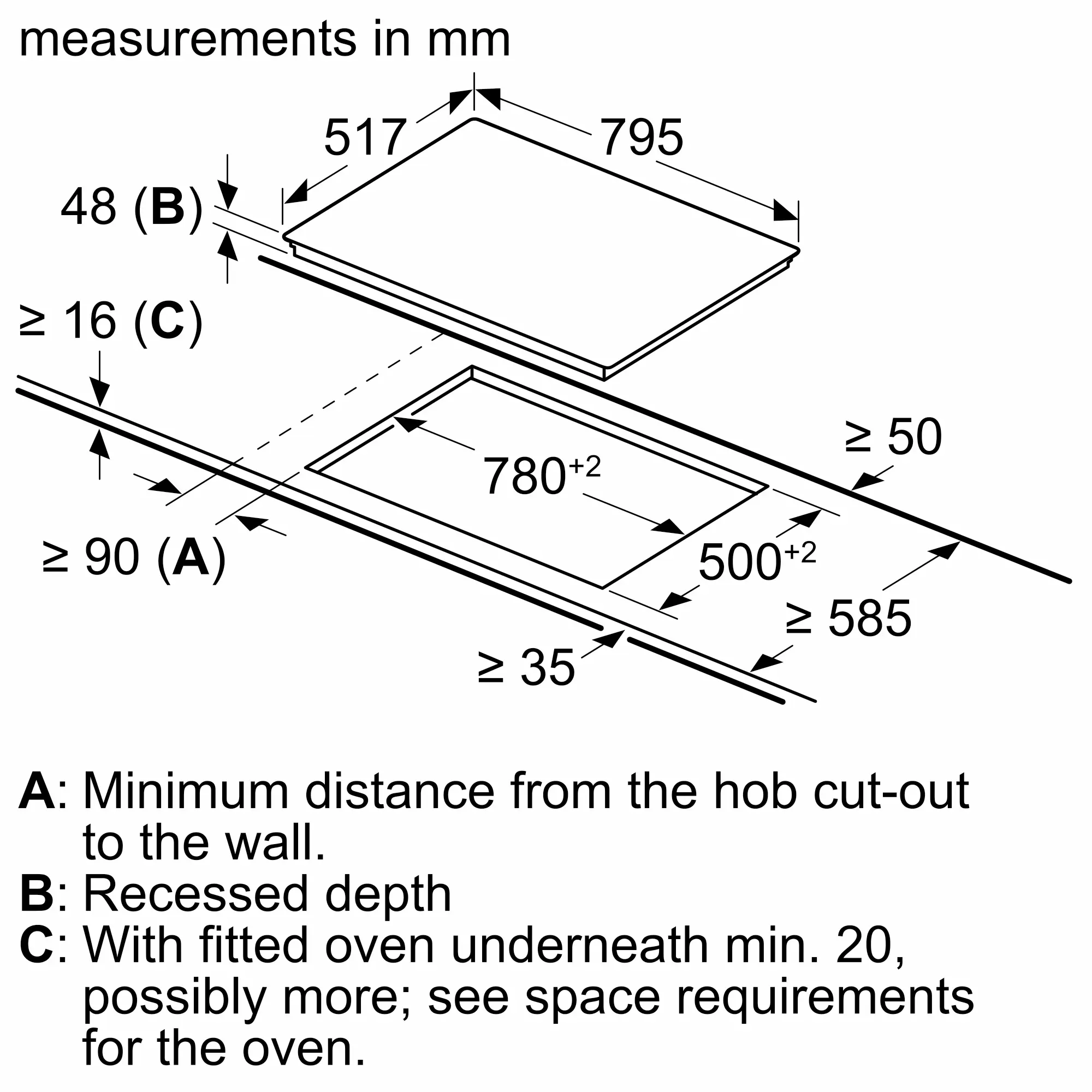

Dimensional Drawings
