Serie | 6 Built-in microwave oven

BEL554MS0


The built-in microwave for the 38 cm niche: use it for thawing, heating and perfect preparation of foods.

Highlights

Performance

Your shortcut to perfect oven meals.

Poultry, meat, fish, stews or vegetables: AutoPilot <3462val_wo_unit> will cook the dish to perfection. Simply place the dish in the oven and the appropriate automatic programme can be selected out of <3462val_wo_unit> in the display menu. Just add the weight of the fish or meat and press “Start”. AutoPilot then takes over and determines the cooking mode, temperature and cooking time. It even switches off the oven towards the end of the cooking time. As some dishes with the AutoPilot require the use of ovenware with a lid, the oven also stays clean. Cooking couldn’t be simpler.

Technical Specifications

Microwave and heating mode:
  • Max. Power: 900 W; 5 Microwave power settings: 90 W, 180 W, 360 W, 600 W, 900 W
  • Grill 1200 W
  • Grill and microwave power levels 90 W, 180 W, 360 W combinable
  • Microwave and grill for separate use
  • Cavity volume: 25 l
Design:
  • Stainless steel cavity
Comfort:
  • LED display control
  • electronic clock
  • Rotary swivel
  • User-friendly electronics: extremely
    easy and comfortable operation
  • cookControl8
  • 4 defrost and 3 cooking programmes in microwave function,1 programmes for combination function
  • memory function (1 setting)
  • Interior lighting
  • Glass tray diameter: 31.5 cm
  • Bottom, Oven door with SoftClose, Soft opening
  • Bar handle
Accessory:
  • 1 x grid, 1 x Turntable
Environment and Safety:
  • Child lock
    Automatic switch off
    Start-/Stop button
    Door contact switch
  • Integral cooling fan
Technical Info:
  • Length of mains cable: 130 cm
  • Total connected load electric: 1.45 KW
  • Nominal voltage: 220 - 230 V
  • Tall housing
Dimensions:
  • Appliance dimension (hxwxd): 382 mm x 594 mm x 388 mm
  • Niche dimension (hxwxd): 560 mm - 568 mm x 450 mm - 455 mm x 550 mm
  • “Please reference the built-in dimensions provided in the installation drawing”
Technical Specifications
General
Width of the product (mm) 594 mm
Height of the product (mm) 382 mm
Max. microwave power level 900 W
Door opening Button
Addtional function Grill function
Turntable diameter (mm) 315 mm
Connectivity
Home Connect
Construction type
Cavity material Stainless steel
Color / Material Front Stainless steel
Built-in / Free-standing Built-in
Type of control Electronic
Door opening Button
Front screen material Glass
Type of grill Quartz
Addtional function Grill function
Turntable
Size and weight
Cavity capacity 25 l
Dimensions of the product (mm) 382 x 594 x 388 mm
Cavity dimensions (mm) 208.0 x 328.0 x 369.0 mm
Required niche size for installation (HxWxD) 380-382 x 560-568 x 550 mm
Turntable diameter (mm) 315 mm
Net weight (kg) 19.4 kg
Cooking
Type of auto-cooking Weight control
Additional cooking method Conventional
Additional cooking method Fan cooking
Additional cooking method Grill
Performance and consumption values
Grill power (W) 1,200 W
Comfort
Included accessories 1 x grid, 1 x Turntable
Clock
Type of control setting and signalling devices retractable, Rotary knob, round, Start button, Touch Control
Electronic After-sales Service
Connection
Connection rating (W) 1,450 W
Length electrical supply cord (cm) 130 cm
Current (A) 10 A
Frequency (Hz) 50 Hz
Plug type Gardy plug w/ earthing
Voltage (V) 220-230 V

No documents available

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

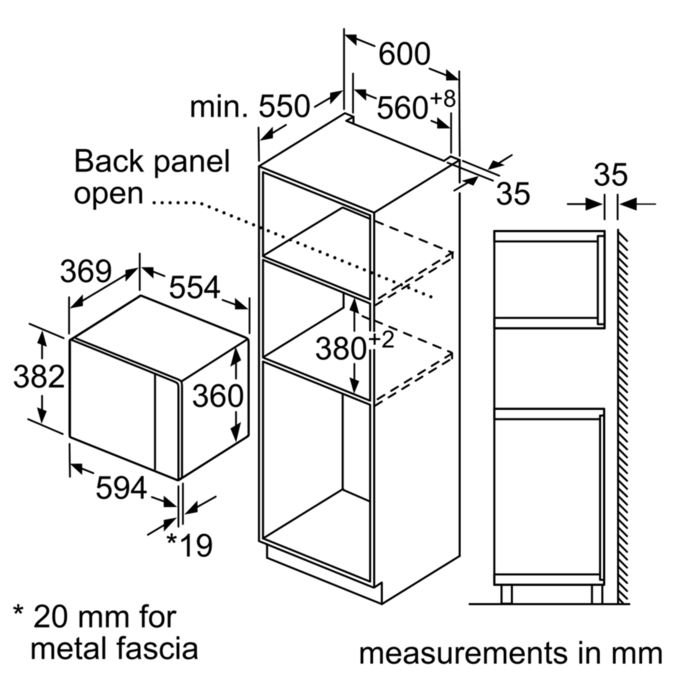

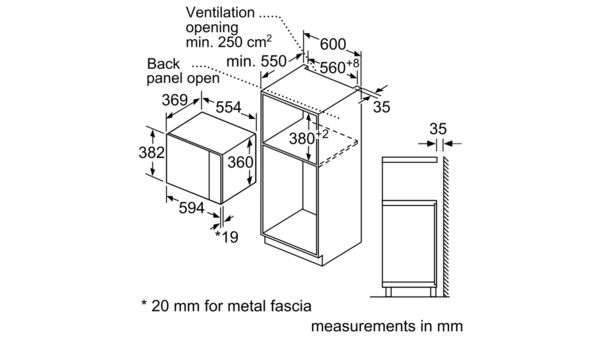

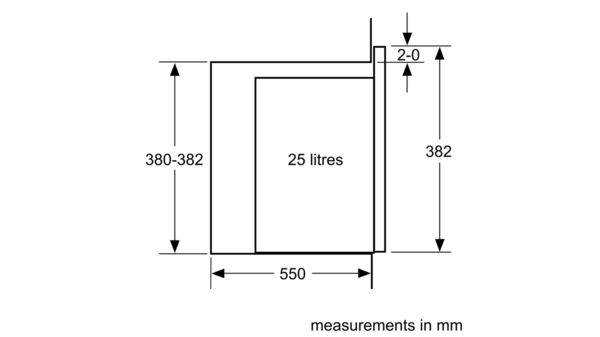

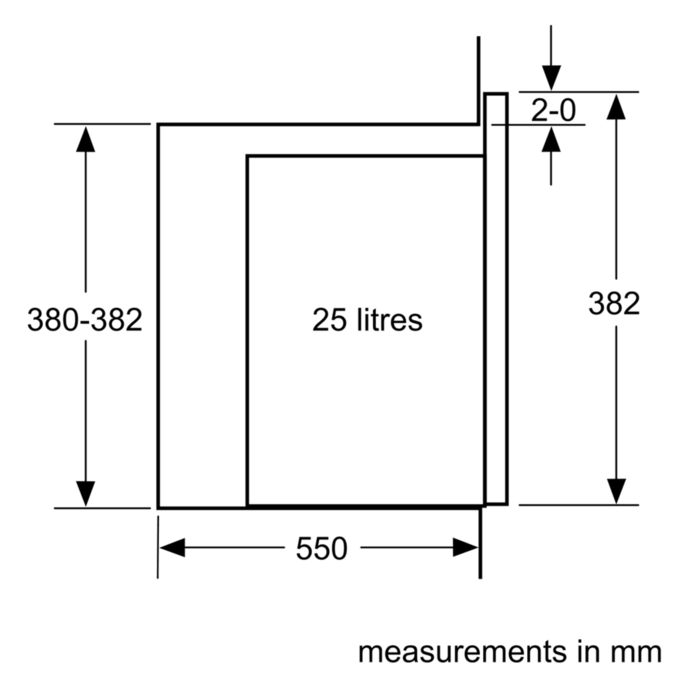

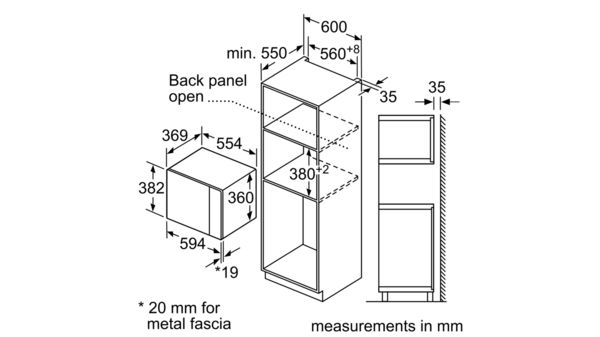

Dimensional Drawings
