Technical Overview
Dimensions
815x598x550 mm
Energy Efficiency Class (Regulation (EU) 2017/1369)
E
The water consumption of the eco programme in liters per cycle
9.5 l
Airborne acoustical noise emission class
C
Drying system
Heat exchanger
Basket system
Practical loading with Vario Flex basket
Connected appliances with Home Connect
No
Water protection with warranty - AquaStop
Yes
Awards
Specifications
Installation typology
Integrated
Built-in / Free-standing
Built-in
Main colour of product
Not applicable
Removable top
No
Variable hinge for special installation situations
No
Column installation
Yes
Adjustable plinth
Both horizontal and vertical
Energy Efficiency Class (Regulation (EU) 2017/1369)
E
Energy Consumption for 100 cycles Eco Programme
92
The energy consumption of the eco programme in kWH per cycle
0.923 kWh/cycle
The water consumption of the eco programme in liters per cycle
9.5 l
Airborne acoustical noise emission class
C
Airborne acoustical noise emissions
48 dB(A) re 1 pW
Programme duration
3:30 h
Maximum number of place settings
12
List of programmes
Intensive, Auto 45-65°C, Eco, Quick wash 65ºC, Pre-Rinse
Additional operational options
VarioSpeedPlus
Water protection with warranty - AquaStop
Yes
Drying system
Heat exchanger
rackmatic normal
No
Tub material
Stainless steel with Polinox base
Voltage
220-240 V
Basket system
Practical loading with Vario Flex basket
Special cleaning zone in the upper basket
Not applicable
3rd Rack
None
Cutlery system
Cutlery basket
Number of Flip Tines in Lower Rack
2
Number of cup racks in the upper basket
2
Anti-slip protection in the upper basket
No
Glass holder in the lower basket
No
Adjustable upper basket
Single
Dimensions
815x598x550 mm
Dimensions of the packed product (HxWxD)
875x660x670 mm
Net weight
33.3 kg
Depth with open door 90 degree
1150 mm

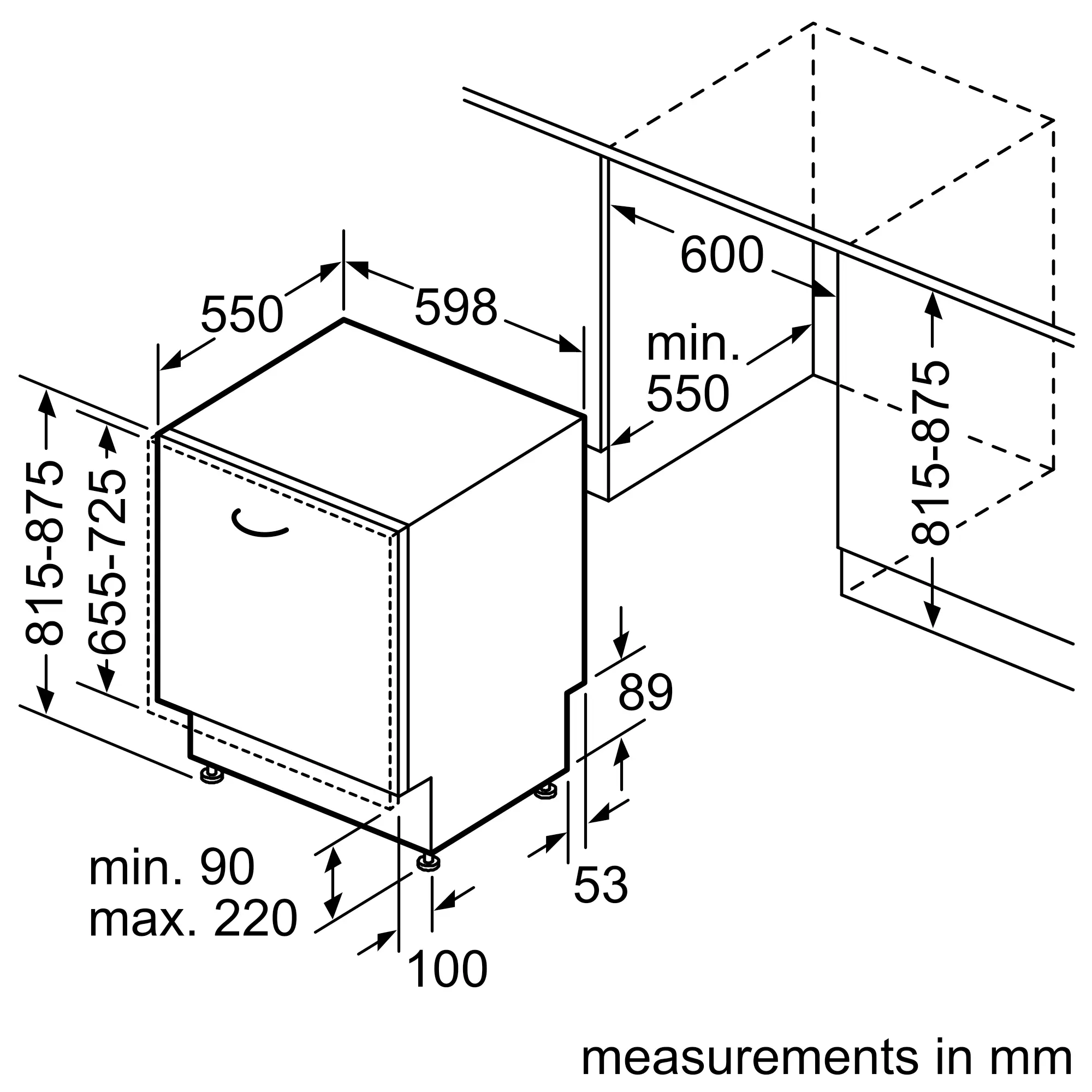

Minimum height for installation
815 mm
Maximum height for installation
875 mm
Minimum width for installation
600 mm
Maximum width for installation
608 mm
Depth for installation
550 mm
Weight furniture front (min - max)
2.5 - 8.5 kg
Height of removable worktop
0 mm
1 / 0
Door-opening sensor
No
TFT display
No
Interior light
No
Program status indication
Program Status Light
Progress indicator
Accoustic signal
Start delay time max (h)
9 h
Precise Glass Protection
No
Extremely quiet and powerful brushless BLDC motor
Yes
aquasensor
Yes
Water management system
No
Detergent detection
Yes
Connected appliances with Home Connect
No
Water protection with warranty - AquaStop
Yes
Child safety devices
No
