Technical Overview
Dimensions
475x896x577 mm
User interface
White LED display with knob control
Integrated Cleaning system
Hydrolytic
Steam technology
Not applicable
Sensors
Not applicable
Pull-out system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Plug type
No plug (electrical connection by electrician)
Connected appliances with Home Connect
No
Highlights
Specifications
Where can the appliance be installed
Base cabinet, high cupboard installation
Are some hobs controls integrated?
No
Which kind of hobs can be controlled
Not applicable
Main colour of product
Stainless steel
Door colour
Stainless steel, Black
Color / Material panel
Stainless steel
User interface
White LED display with knob control
Number of heating & combination modes
10
Heating modes:
Defrost, Full width grill, Hot Air Standard, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting, Bottom heat, Hot air grilling, Circulating air
Heating methods only via Home Connect app
Not applicable
Temperature range
50-280 °C
Steam technology
Not applicable
Integrated Cleaning system
Hydrolytic
Pull-out system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Door hinge
Flap door / flap door with muted doorhinge
Usable volume (of cavity) - NEW (2010/30/EC)
85 l
Energy efficiency class
A+
Safety device
Child lock
Included accessories
1 x enamel baking tray, 1 x combination grid, 1 x universal pan
Dimensions
475x896x577 mm
Dimensions of the packed product (HxWxD)
588x968x680 mm

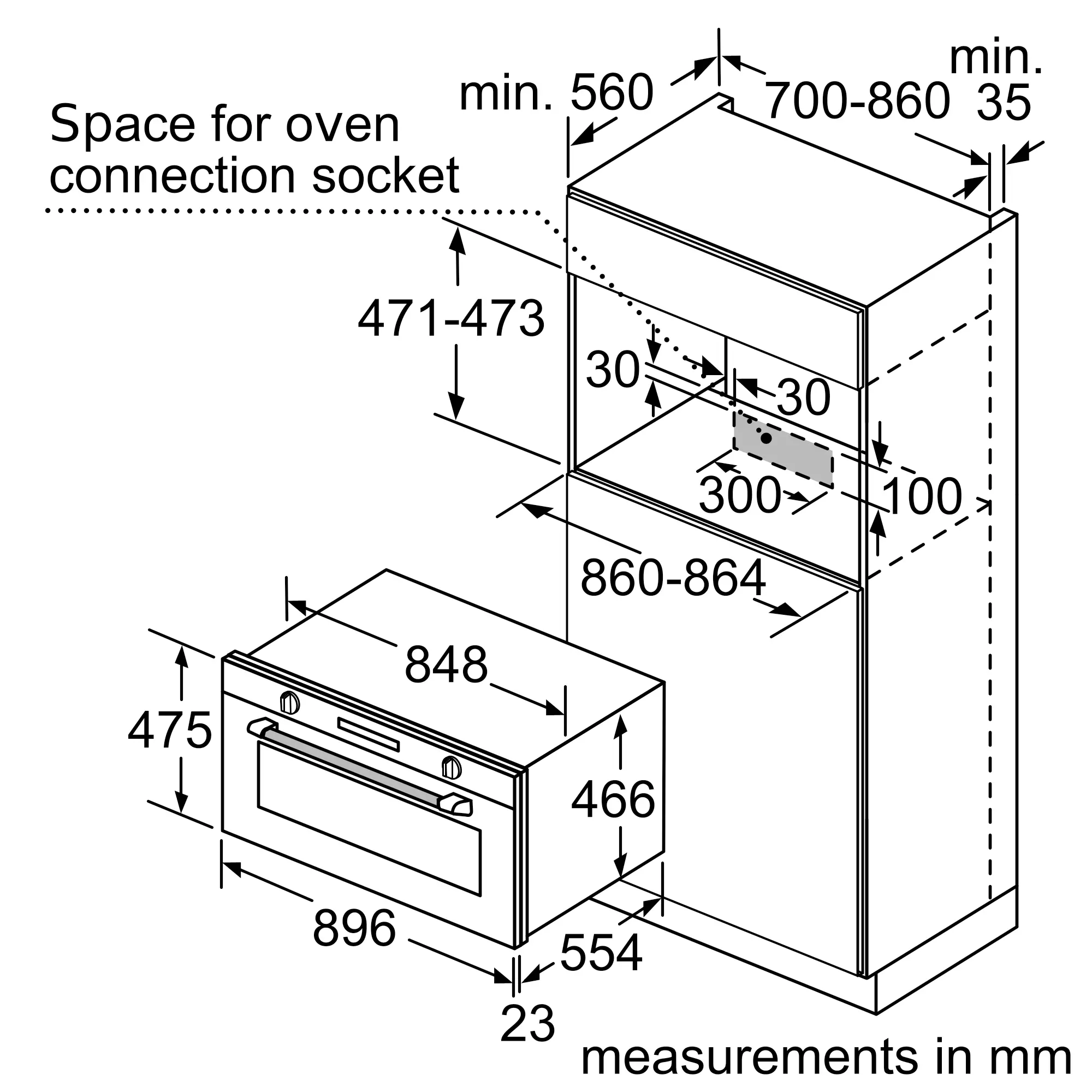

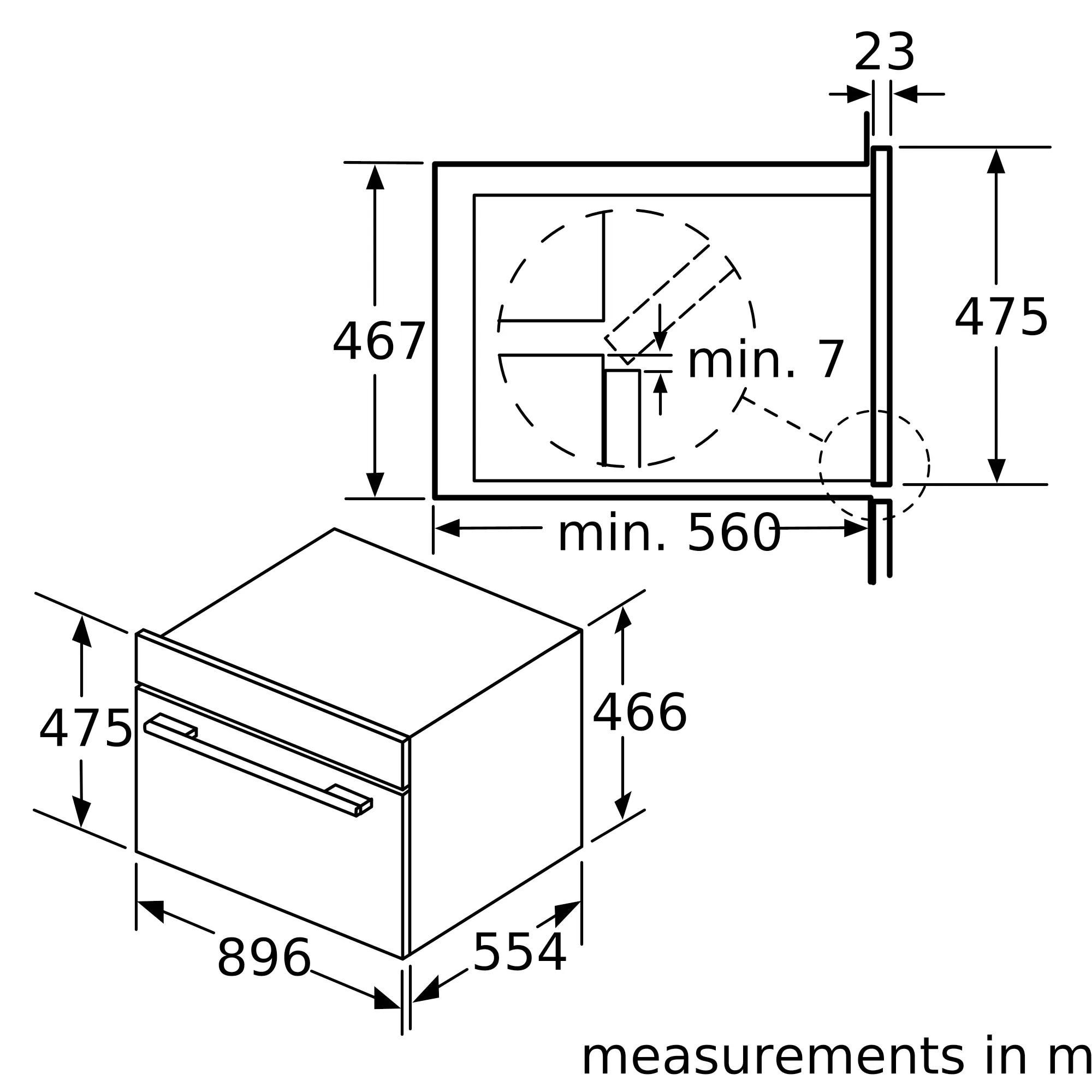

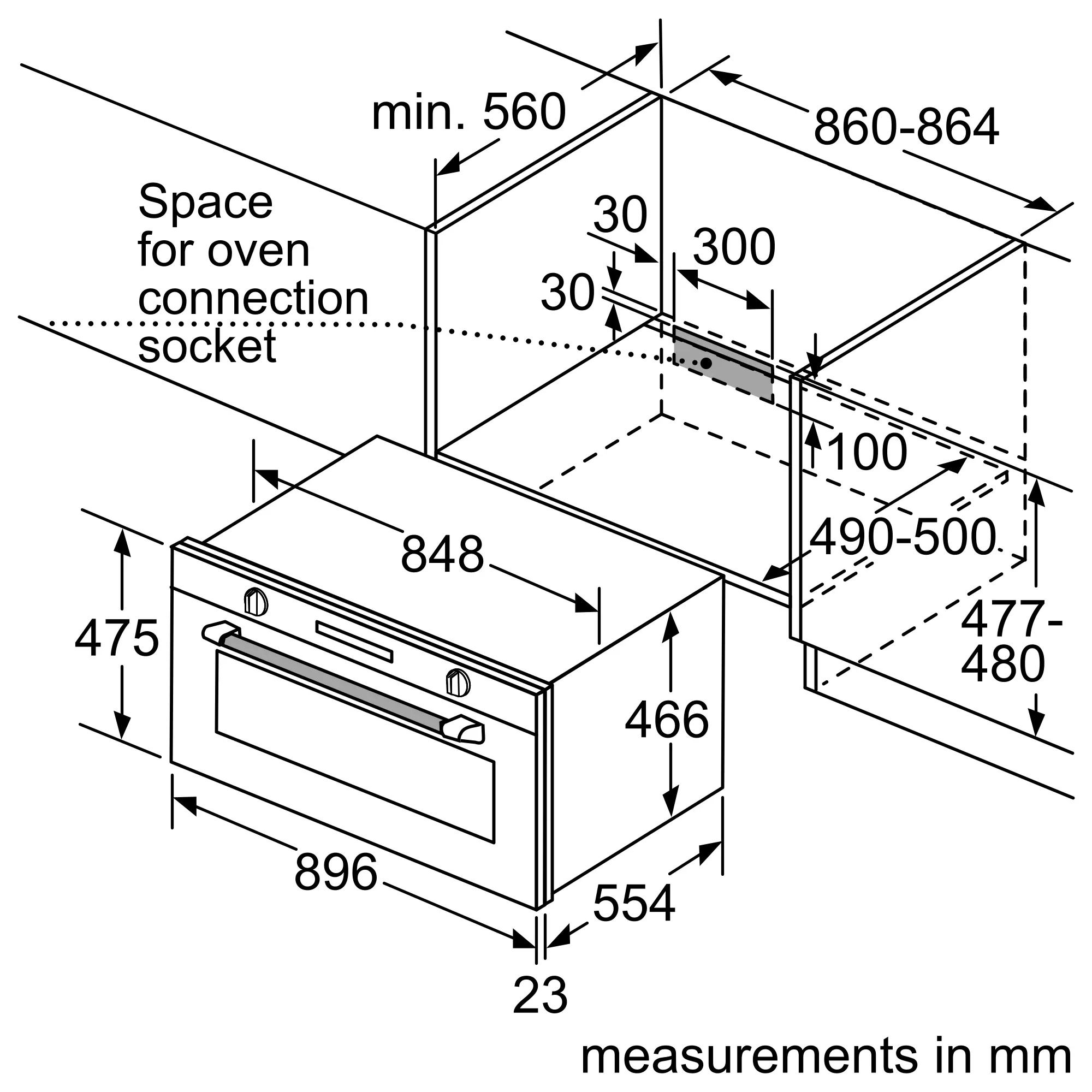

Minimum height for installation
477 mm
Maximum height for installation
480 mm
Minimum width for installation
860 mm
Maximum width for installation
864 mm
Depth for installation
560 mm
Net weight
53.0 kg
Length electrical supply cord
115 cm
1 / 0
Plug type
No plug (electrical connection by electrician)
Connecting cable type
1-phase
Length electrical supply cord
115 cm
Voltage
220-240 V
Connection rating
3100 W
Fuse protection
16 A
Included user manuals
[DE, EL, EN, FR, HE, IT, NL]
cookm coolstart
No
Fast preheat
Yes
Pizza setting
Yes
Crisp function
No
Air Fry function
No
Sensors
Not applicable
Hotair
hot air
Cooking-Assistant in Home Connect App
No
Voice control via voice assistant
No
Automatic door opening via voice control
No
Connected appliances with Home Connect
No
