Technical Overview
Product name/family
gas hob w integrated controls
Type of control setting and signalling devices
Knob
Frame type
Flush or surface mounted
Number of gas burners
5
Number of electric cooking zones
0
Material of pan supports
Cast iron separable
FlameSelect
No
Connected appliances with Home Connect
No
Awards
Specifications
Product name/family
gas hob w integrated controls
Installation type
Self-sufficient gas hobs
Cooktop type
Gas cooktop
Width
90 cm
Total number of positions that can be used at the same time
5
Number of gas burners
5
Number of electric cooking zones
0
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.0, 1 x 3.0, 1 x 4.0, 2 x 1.75 kW
Energy efficiency of hob
56.0 %
Frame type
Flush or surface mounted
Flushmount
Yes
Basic surface material
Tempered glass
Main colour of product
Black
Color of frame
Black
Flat burner
No
Material of pan supports
Cast iron separable
Glass protect
No
Included accessories
1 x wok attachment ring
Dimensions
45x915x520 mm
Dimensions of the packed product (HxWxD)
170x1125x665 mm
Width
90 cm

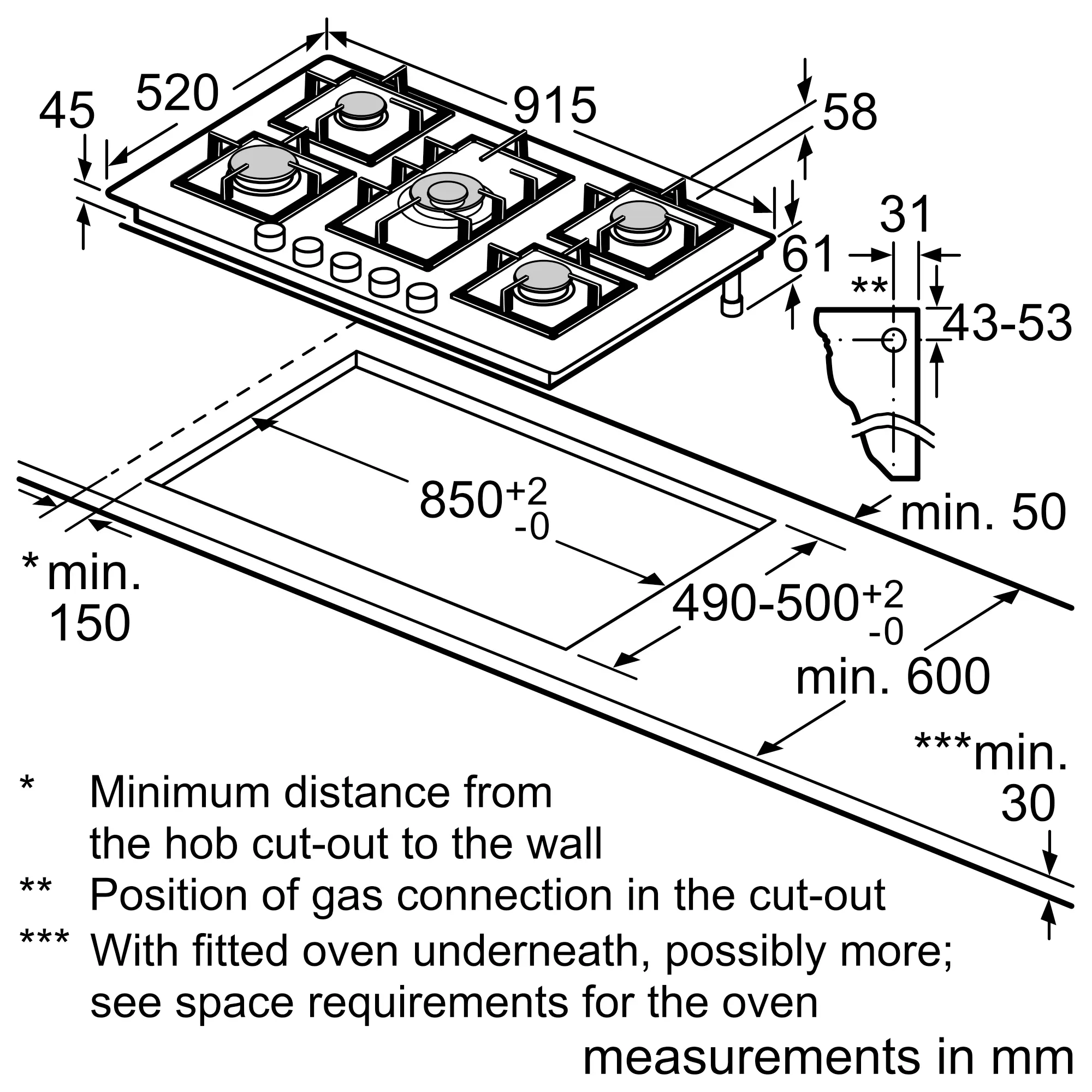

Required niche size for installation (HxWxD)
45 x 850-852 x 490-502 mm
Minimum worktop thickness
30 mm
1 / 0
Connection rating
1 W
Gas connection rating
11500 W
Fuse protection
3 A
Voltage
220-240 V
Length electrical supply cord
100 cm
Gas connection
rear, right
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Certified gas types
Nat gas H/E/(L) 20 (25) mbar
Type of control setting and signalling devices
Knob
PowerBoost
No
Illuminated Cooking Zones
No
PerfectFry
No
PerfectCook - cooking sensor
No
PerfectCook sensor ready (sensor sold separately)
No
Powermove
No
Automatic Setting Transfer
No
Quick Start
No
Keep warm function
No
FlameSelect
No
Dishwasher suitable pan support
No
Ignition system
Yes
Timer
Not applicable
Connected appliances with Home Connect
No
Residual heat indicator
No
Safety device
Flame failure safety device for each burner
Number of plate on indicators
0
