Technical Overview
Product name/family
Cooking zone ceramic
Type of control setting and signalling devices
touch control
Frame type
Standard design
Number of gas burners
0
Number of electric cooking zones
4
FlameSelect
No
Connected appliances with Home Connect
No
Highlights
Specifications
Product name/family
Cooking zone ceramic
Installation type
Self-sufficient electro hobs
Cooktop type
Radiant cooktop
Width
60 cm
Total number of positions that can be used at the same time
4
Number of gas burners
0
Number of electric cooking zones
4
Power of the heating elements (maximum values shown, depending on gas type)
1 x 2.0, 1 x 2.2, 2 x 1.2 kW
Energy consumption of hob
189.9 Wh/kg
Dimensions of the heating elements
2 x (14,5 cm Ø), 1 x (21,0 cm Ø), 1 x (18,0 cm Ø)
Frame type
Standard design
Flushmount
No
Basic surface material
Ceramic
Main colour of product
Black
Color of frame
Stainless steel
Flat burner
No
Glass protect
No
Dimensions
48x583x513 mm
Dimensions of the packed product (HxWxD)
100x750x590 mm
Width
60 cm

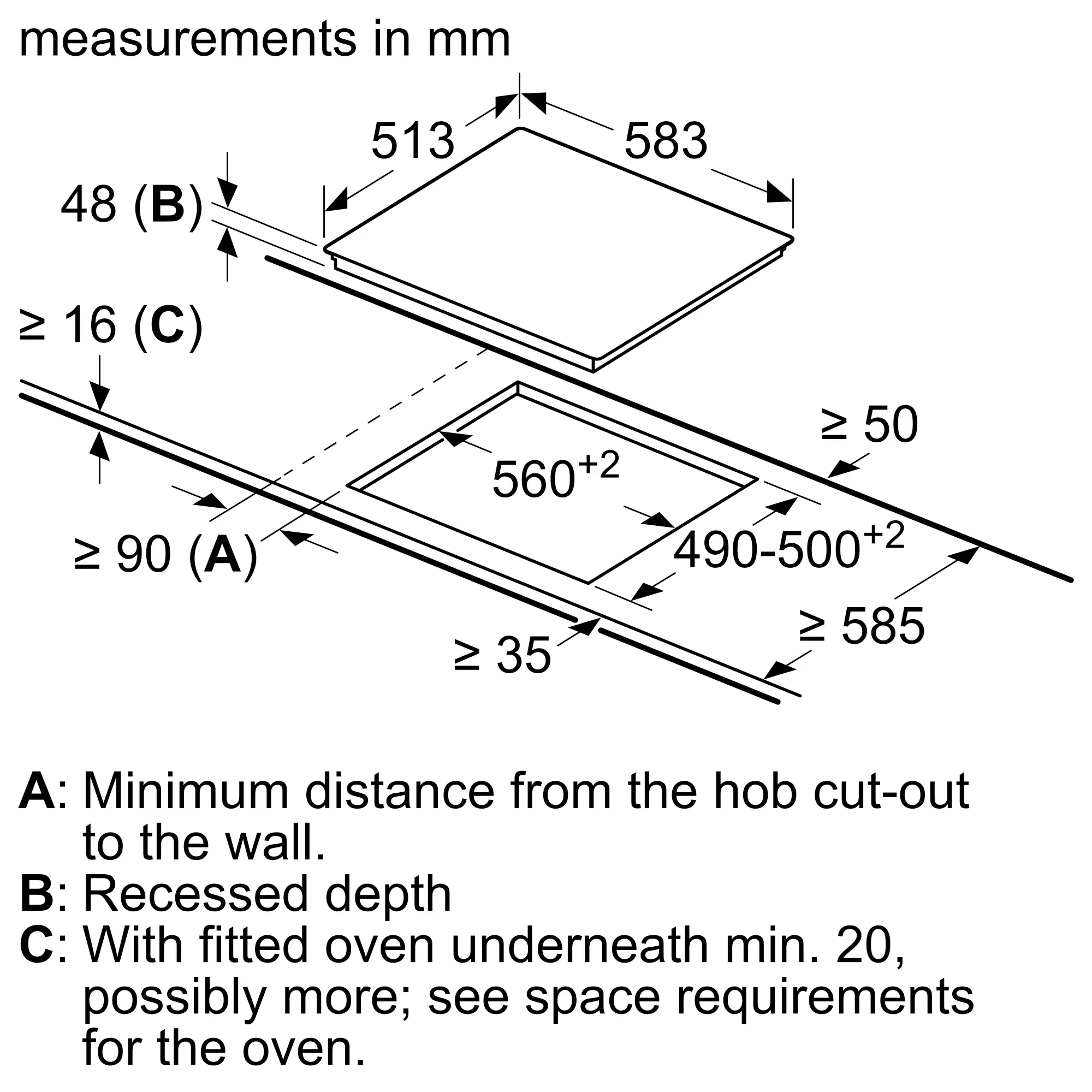

Required niche size for installation (HxWxD)
48 x 560-560 x 490-500 mm
Appliance height above the worktop
3.0 mm
Minimum worktop thickness
16 mm
1 / 0
Connection rating
5000 W
Voltage
220-240 V
Length electrical supply cord
100 cm
Plug type
No plug (electrical connection by electrician)
Included user manuals
[AR, EN]
Type of control
DirectSelect
Type of control setting and signalling devices
touch control
Number of power levels
17 power levels
Cooking zone flexibility
Two-ring cooking zone
PowerBoost
No
Illuminated Cooking Zones
No
PerfectFry
No
PerfectCook - cooking sensor
No
PerfectCook sensor ready (sensor sold separately)
No
Powermove
No
Automatic Setting Transfer
No
Quick Start
No
Keep warm function
No
FlameSelect
No
Dishwasher suitable pan support
No
Ignition system
No
Connected appliances with Home Connect
No
Residual heat indicator
yes
Safety device
Child lock, Safety shut-off,
Number of plate on indicators
1
