1 / 0
Technical Overview
Installation typology
Wall-mounted
Width
80 cm
Hob-based hood control
No
PerfectAir
No
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Max. air extraction
399 m³/h
Boost position air extraction
669 m³/h
Highlights
Specifications
Width
80 cm
Colour
Black
Installation typology
Wall-mounted
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
255 W
Type of control setting and signalling devices
touch control
Number of speed settings
3-stages + intensive setting
Max. air extraction
399 m³/h
Boost position air extraction
669 m³/h
Sound power at max. speed (2010/30/EC)
60 dB
Sound power boost (2010/30/EC)
69 dB
Max. air recirculation
349 m³/h
Boost position output recirculating
474 m³/h
Sound power at max. speed (recirculation)
69 dB
Sound power boost (recirculation)
76 dB
Grease filter material
Washable aluminium
Energy efficiency class
B
Total annual energy consumption
59.4 kWh/annum
Included user manuals
[DE, EN, ES, FR]

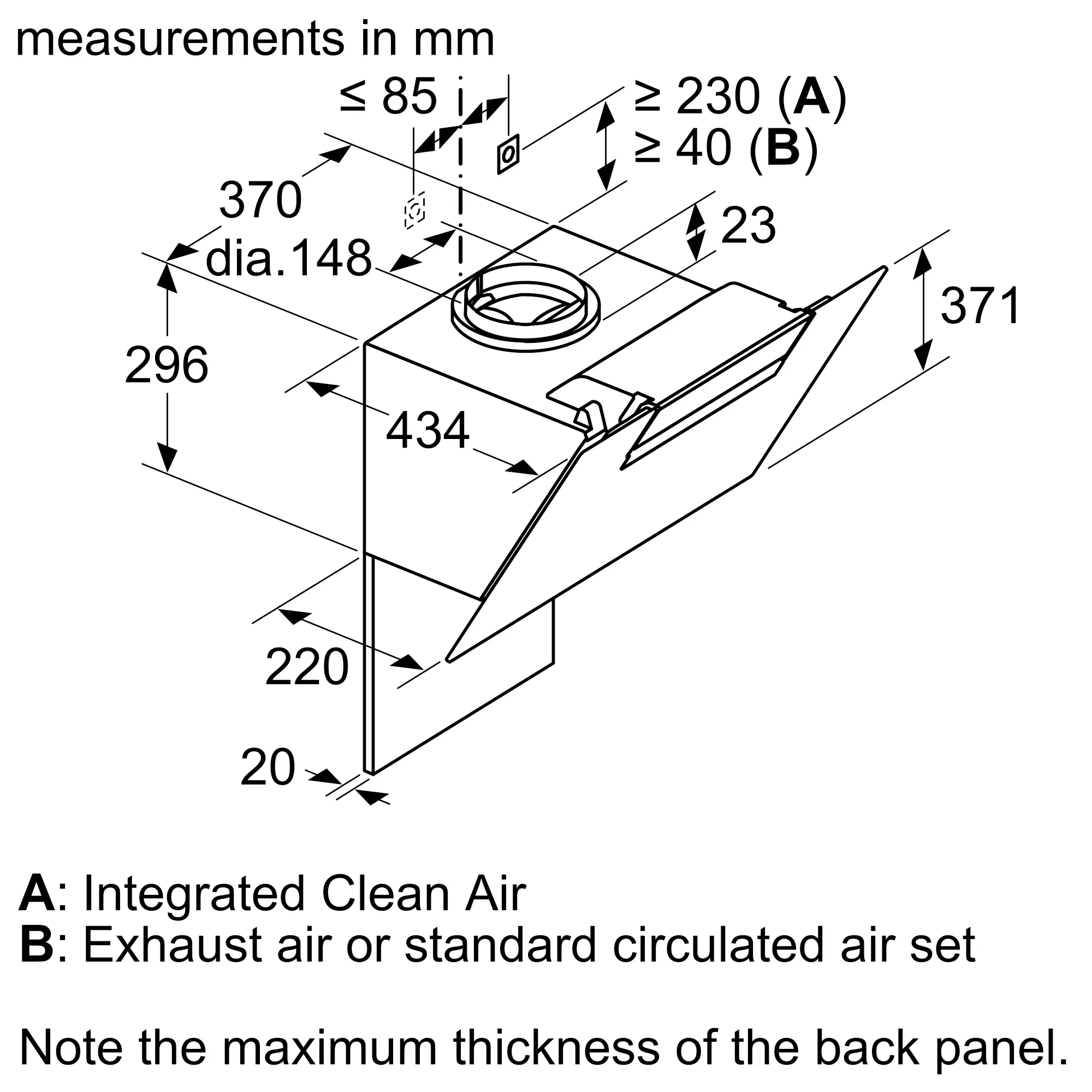

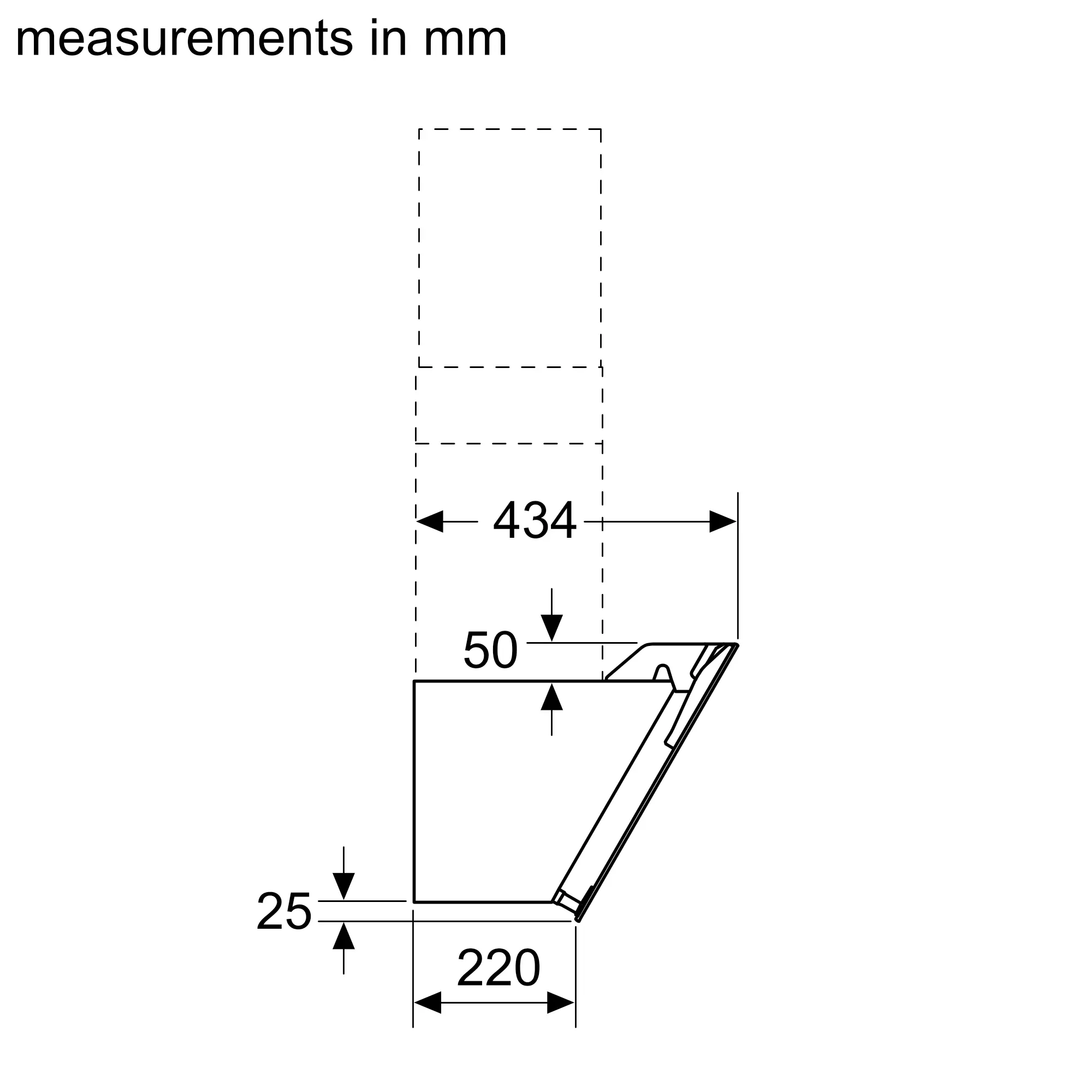

Height of the appliance
296 mm
Width of the appliance
800 mm
Depth of the product
434 mm
Dimensions of the packed product (HxWxD)
450x880x640 mm
Height of the chimney
484-770/554-830 mm

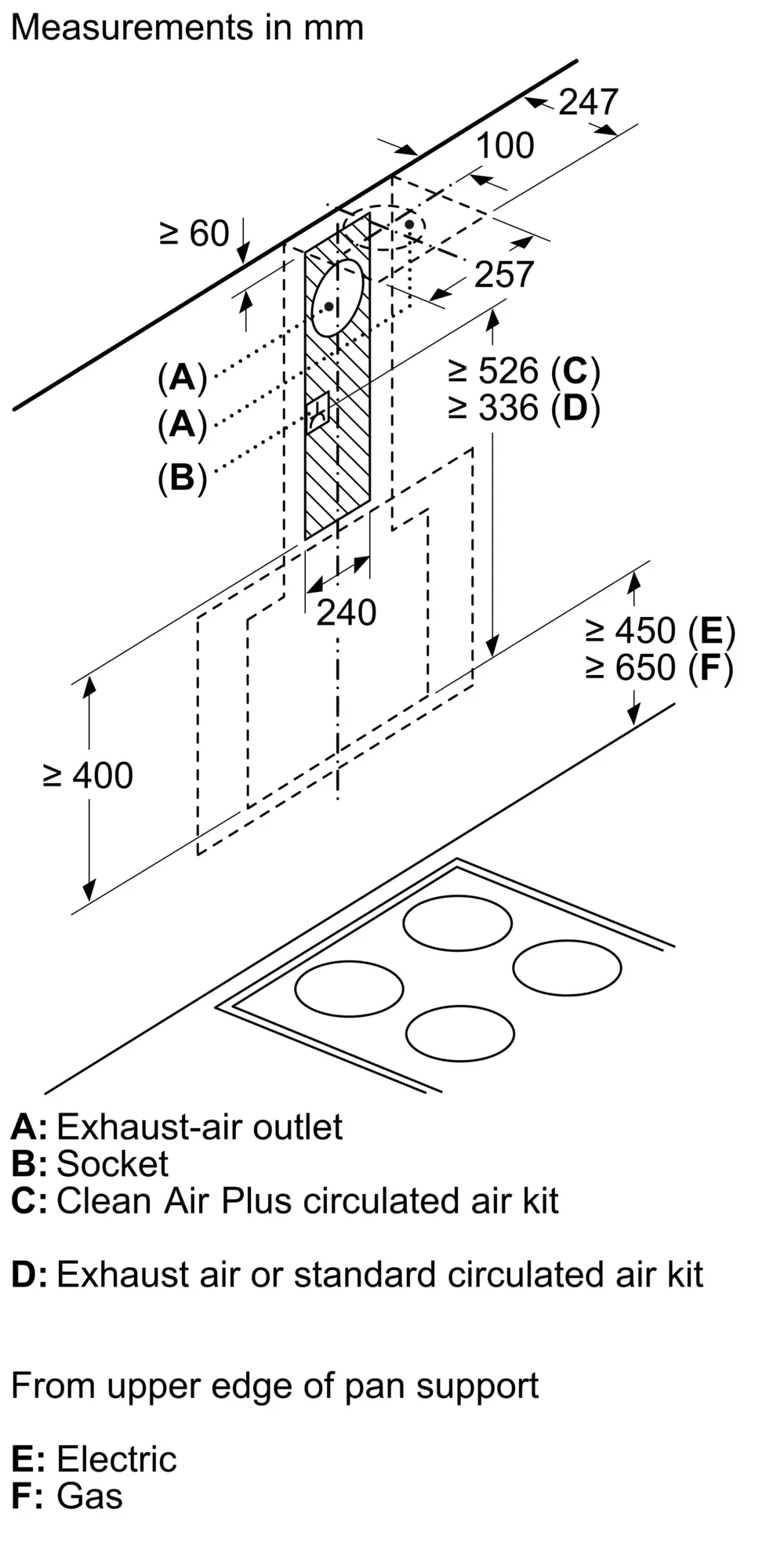

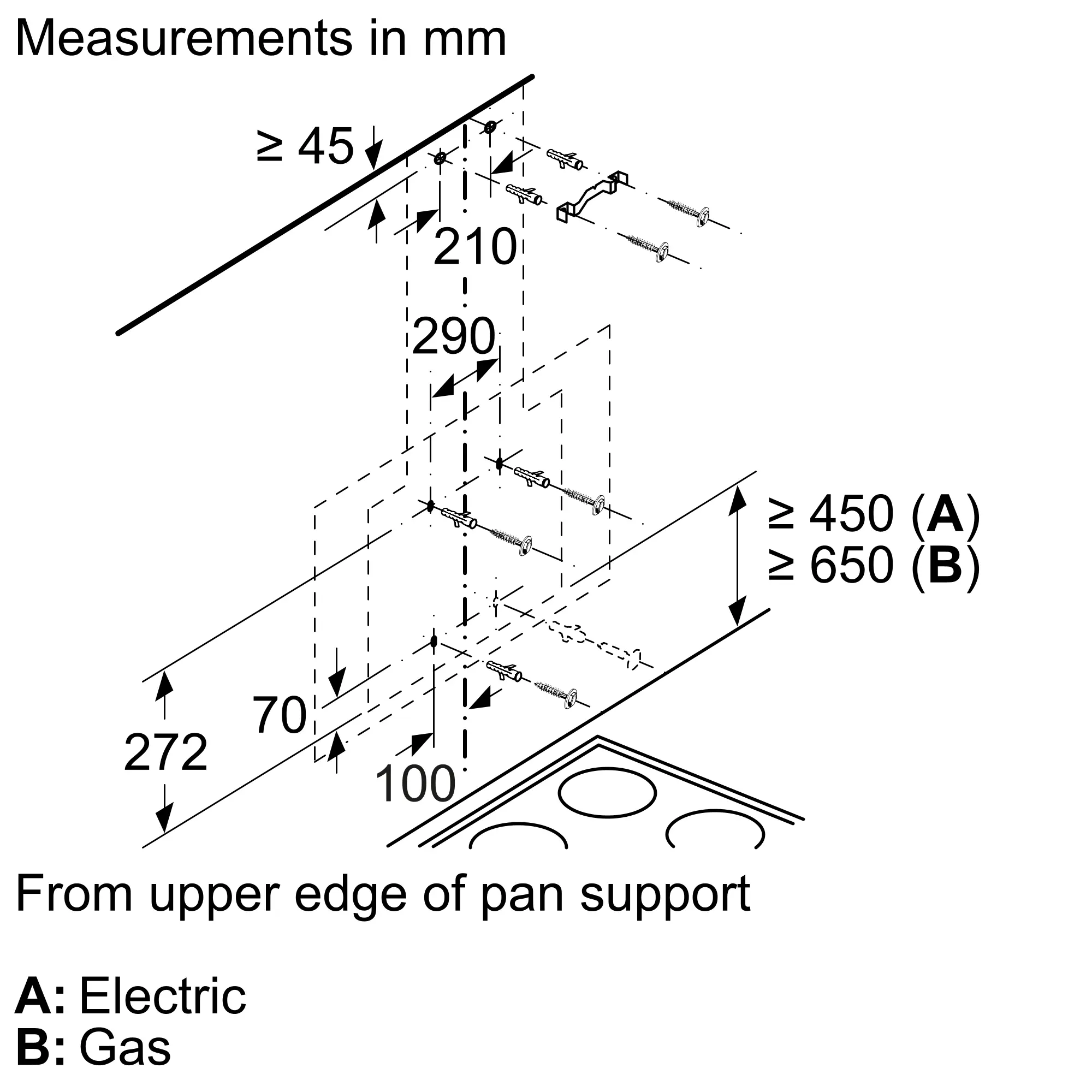

Minimum distance above an electric hob
450 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
130 cm
Net weight
15.0 kg
Handle bar
Not applicable

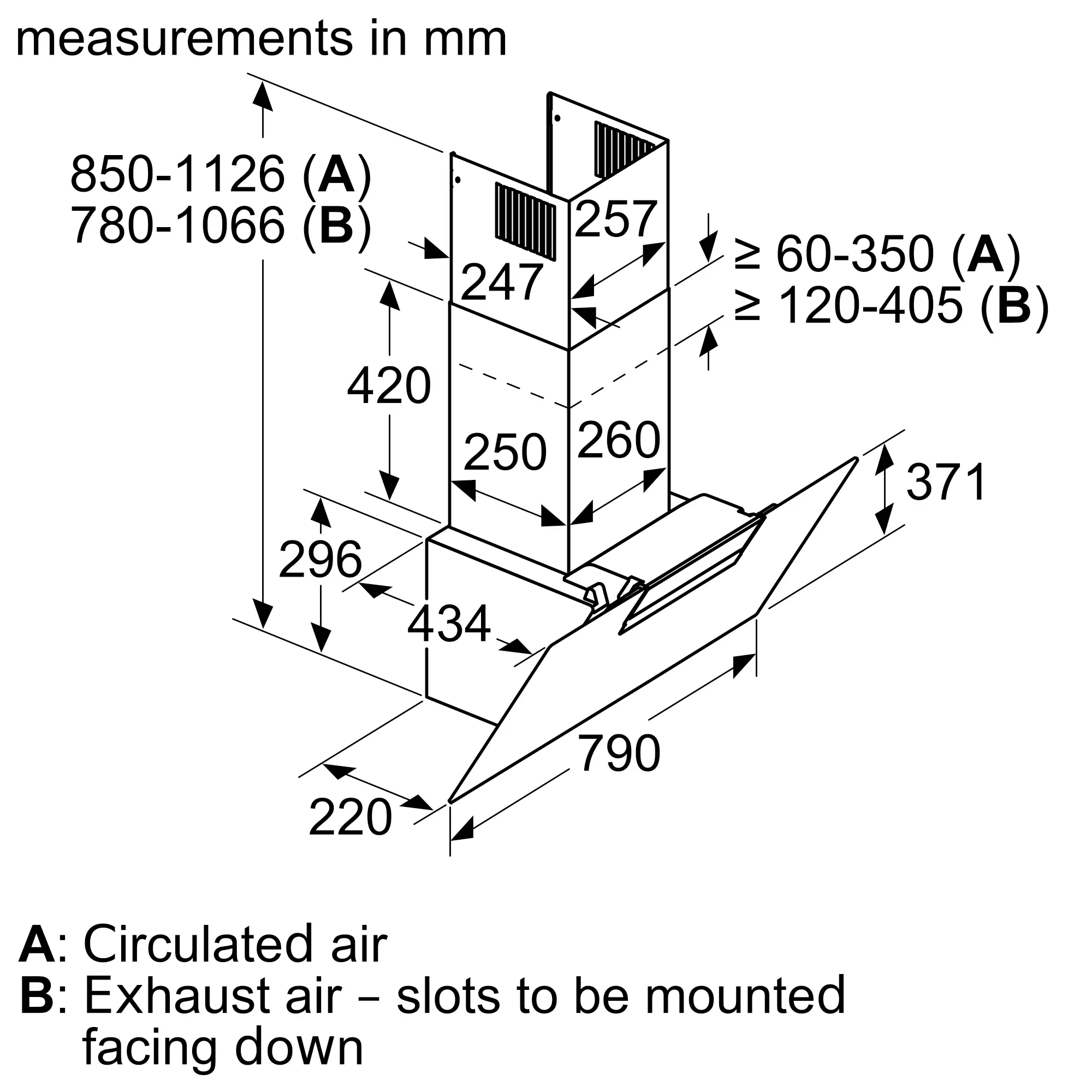

Appliance height exhaust air max
1066 mm
Appliance height exhaust air min
780 mm
Appliance height recirculating max
1126 mm
Appliance height recirculating min
850 mm
1 / 0
PerfectAir
No
Extremely quiet and powerful brushless BLDC motor
No
Extremely quiet
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total luminance
114 lux
Color temperature
Neutral (3.500 K)
Illumination type softlight
No
Light color tunable by Home Connect
No
Ambient light
No
Connected appliances with Home Connect
No
Hob-based hood control
No
Smart Hood Automatic
No
