Technical Overview
Dimensions
815x598x550 mm
Energy Efficiency Class (Regulation (EU) 2017/1369)
D
The water consumption of the eco programme in liters per cycle
9.0 l
Airborne acoustical noise emission class
B
Drying system
Heat exchanger
Basket system
Practical loading with Flex basket
Connected appliances with Home Connect
Yes
Water protection with warranty - AquaStop
Yes
Awards
Specifications
Installation typology
Integrated
Built-in / Free-standing
Built-in
Main colour of product
Not applicable
Removable top
No
Variable hinge for special installation situations
Yes
Column installation
Yes
Adjustable plinth
Both horizontal and vertical
Energy Efficiency Class (Regulation (EU) 2017/1369)
D
Energy Consumption for 100 cycles Eco Programme
85
The energy consumption of the eco programme in kWH per cycle
0.849 kWh/cycle
The water consumption of the eco programme in liters per cycle
9.0 l
Airborne acoustical noise emission class
B
Airborne acoustical noise emissions
42 dB(A) re 1 pW
Programme duration
4:30 h
Maximum number of place settings
14
List of programmes
Eco, Auto 45-65°C, Intensive, Quick L, Silence, Custom program
Additional operational options
Remote control, Extra Dry, Half load, SpeedPerfect Plus, Machine Care Programme
Water protection with warranty - AquaStop
Yes
Drying system
Heat exchanger
rackmatic normal
Yes
Tub material
Stainless steel
Voltage
220-240 V
Basket system
Practical loading with Flex basket
3rd Rack
3rd Rack 1.0
Cutlery system
Cutlery drawer
Number of Flip Tines in Upper Rack
2
Number of Flip Tines in Lower Rack
2
Number of cup racks in the upper basket
2
Number of cup racks in the lower basket
2
Anti-slip protection in the upper basket
No
Glass holder in the lower basket
No
Adjustable upper basket
Rackmatic 3-stage

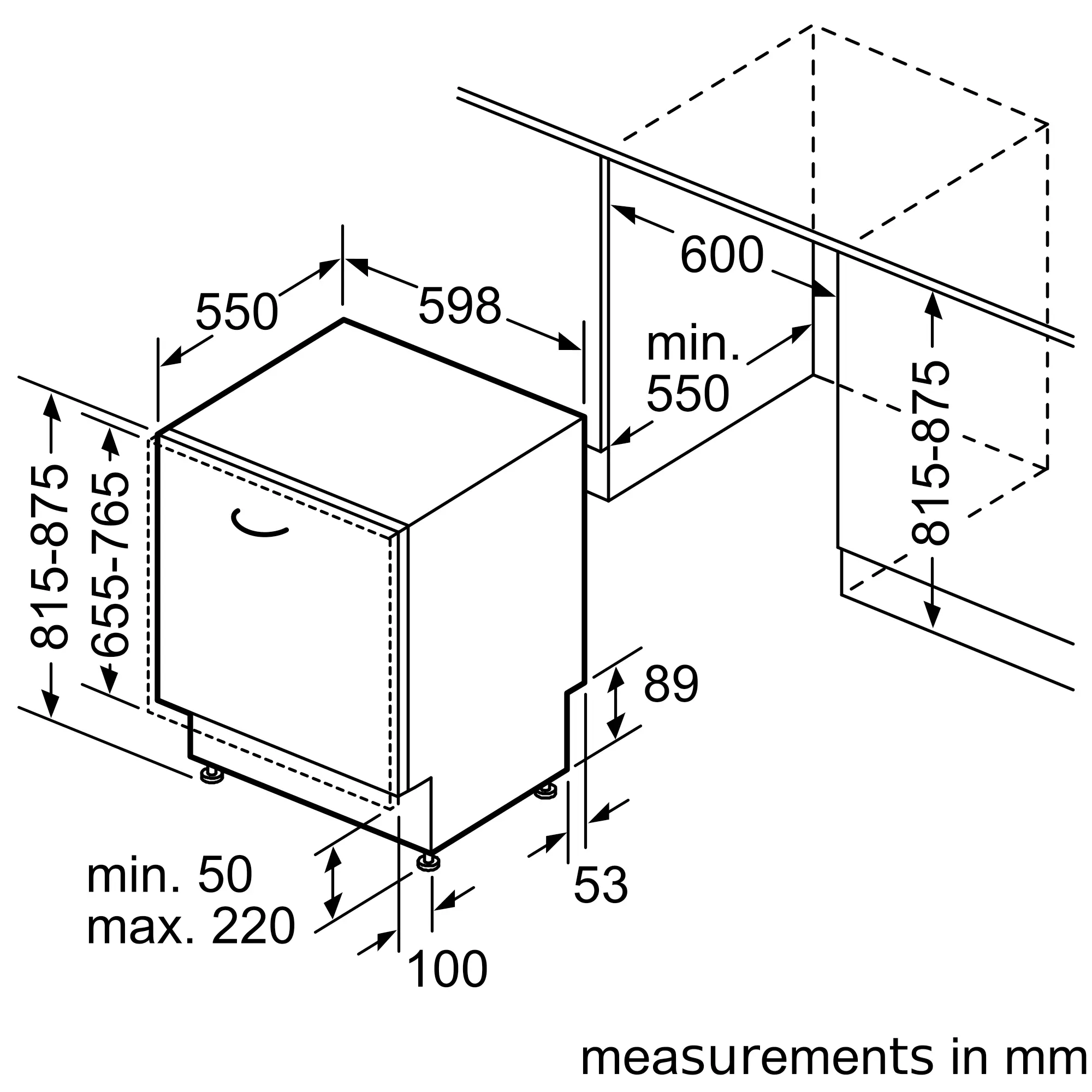

Dimensions
815x598x550 mm
Dimensions of the packed product (HxWxD)
880x660x670 mm
Net weight
35.6 kg
Depth with open door 90 degree
1150 mm
Minimum height for installation
815 mm
Maximum height for installation
875 mm
Minimum width for installation
600 mm
Maximum width for installation
608 mm
Depth for installation
550 mm
Weight furniture front (min - max)
4.5 - 11 kg
Height of removable worktop
0 mm
1 / 0
Door-opening sensor
No
TFT display
No
Interior light
No
Progress indicator
Accoustic signal
Start delay time max (h)
24 h
Precise Glass Protection
No
Extremely quiet and powerful brushless BLDC motor
Yes
aquasensor
Yes
Water management system
No
Detergent detection
Yes
Connected appliances with Home Connect
Yes
Home Connect Features
Remote Monitoring and Control
Add-On functions via Home Connect app
Hygiene Plus, Silence on Demand
Water protection with warranty - AquaStop
Yes
Child safety devices
No
