Technical Overview
Dimensions
51x592x522 mm
Cooktop type
Induction cooktop
Total number of positions that can be used at the same time
4
Frame type
Frameless
PerfectFry
No
Type of control
TouchSelect
Cooking zone flexibility
Ring Zone
Connected appliances with Home Connect
No
Highlights
Awards
Specifications
Cooktop type
Induction cooktop
Basic surface material
Ceramic
Main colour of product
Black
Frame type
Frameless
Glass protect
No

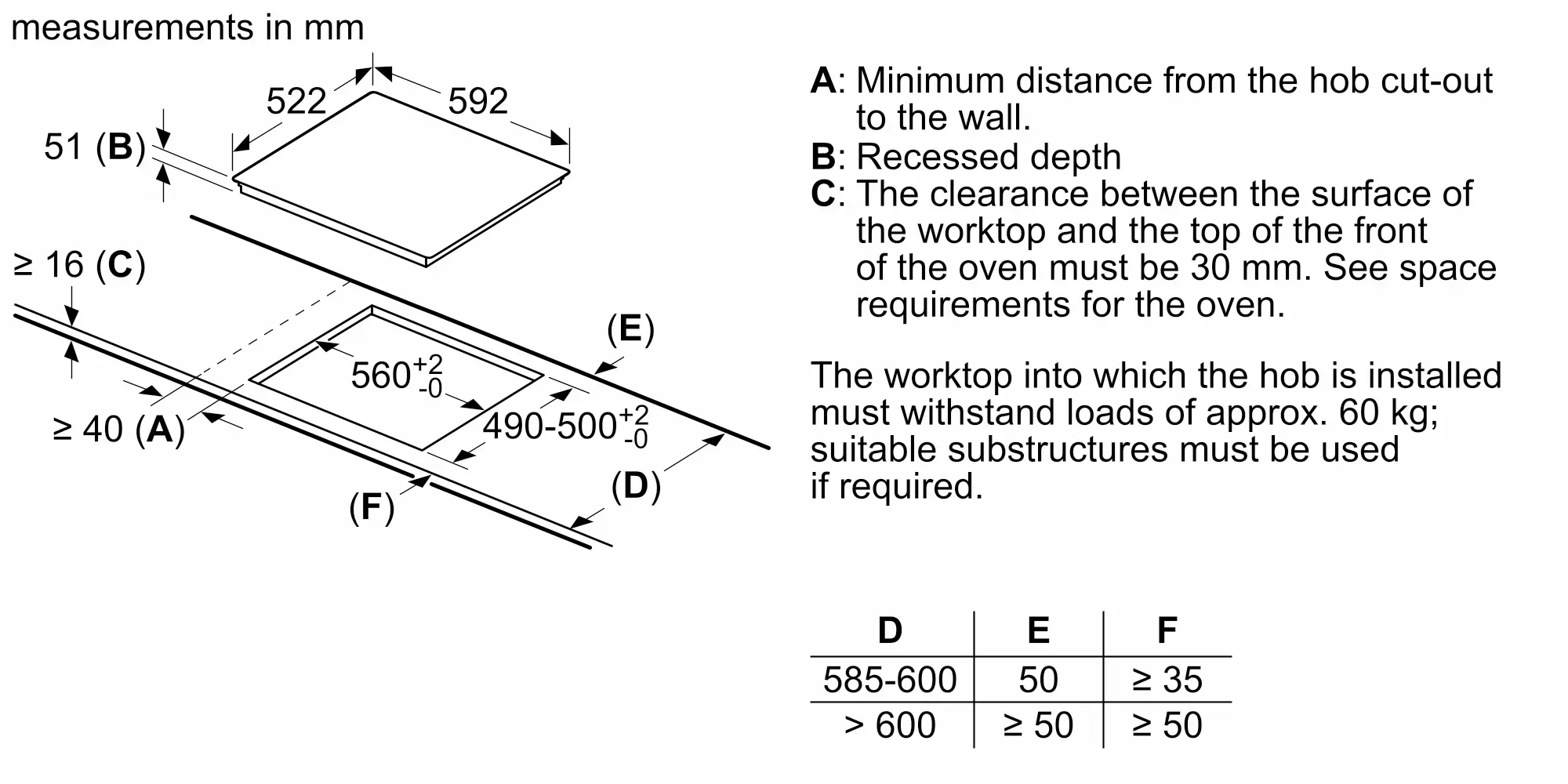

Dimensions
51x592x522 mm
Dimensions of the packed product (HxWxD)
130x753x610 mm
Width
60 cm

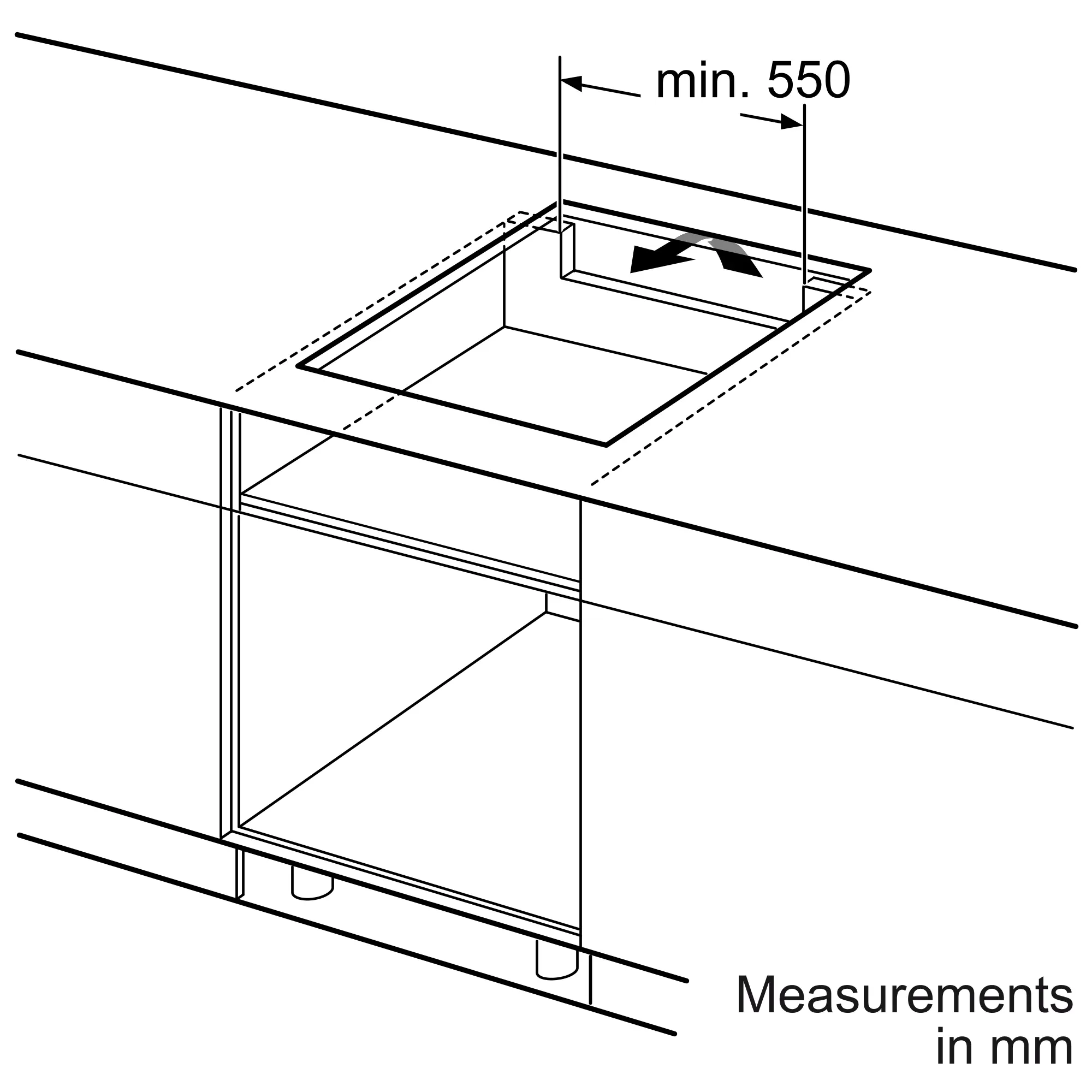

Required niche size for installation (HxWxD)
51 x 560-560 x 490-500 mm
Minimum worktop thickness
16 mm
Connection rating
3700 W
Length electrical supply cord
110 cm
Plug type
Gardy plug w/ earthing
Total number of positions that can be used at the same time
4
Cooking zone flexibility
Ring Zone
Dimensions of the heating elements
2 x (18,0 cm Ø), 1 x (14,5 cm Ø), 1 x (21,0 cm Ø)
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.4 (2.2), 1 x 2.2 (3.7), 2 x 1.8 (3.1) kW
Number of electric warming zones
0
Type of control
TouchSelect
Illuminated Cooking Zones
No
Glass protect
No
Favourite button
No
Number of power levels
17 power levels
Keep warm function
No
Timer
Switch-off timer (on appliance), Count-down timer (on appliance)
Power Boost
All cooking zones
Automatic boil start
No
Automatic connection/ separation of the cooking zones
No
Increase/ decrease power level via Move Mode
No
Automatic Setting Transfer
No
Automatic zone selection
No
Quick Start
Yes
Restart
Yes
Quick switch-off
Yes
Energy consumption display
No
Find the right setting with Dish assistant
No
PerfectCook - cooking sensor
No
Avoid scorching with frying sensor
Not applicable
Connected appliances with Home Connect
No
Hob-based hood control
No
Smart Hood Automatic
No
Smart Home Trigger for individual configuration
No
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
No
Residual heat indicator
yes
Safety device
Child lock, Safety shut-off,
Number of plate on indicators
0
