Technical Overview
Dimensions
51x802x522 mm
Cooktop type
Induction cooktop
Total number of positions that can be used at the same time
5
Frame type
Facet
PerfectFry
Yes
Type of control
DirectSelect
Cooking zone flexibility
Ring Zone
Connected appliances with Home Connect
Yes
Awards
Specifications
Cooktop type
Induction cooktop
Basic surface material
Ceramic
Main colour of product
Black
Frame type
Facet
Glass protect
No
Dimensions
51x802x522 mm
Dimensions of the packed product (HxWxD)
130x950x600 mm
Width
80 cm
Required niche size for installation (HxWxD)
51 x 750-750 x 490-500 mm
Minimum worktop thickness
16 mm
Connection rating
7400 W
Length electrical supply cord
110 cm
Plug type
No plug (electrical connection by electrician)
Total number of positions that can be used at the same time
5
Cooking zone flexibility
Ring Zone

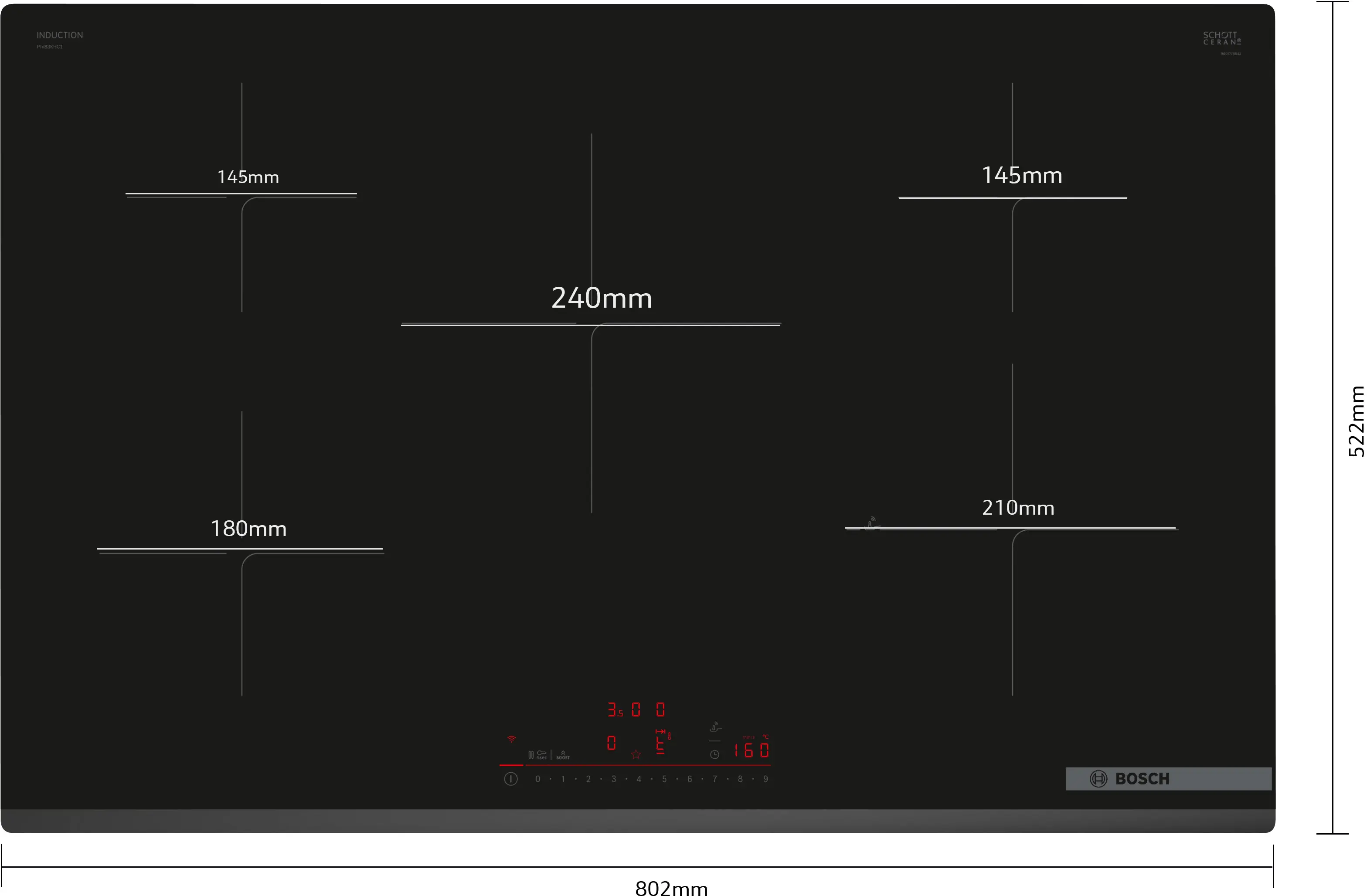

Dimensions of the heating elements
1 x (18,0 cm Ø), 2 x (14,5 cm Ø), 1 x (24,0 cm Ø), 1 x (21,0 cm Ø)
Power of the heating elements (maximum values shown, depending on gas type)
1 x 2.0 (3.1), 2 x 1.6 (2.2), 2 x 2.5 (3.7) kW
Number of electric warming zones
0
Type of control
DirectSelect
Illuminated Cooking Zones
No
Glass protect
No
Favourite button
Yes
Number of power levels
17 power levels
Keep warm function
No
Timer
Switch-off timer (on appliance), Count-down timer (can be chosen instead of switch-off timer)
Power Boost
All cooking zones
Pan boost
selectable via Favourite button/Home Connect App
Automatic boil start
No
Automatic connection/ separation of the cooking zones
No
Increase/ decrease power level via Move Mode
No
Automatic Setting Transfer
No
Automatic zone selection
No
Quick Start
Yes
Restart
Yes
Quick switch-off
No
Energy consumption display
No
Find the right setting with Dish assistant
Available only via Home Connect App (for appliances connected to Home Connect)
PerfectCook - cooking sensor
No
Avoid scorching with frying sensor
PerfectFry Plus frying sensor
Connected appliances with Home Connect
Yes
Home Connect Features
iService Remote, Remote monitoring
Hob-based hood control
Yes
Smart Hood Automatic
Yes, with matching hood and connected Home Connect account
Smart Home Trigger for individual configuration
via Favourite button (available with connected Home Connect account, partner service required)
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
Yes
Residual heat indicator
yes
Safety device
Child lock, Safety shut-off,
Number of plate on indicators
0
