Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
5
FlameSelect
Yes
Frame type
Frameless
Basic surface material
Tempered glass
Material of pan supports
Cast iron separable
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Awards
Specifications
Basic surface material
Tempered glass
Main colour of product
Black
Frame type
Frameless
Flushmount
No
Material of pan supports
Cast iron separable
Knob illumination
Illuminated buttons
Knob Material
Full metal
Flat burner
No
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Other certified gas types
Nat gas L/LL G25/20mbar(DE), Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL), Liquid gas 50 mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Width
90 cm
Dimensions
45x915x520 mm
Dimensions of the packed product (HxWxD)
170x1110x660 mm

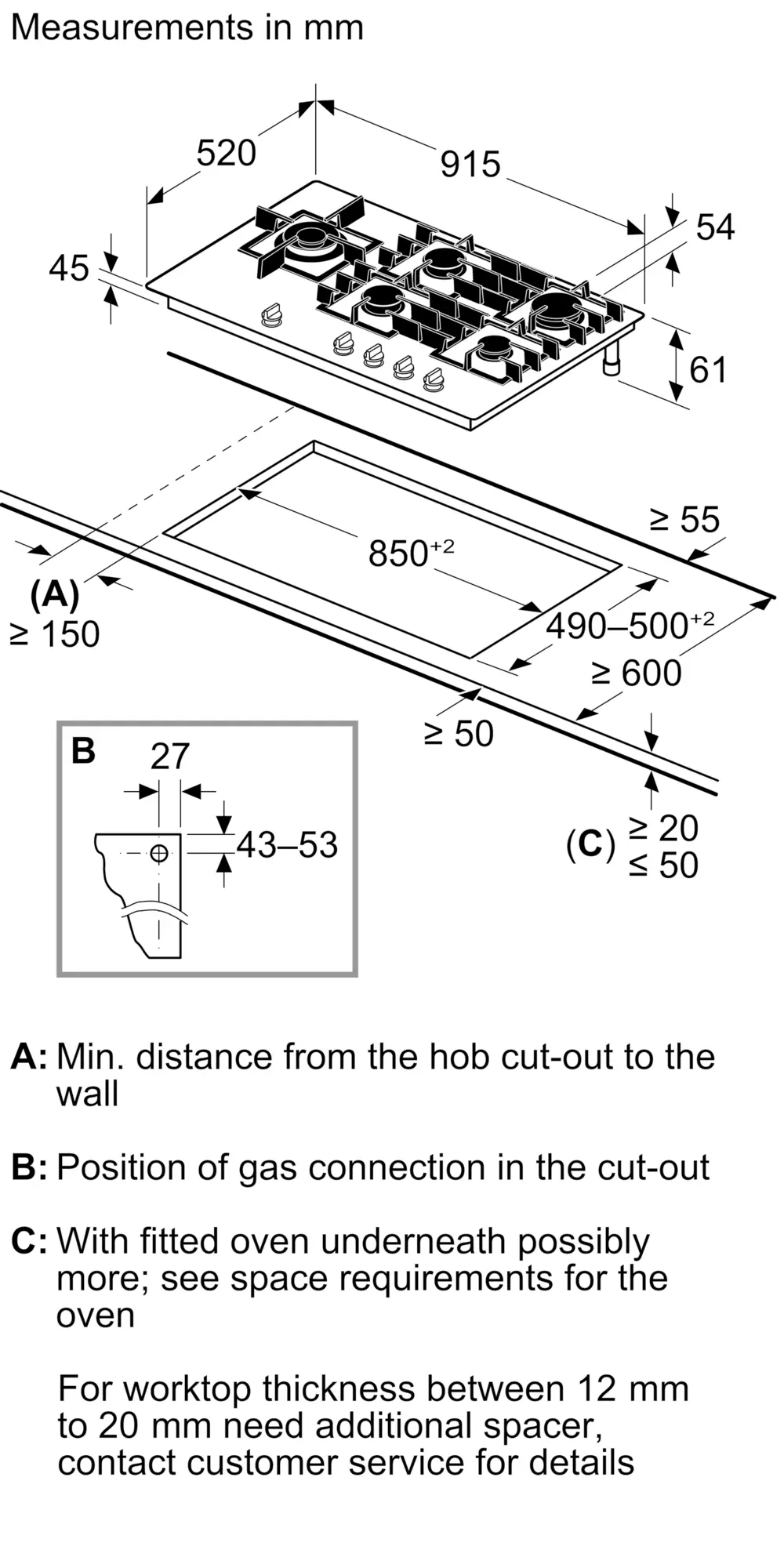

Required niche size for installation (HxWxD)
45 x 850-850 x 490-500 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
20 mm / 12 mm
Length electrical supply cord
100 cm
Voltage
220-240 V
Plug type
No plug (electrical connection by electrician)
Gas connection rating
12500 W
Total number of positions that can be used at the same time
5
Dual wok burner
Yes
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.0, 1 x 3.0, 1 x 5.0, 2 x 1.75 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
FlameSelect
Yes
Display
Yes
Type of display
Electronic power level display
dishwasher safe pan support
Yes
Removable knobs for easy cleaning
Yes
Location of control panel
Front
Type of control setting and signalling devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Timer
Count-down timer (on appliance)
Connected appliances with Home Connect
Yes
Home Connect Features
iService Remote, Remote monitoring
Hob-based hood control
Yes
Smart Hood Automatic
Yes, with matching hood and connected Home Connect account
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
Yes
Safety device
Flame failure safety device for each burner
Residual heat indicator
yes
Main on/off switch
No
