Series 2 wall-mounted cooker hood 60 cm BlackDWB66BC60
DWB66BC60
1 / 0
Series 2 wall-mounted cooker hood 60 cm BlackDWB66BC60
DWB66BC60
Datasheet
Find a local Dealer
Find a local dealer in your vicinity
Series 2 wall-mounted cooker hood 60 cm BlackDWB66BC60
DWB66BC60
Datasheet
Find a local Dealer
Find a local dealer in your vicinity
Technical Overview
Installation typology
Wall-mounted
Width
60 cm
Hob-based hood control
No
Noise level
69 dB(A) re 1 pW
PerfectAir
No
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Max. air extraction
621 m³/h
Awards
Specifications
Width
60 cm
Colour
Black
Installation typology
Wall-mounted
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
215 W
Type of control setting and signalling devices
Button
Number of speed settings
3
Max. air extraction
621 m³/h
Sound power at max. speed (2010/30/EC)
69 dB
Max. air recirculation
422 m³/h
Sound power at max. speed (recirculation)
74 dB
Grease filter material
Washable aluminium
Energy efficiency class
B
Total annual energy consumption
46.5 kWh/annum
Included user manuals
[DE, ES, NL, PT]
Voltage
220-240 V

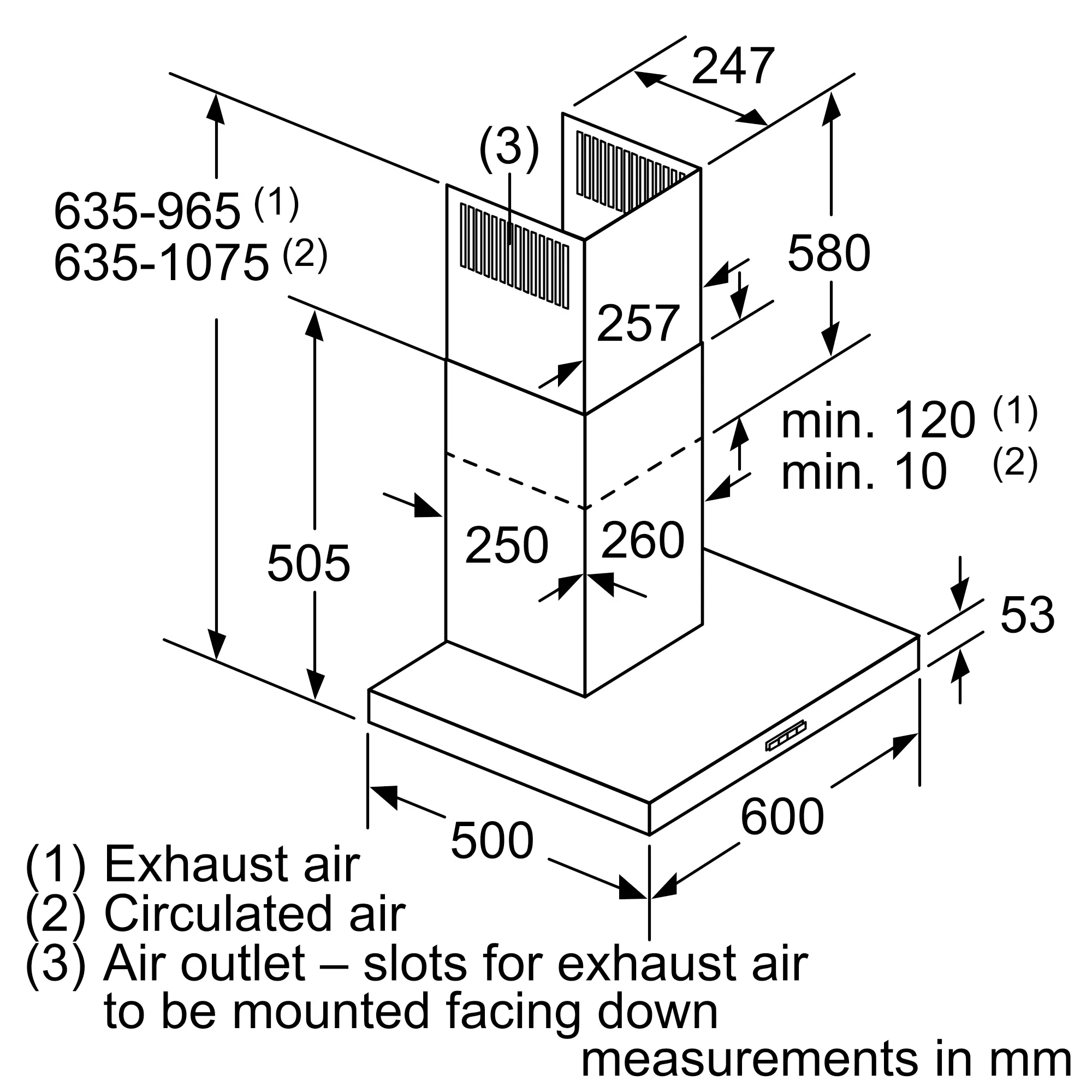

Height of the appliance
53 mm
Width of the appliance
600 mm
Depth of the product
500 mm
Dimensions of the packed product (HxWxD)
490x650x730 mm
Height of the chimney
583-912/583-1022 mm

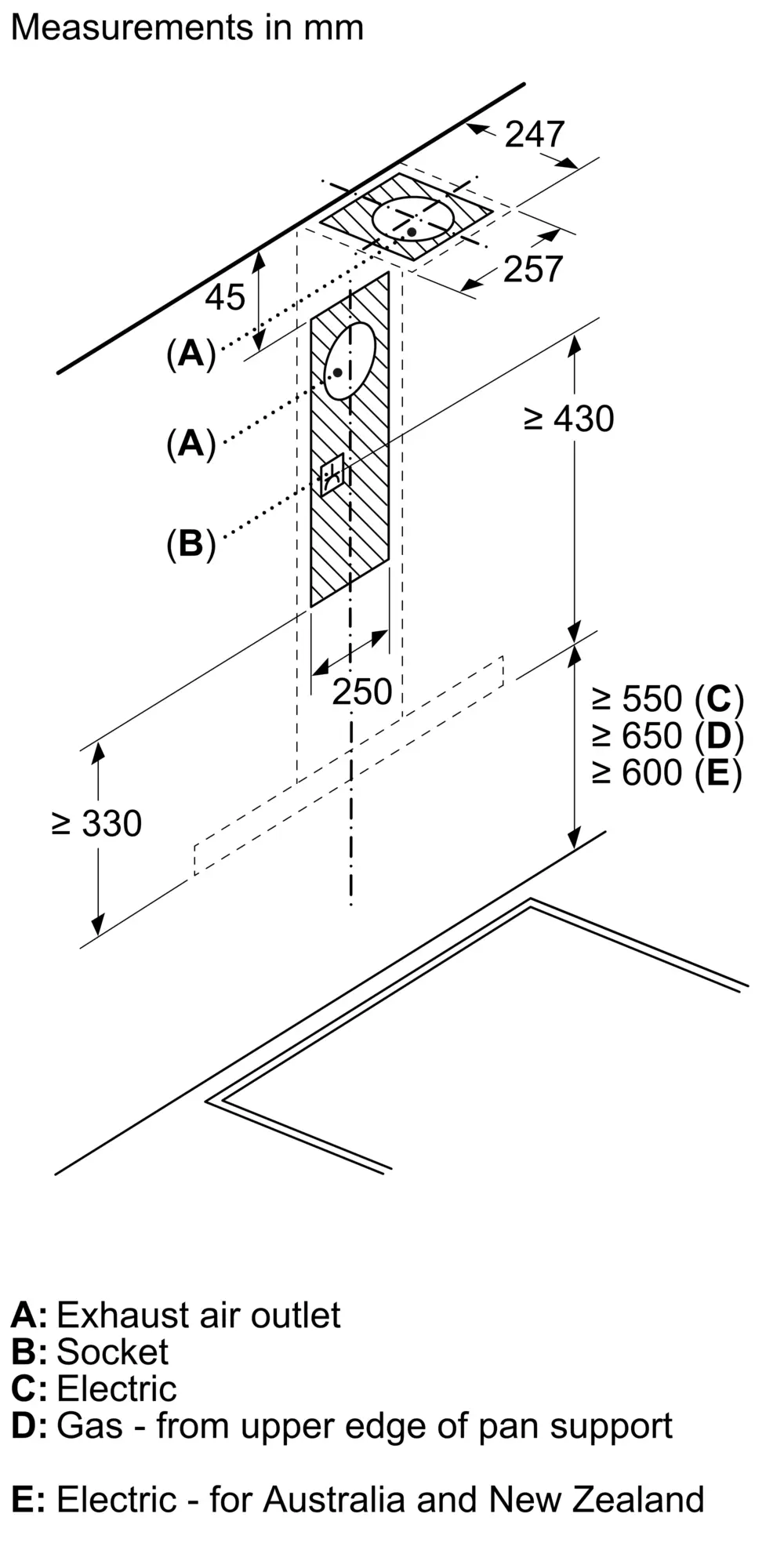

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
130 cm
Net weight
12.5 kg
Handle bar
Not applicable
Appliance height exhaust air max
965 mm
Appliance height exhaust air min
635 mm
Appliance height recirculating max
1075 mm
Appliance height recirculating min
635 mm
1 / 0
PerfectAir
No
Extremely quiet and powerful brushless BLDC motor
No
Extremely quiet
No
Clean filter reminders
No
Boost position
No
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
99 lux
Color temperature
Neutral (3.500 K)
Illumination type softlight
No
Light color tunable by Home Connect
No
Ambient light
No
Connected appliances with Home Connect
No
Hob-based hood control
No
Smart Hood Automatic
No
