Technical Overview
Dimensions
223x592x522 mm
Cooktop type
Induction with hood
Total number of positions that can be used at the same time
4
Frame type
Frameless
Max. air extraction
500 m³/h
Sound power at max. speed (2010/30/EC)
69 dB
Connected appliances with Home Connect
No
Awards
Specifications
Main colour of product
Black
Width
60 cm
Total number of positions that can be used at the same time
4
Dimensions of the heating elements
2 x (19,0 x 21,0 cm), 1 x (14,5 cm Ø), 1 x (21,0 cm Ø)
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.4 (2.2), 3 x 2.2 (3.7) kW
Frame type
Frameless
Number of radiant plates
0
Number of induction plates
4
Power Boost
All cooking zones
Max. air extraction
500 m³/h
Boost position air extraction
622 m³/h
Max. air recirculation
441 m³/h
Boost position output recirculating
595.0 m³/h
Sound power at max. speed (2010/30/EC)
69 dB
Sound power boost (2010/30/EC)
74 dB
Noise level
69 dB(A) re 1 pW
Energy consumption of hob
178.3 Wh/kg
Included accessories
1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

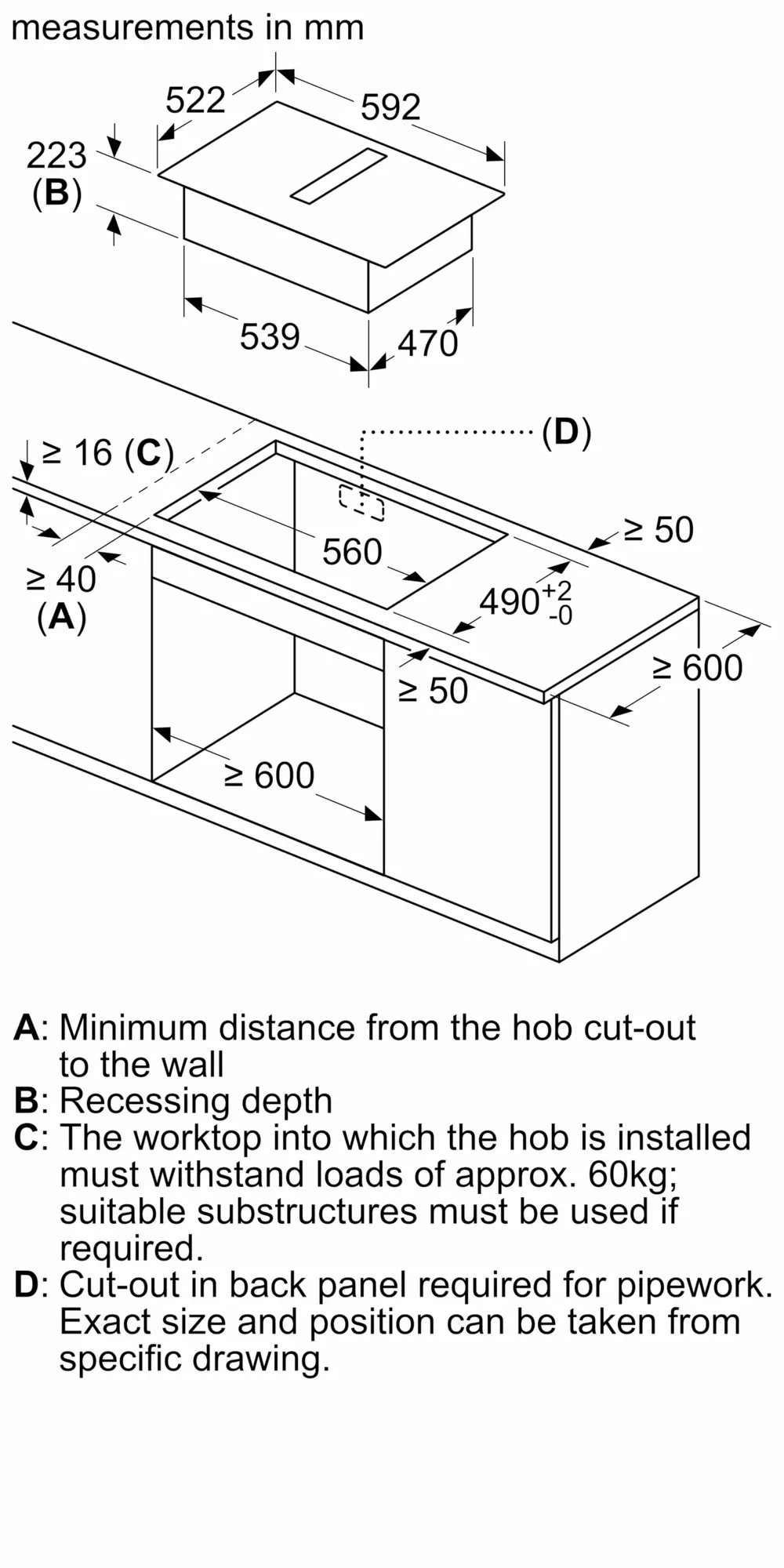

Dimensions
223x592x522 mm
Dimensions of the packed product (HxWxD)
430x690x660 mm
Minimum height for installation
490 mm
Maximum height for installation
490 mm
Minimum width for installation
560 mm
Maximum width for installation
560 mm
Depth for installation
223 mm
1 / 0
Connection rating
7400 W
Fuse protection
GENERAL.N_A A
Voltage
220-240/380-415 V
Length electrical supply cord
110 cm
Plug type
No plug (electrical connection by electrician)
Included user manuals
[DE, ES, FR, PT]
Type of control
TouchSelect
Number of power levels
17 power levels
Cooking zone flexibility
Combi Zone
PowerBoost
Yes
Glass protect
No
PerfectFry
No
PerfectCook - cooking sensor
No
PerfectCook sensor ready (sensor sold separately)
No
Powermove
No
Automatic Setting Transfer
No
Quick Start
Yes
Keep warm function
No
Timer
Yes
Timer
Switch-off timer (on appliance), Count-down timer (on appliance)
Extremely quiet and powerful brushless BLDC motor
Yes
Boost position
Yes
Delay Shut off modes
Yes
Clean filter reminders
Yes
Number of speed settings
3-stages + intensive setting
Connected appliances with Home Connect
No
Safety device
Child lock, Safety shut-off, ,
Residual heat indicator
yes
