Cooker hoods Venting hobs PVQ711H26E

Series 6 Induction hob with integrated ventilation system 70 cm surface mount without frame

PVQ711H26E

Energy label B from G to A

In a range from: A+++ to D

Find a local Dealer

Find a local dealer in your vicinity

Induction hob with integrated ventilation system 70 cm surface mount without frame

Energy label B from G to A

In a range from: A+++ to D

Technical Overview

Product name/family

Cooking zone ceramic

Dimensions

223 x 710 x 522 mm

Main colour of product

Black

Frame type

Frameless

Connected appliances with Home Connect

Yes

Specifications

Search specifications

General

Main colour of product

Black

Width

70 cm

Dimensions of the heating elements

1 x (38,0 x 21,0 cm), 1 x (38,0 x 21,0 cm)

Power of the heating elements (maximum values shown, depending on gas type)

4 x 2.5 (3.7) kW

Frame type

Frameless

Number of radiant plates

0

Number of induction plates

4

Power Boost

All cooking zones

Type of control setting and signalling devices

front

Max. air extraction

500 m³/h

Boost position air extraction

622 m³/h

Max. air recirculation

487 m³/h

Boost position output recirculating

595.0 m³/h

Sound power at max. speed (2010/30/EC)

69 dB

Sound power boost (2010/30/EC)

74 dB

Noise level

69 dB(A) re 1 pW

Energy consumption of hob

185.0 Wh/kg

Included accessories

1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

Size and weight

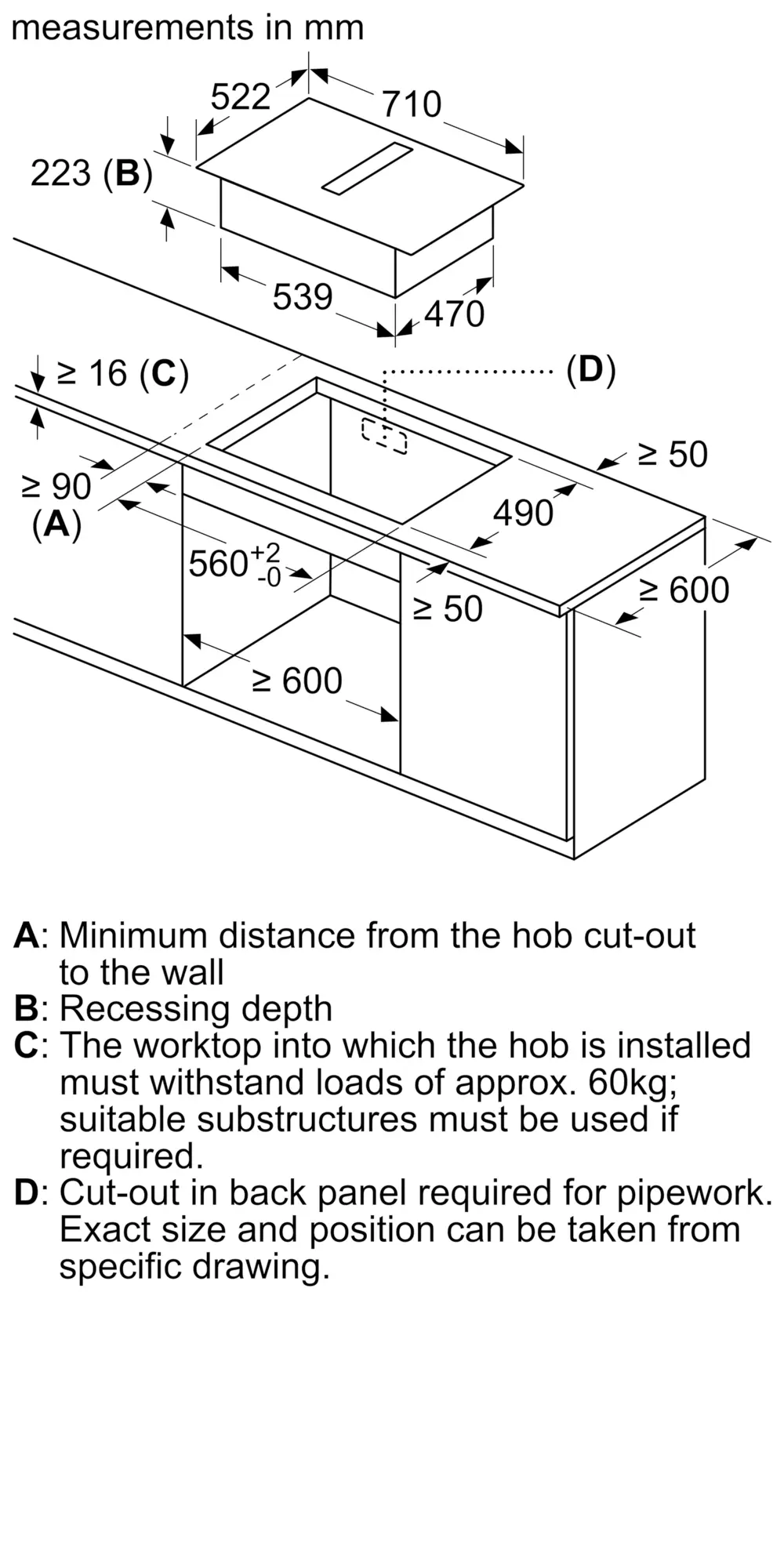

Dimensions

223 x 710 x 522 mm

Minimum height for installation

490 mm

Maximum height for installation

490 mm

Minimum width for installation

560 mm

Maximum width for installation

560 mm

Depth for installation

223 mm

Appliance height above the worktop

6.0 mm

Photo Nr. 1 of the product

Photo Nr. 2 of the product

Photo Nr. 3 of the product

Photo Nr. 4 of the product

Photo Nr. 5 of the product

Photo Nr. 6 of the product

Photo Nr. 7 of the product

Photo Nr. 8 of the product

Photo Nr. 9 of the product

Photo Nr. 10 of the product

Photo Nr. 11 of the product

Photo Nr. 12 of the product

Photo Nr. 13 of the product

Photo Nr. 14 of the product

Photo Nr. 15 of the product

Photo Nr. 16 of the product

Photo thumb Nr. 1 of the product

Photo thumb Nr. 2 of the product

Photo thumb Nr. 3 of the product

Photo thumb Nr. 4 of the product

Photo thumb Nr. 5 of the product

Photo thumb Nr. 6 of the product

Photo thumb Nr. 7 of the product

Photo thumb Nr. 8 of the product

Photo thumb Nr. 9 of the product

Photo thumb Nr. 10 of the product

Photo thumb Nr. 11 of the product

Photo thumb Nr. 12 of the product

Photo thumb Nr. 13 of the product

Photo thumb Nr. 14 of the product

Photo thumb Nr. 15 of the product

Photo thumb Nr. 16 of the product

Technical specifications

Connection rating

7400 W

Voltage

220-240/380-415 V

Length electrical supply cord

110.0 cm

Plug type

No plug (electrical connection by electrician)

Comfort hob

Type of control

DirectSelect

Number of power levels

17 power levels

Cooking zone flexibility

2 Combi Zones

PowerBoost

Yes

PerfectFry

Yes

PerfectCook - cooking sensor

No

PerfectCook sensor ready (sensor sold separately)

No

Powermove

No

Automatic Setting Transfer

No

Quick Start

Yes

Keep warm function

No

Timer

Yes

Comfort hood

Extremely quiet - EcoSilence Drive

Yes

Boost position

Yes

Delay Shut off modes

30R_12E min

Number of speed settings

9-stage + 2 intensive

Connectivity

Connected appliances with Home Connect

Yes

Power consumption standby/display off

0.3 W

Power consumption standby/network (Please check the user manual for how to switch off the WiFi module)

2.0 W

Time auto-standby/displ. off

20.0 min

Time auto-standby/network

20.0 min

Savety

Residual heat indicator

yes

Safety device

childproof lock, pause function, Power management function, pan recognition, Safety time-switch-off
