Technical Overview
Installation typology
Built-in
Width
52 cm
Hob-based hood control
No
Sound pressure recirculated air level 2
57 dB(A) re 1 pW
PerfectAir
No
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Max. air extraction
560 m³/h
Boost position air extraction
615 m³/h
Specifications
Width
52 cm
Colour
Stainless steel
Installation typology
Built-in
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
250 W
Type of control setting and signalling devices
Button
Number of speed settings
3-stages + intensive setting
Max. air extraction
560 m³/h
Boost position air extraction
615 m³/h
Sound power at max. speed (2010/30/EC)
67 dB
Sound power boost (2010/30/EC)
70 dB
Max. air recirculation
533 m³/h
Boost position output recirculating
581 m³/h
Sound power at max. speed (recirculation)
72 dB
Sound power boost (recirculation)
74 dB
Grease filter material
Washable aluminium
Energy efficiency class
C
Total annual energy consumption
90.2 kWh/annum
Included user manuals
[DE, FR, NL, PL, RU]

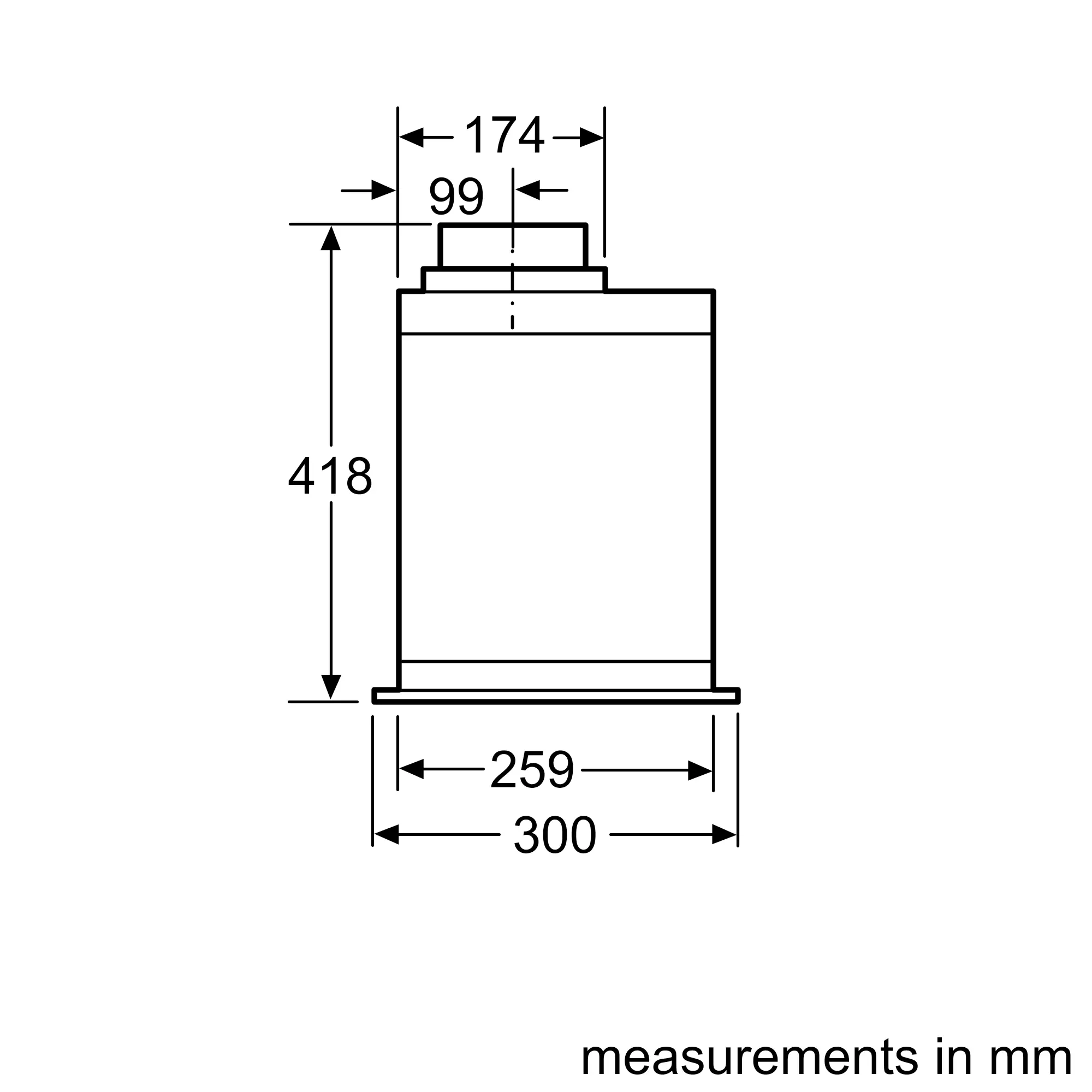

Height of the appliance
418 mm
Width of the appliance
520 mm
Depth of the product
300 mm
Dimensions of the packed product (HxWxD)
370x465x600 mm
Minimum distance above an electric hob
500 mm
Minimum distance above a gas hob
650 mm

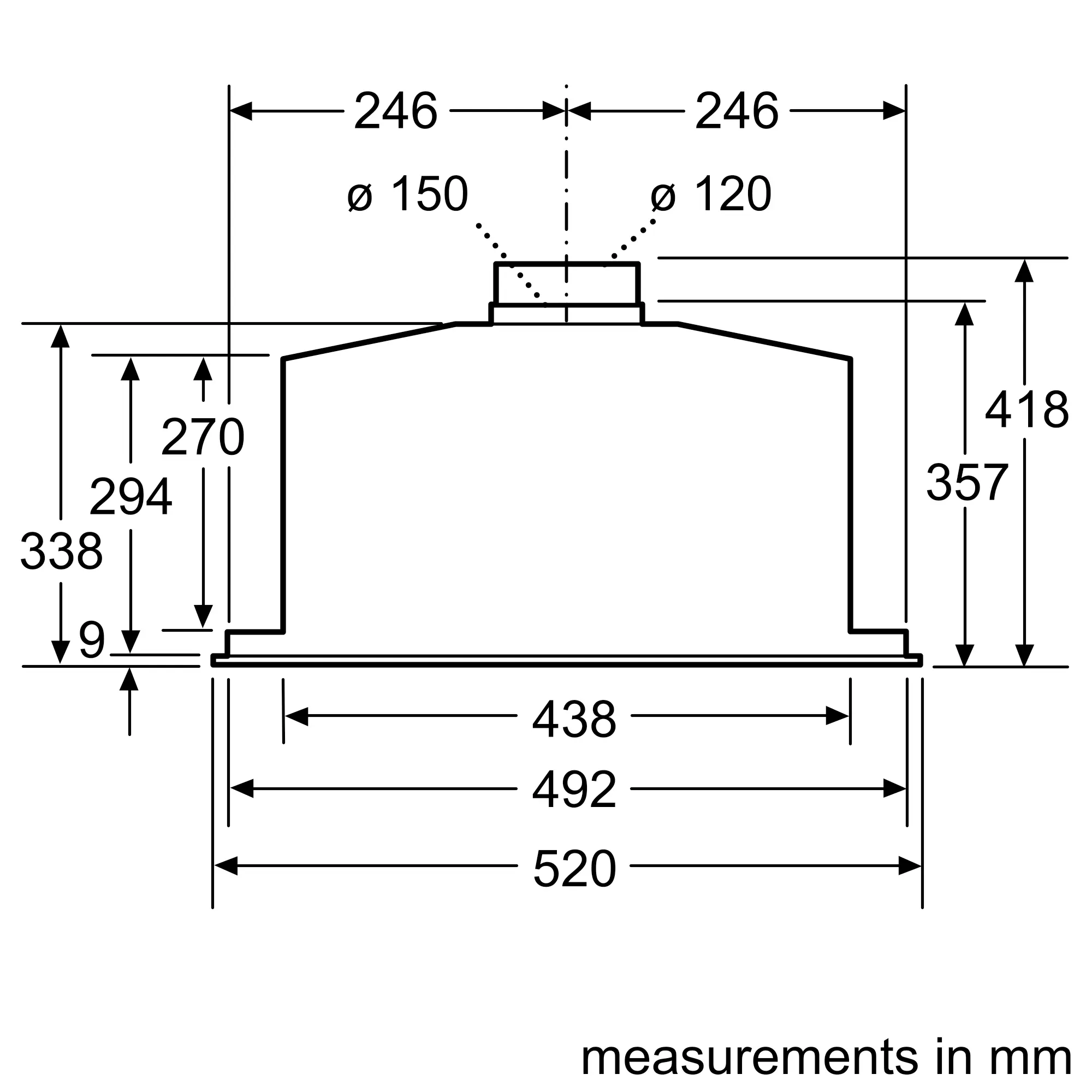

Diameter of air outlet
150 / 120 mm
No-return airflow flap
Yes
Length electrical supply cord
150 cm
Net weight
7.9 kg
Handle bar
Not applicable
Appliance height exhaust air max
418 mm
Appliance height exhaust air min
418 mm
Appliance height recirculating max
418 mm
Appliance height recirculating min
418 mm

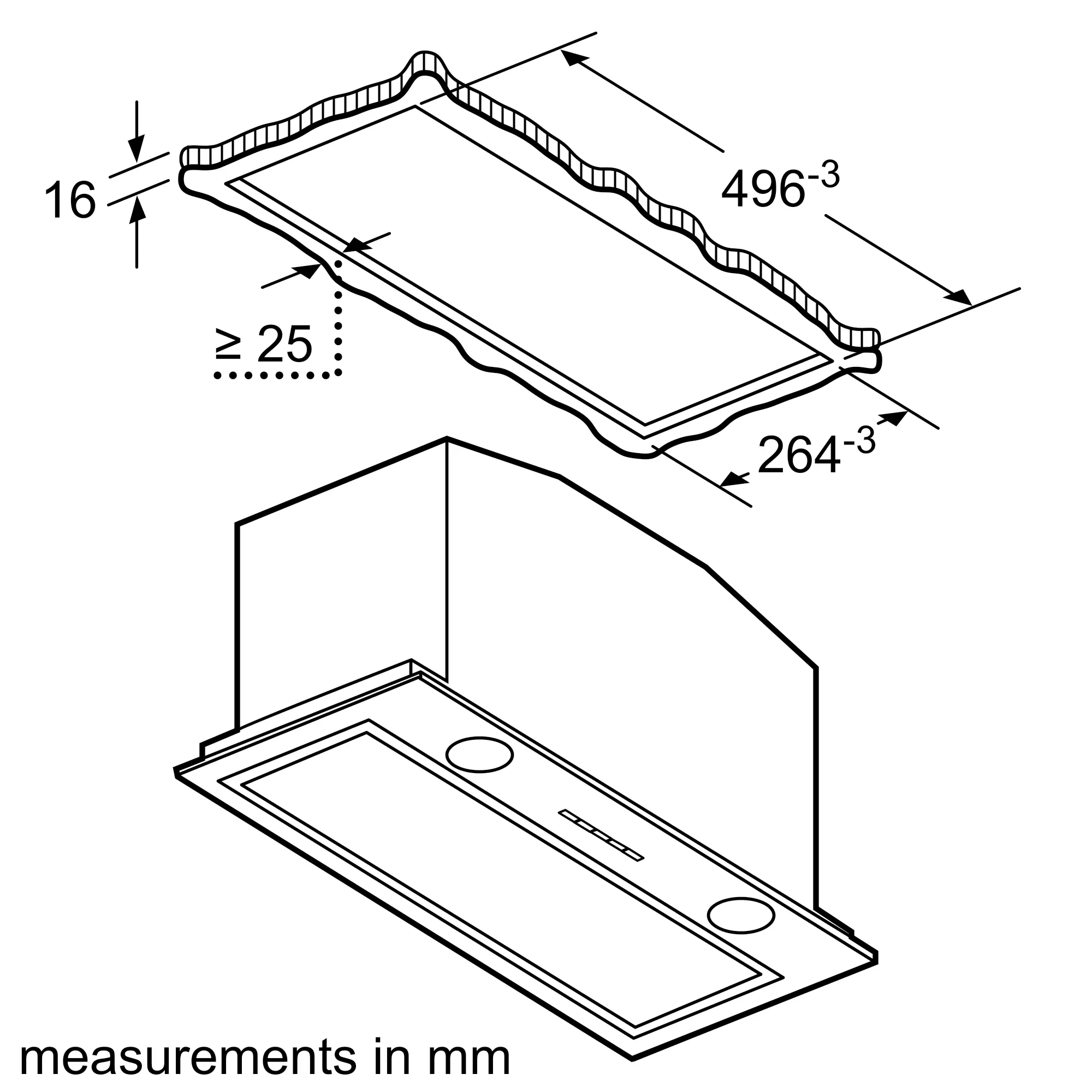

Maximum width for installation
496 mm
Minimum width for installation
496 mm
Depth for installation
264 mm
1 / 0
PerfectAir
No
Extremely quiet and powerful brushless BLDC motor
No
Extremely quiet
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
244 lux
Color temperature
Neutral (3.500 K)
Illumination type softlight
No
Light color tunable by Home Connect
No
Ambient light
No
Connected appliances with Home Connect
No
Hob-based hood control
No
Smart Hood Automatic
No
