Series 8 Glass ceramic cooktop 90 cm surface mount with frame
PKM975DK1D

1 / 0
Photo Nr. 1 of the product PKM975DK1D
Photo Nr. 2 of the product PKM975DK1D
Photo Nr. 3 of the product PKM975DK1D
Photo Nr. 4 of the product PKM975DK1D
Photo Nr. 5 of the product PKM975DK1D
Photo Nr. 6 of the product PKM975DK1D

Series 8 Glass ceramic cooktop 90 cm surface mount with frame
PKM975DK1D

Series 8 Glass ceramic cooktop 90 cm surface mount with frame
PKM975DK1D

Technical Overview

Built-in / Free-standing
Built-in
Main colour of product
Black
Type of frame
Facette fro+rear,side profiles
Power Boost
Cooking zone front right
Dimensions
44x916x527 mm
Type of control
DirectSelect Premium touch control
Connected appliances with Home Connect
No

Highlights

Awards

Visual badge of the award

Specifications

Cooktop type
Radiant cooktop
Basic surface material
Ceramic
Frame type
Design frame
Glass protect
No
Dimensions
44x916x527 mm
Dimensions of the packed product (HxWxD)
100x1130x620 mm
Width
90 cm

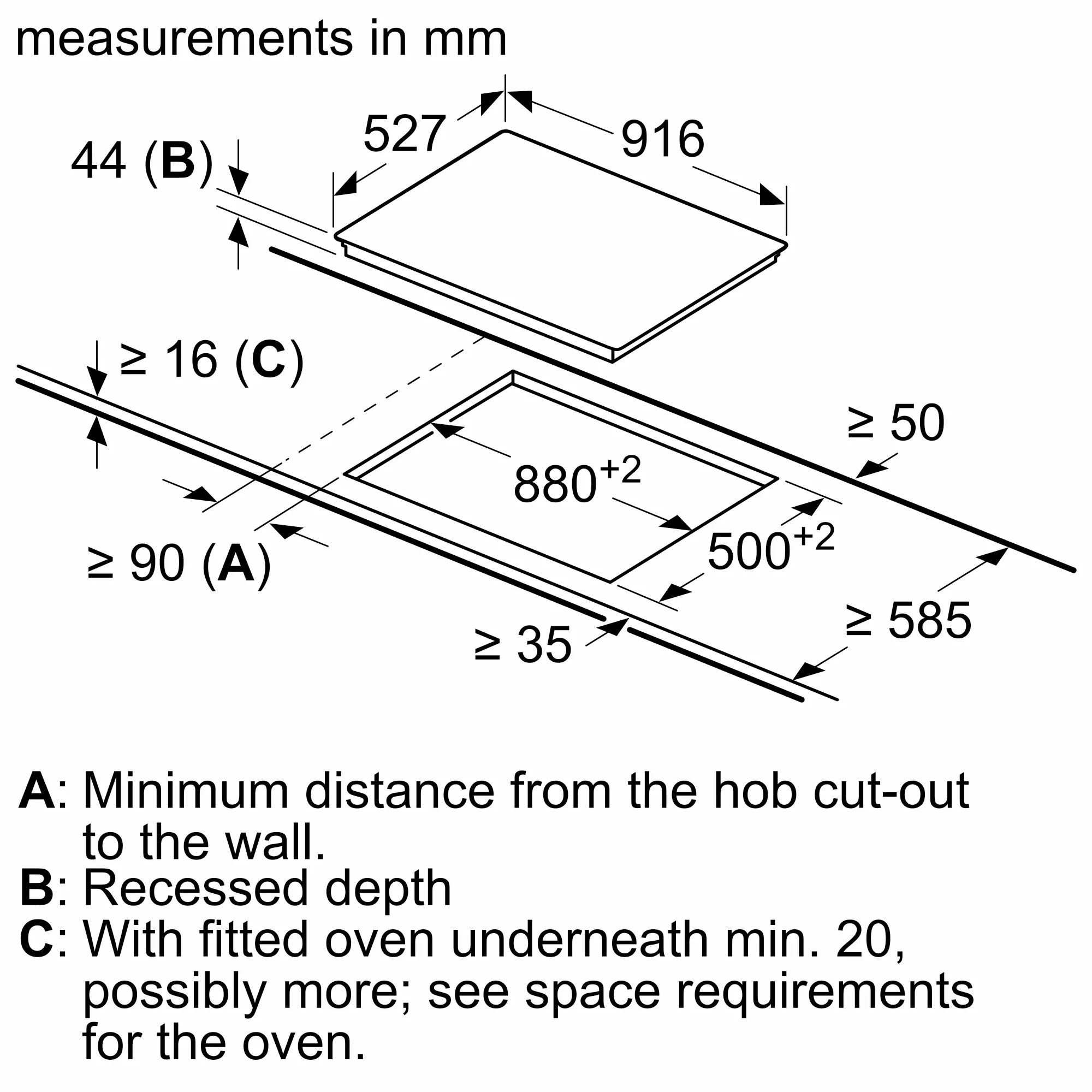

Required niche size for installation (HxWxD)
44 x 880-880 x 500-500 mm
Minimum worktop thickness
16 mm
Connection rating
10700 W
Plug type
No plug (electrical connection by electrician)
Total number of positions that can be used at the same time
5
Cooking zone flexibility
Combi Zone, Two-ring cooking zone, Triple ring zone
Dimensions of the heating elements
3 x (18,0 cm Ø), 1 x (27,5 cm Ø), 1 x (14,5 cm Ø)
Power of the heating elements (maximum values shown, depending on gas type)
1 x (2.3), 1 x 1.2, 1 x 3.1, 2 x 2.0 kW
Number of electric warming zones
0
Type of control
DirectSelect Premium touch control
Illuminated Cooking Zones
No
Glass protect
No
Favourite button
No
Number of power levels
17 power levels
Keep warm function
Yes
Timer
Switch-off timer (on appliance), Count-down timer (on appliance), Count-up timer (on appliance)
Power Boost
Cooking zone front right
Pan boost
No
Automatic boil start
No
Automatic connection/ separation of the cooking zones
No
Powermove
No
Increase/ decrease power level via Move Mode
No
Automatic Setting Transfer
No
Automatic zone selection
No
Quick Start
No
Restart
Yes
Quick switch-off
No
Energy consumption display
Yes
Find the right setting with Dish assistant
No
PerfectCook - cooking sensor
No
Avoid scorching with frying sensor
PerfectFry frying sensor
Connected appliances with Home Connect
No
Hob-based hood control
No
Residual heat indicator
yes
