Series 6 Gas cooktop 90 cm Tempered glass, BlackPPQ9B6I40M
PPQ9B6I40M
1 / 0
Series 6 Gas cooktop 90 cm Tempered glass, BlackPPQ9B6I40M
PPQ9B6I40M
Series 6 Gas cooktop 90 cm Tempered glass, BlackPPQ9B6I40M
PPQ9B6I40M
Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
5
FlameSelect
No
Frame type
Flush or surface mounted
Basic surface material
Tempered glass
Material of pan supports
Cast iron separable
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Nozzle set included for alternative gas type
Nat gas H/E/(L) 20 (25) mbar
Awards
Specifications
Basic surface material
Tempered glass
Frame type
Flush or surface mounted
Flushmount
Yes
Material of pan supports
Cast iron separable
Flat burner
No
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Nozzle set included for alternative gas type
Nat gas H/E/(L) 20 (25) mbar
Width
90 cm
Dimensions
45x915x520 mm
Dimensions of the packed product (HxWxD)
170x1110x660 mm

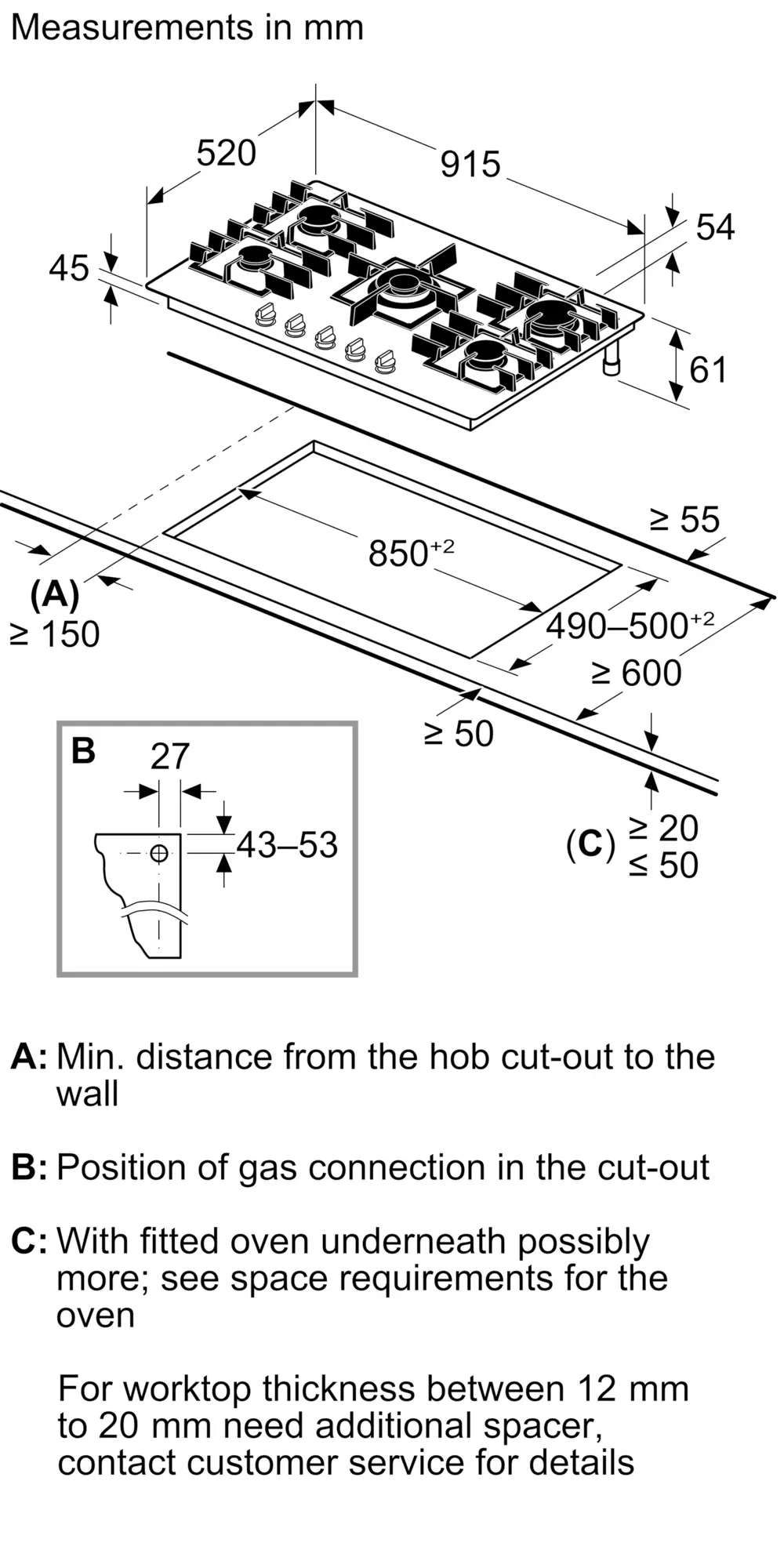

Required niche size for installation (HxWxD)
45 x 850-850 x 490-500 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
20 mm / 12 mm
Minimum worktop thickness for flush installation
30 mm
Length electrical supply cord
100 cm
Plug type
No plug (electrical connection by electrician)
Gas connection rating
11500 W
Total number of positions that can be used at the same time
5
Dual wok burner
No
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.0, 1 x 3.0, 1 x 4.0, 2 x 1.75 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
FlameSelect
No
Display
No
Dishwasher suitable pan support
Yes
Removable knobs for easy cleaning
Yes
Location of control panel
Front
Type of control setting and signalling devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Timer
Not applicable
Connected appliances with Home Connect
No
Safety device
Flame failure safety device for each burner
Residual heat indicator
No
Main on/off switch
No
