Serie | 4 Chimney extractor hood, 90 cm Inclined glass brand design black with glass canopy

DWK97HM60


Inclined hood: optimal for keeping an eye on your pots and pans.Inclined hood: optimal for keeping an eye on your pots and pans.

Additional product information

Additional product information
  • Energy Efficiency Class: A*
  • Noise max. Normal Level: 57 dB*
  • Suitable for ducted or recirculating operation
  • In recirculation operation chimless use possible
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Designed for wall mounted installation
  • touch control (3 speed + intensive operation) with Electronic display
  • Easy to clean
  • Twin channel high performance fan motor
  • 2 x 1,5W LED
  • Removable metal grease filters, dishwasher safe
  • Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 420 m³/h Intensive 680 m³/h
  • Ducted extraction rate according to DIN/EN 61591max. 420 m³/h
  • Maximum extraction 420 m3/h
  • Extraction rate exhaust air according to EN 61591:
    max. normal use 420 m³/h, intensive 680 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
    Max. normal use: 57 dB(A) re 1 pW (43 dB(A) re 20 µPa sound pressure)
    Intensive: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Extraction rate in recirculation mode:
    Max. normal use: 390 m³/h
    Intensive: 560 m³/h
  • Noise levels in recirculation mode:
    Max. normal use: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
    Intensive: 75 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)
  • Power rating: 263 W

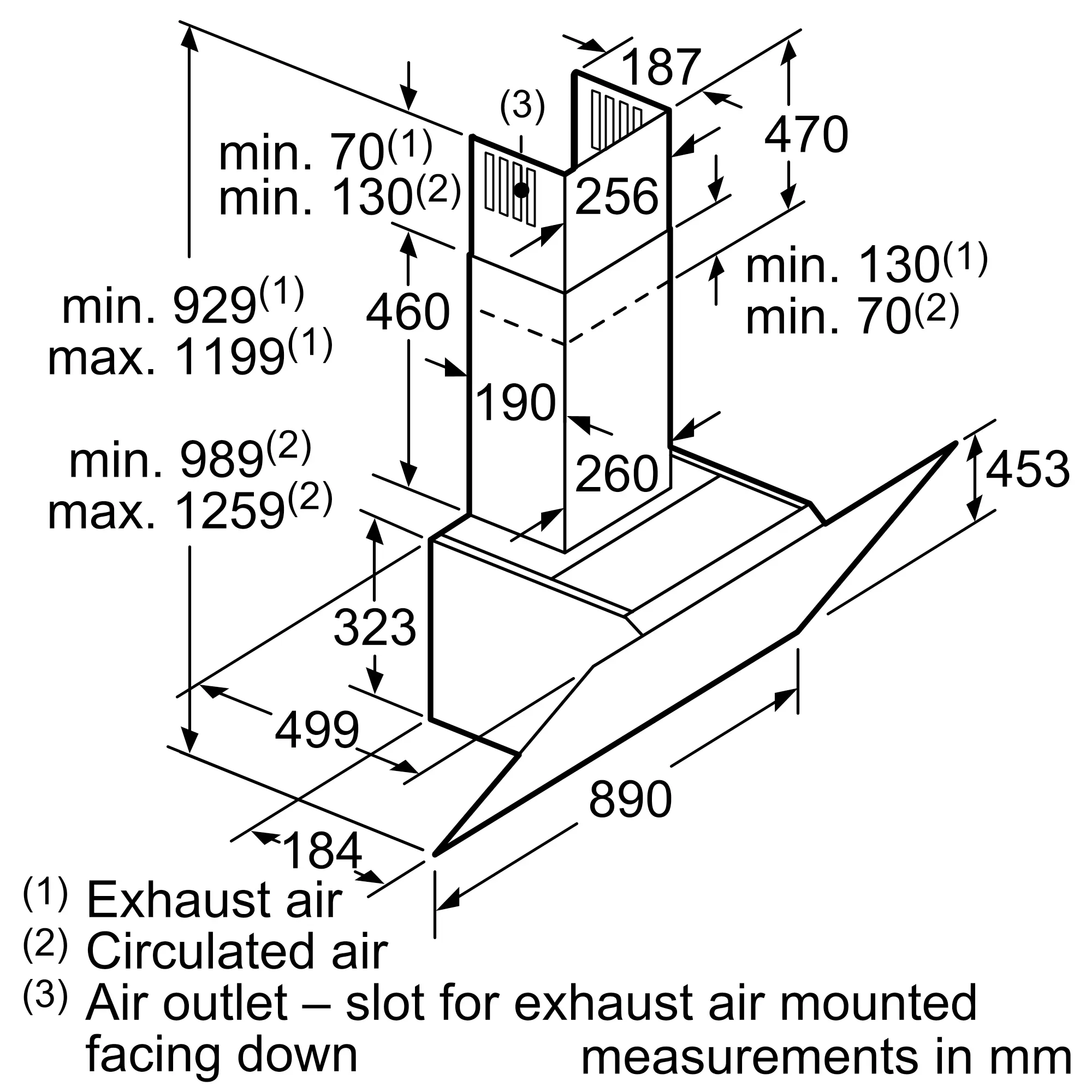

  • Dimensions exhaust air (HxWxD): 929-1199 x 890 x 499 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
    1119 x 890 x 499 mm - mounting with outer chimney
    1189-1459 x 890 x 499 mm - mounting with telescopic chimney
  • Dimensions recirculating, chimney (HxWxD): 989-1259 x 890 x 499 mm

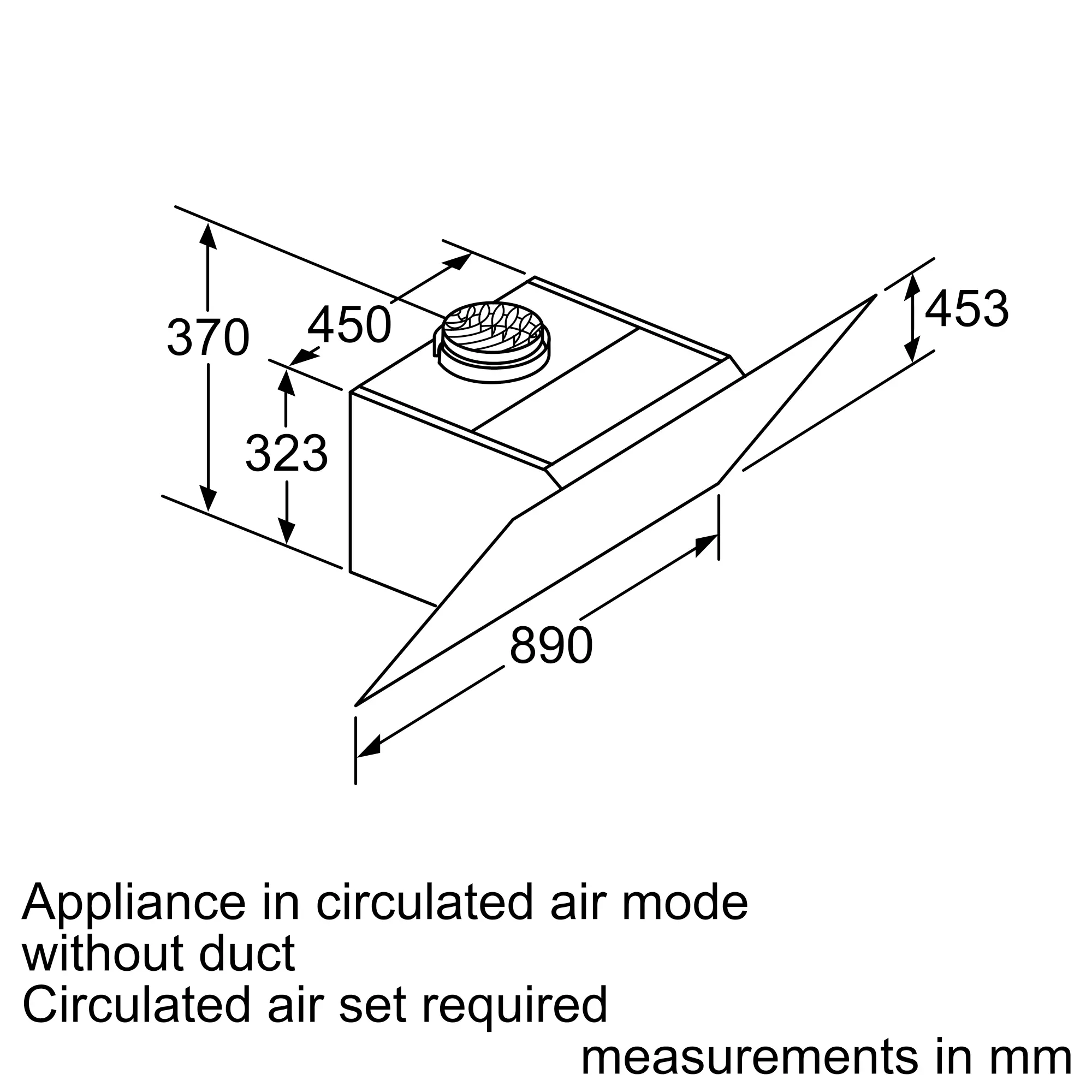

  • Dimensions recirculating, chimless (HxWxD): 453 mm x 890 x 499 mm
Additional product information
General
Width 90 cm
Depth of the product 499 mm
Construction type Built-in
Operating Mode Convertible
Max. air recirculation (m³/h) 390
Sound pressure max. normal 43
Type of control setting and signalling devices LED, touch control
Energy efficiency class A
Construction type
Diameter of air outlet (mm) 120 / 150 mm
Colour Black
Color chimney Stainless steel
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Wall-mounted
Material of the body Glass, Lacquered
Material chimney Stainless steel
Number of motors 1
Operating Mode Convertible
Typology Chimney
Connection
Connection rating (W) 263 W
Length electrical supply cord (cm) 130 cm
Frequency (Hz) 60; 50 Hz
Total power of the motors (W) 260 W
Voltage (V) 220-240 V

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

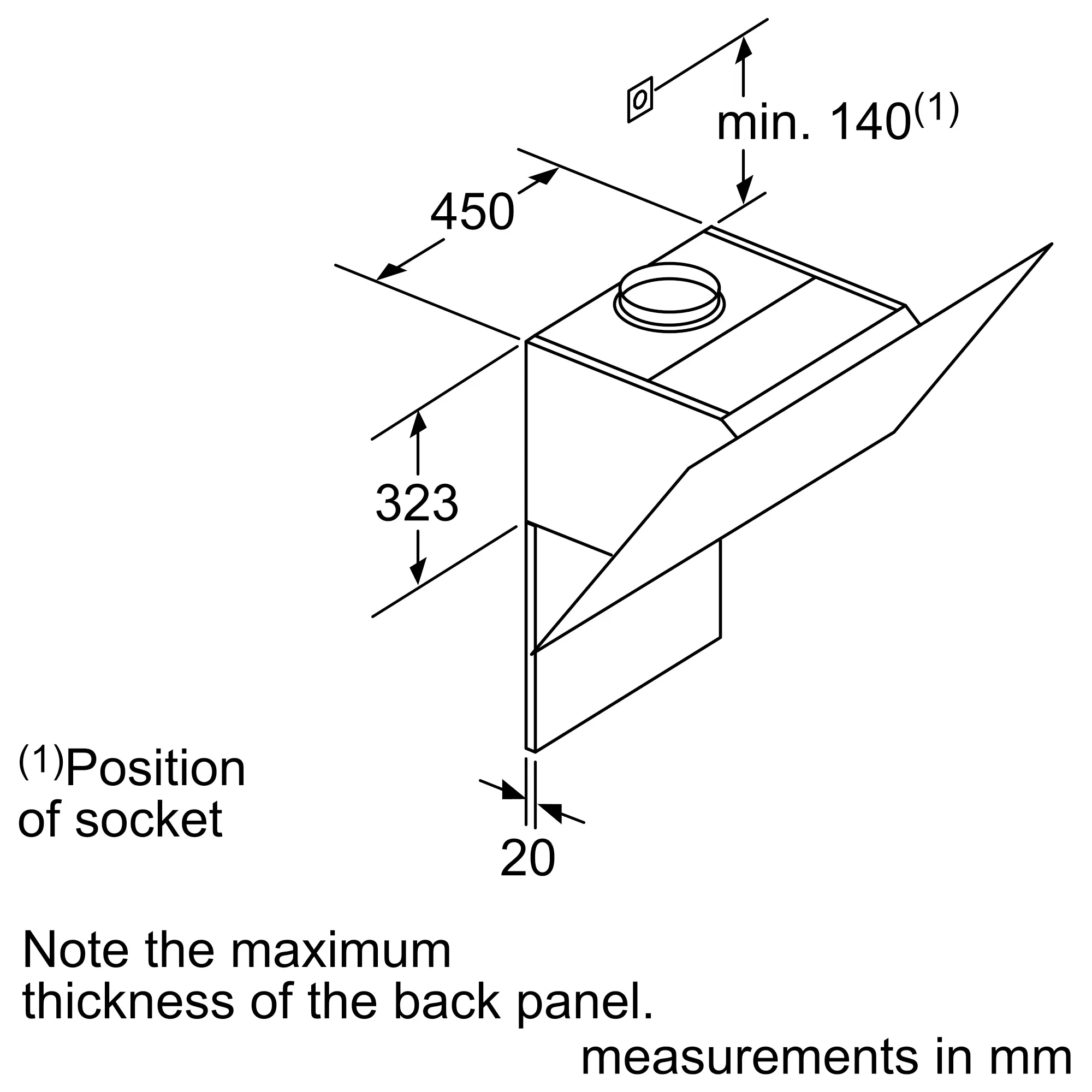

Dimensional Drawings
